ERA 600 Performance

550W LED-based profile with framing and CMY color mixing

Larger Images

Designed to fulfill the demand for a bright, compact, tour-worthy moving head, the Martin ERA 600 Performance combines a feature-loaded, rugged, yet cost-efficient profile for entertainment and rental applications.

It features a highly efficient 550W white LED engine that produces a bright, sharp 6,500K image projection with a flat field. Additional benefits include 1:8 zoom, electronic dimming and strobe, full CMY color mixing and separate color wheel, variable color temperature control, animation wheel, iris for beam adjustment and fixed and rotating gobo wheels, loaded with user-favorite gobos from the renowned Martin MAC range that include a wide variety of effects, especially when combined with the two included rotating prisms and soft frost filter.

The ERA 600 Performance includes a full curtain framing system which offers lighting designers a high degree of flexibility to achieve precise looks on stage.

Perfect for larger stage and live productions, the Martin ERA 600 Performance is ideal for a long list of scenarios, requiring a bright, yet truly versatile LED profile that offers near limitless design and usage potential.



Lighting For Live Streams

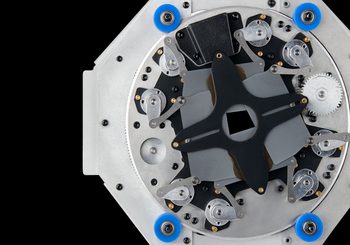

  • FULL FRAMING SYSTEM

    The full curtain framing system allows each of the four framing blades to cross the full beam independently for complete blackout. In addition, the entire framing module can rotate 120 degrees, allowing for precise and accurate image projection for the desired stage area. When fully focused, gobos can be framed with a soft edge, enabling designers a high degree of flexibility in the lighting design.

  • 550 WATT LED LIGHT SOURCE

    With an efficient 550 watt light source, the ERA 600 Performance delivers more output than similar-sized fixtures. Fully electronic dimming ensures extremely fast strobing, instant intensity control, and a flat, consistent field that can be maintained down to zero percent.

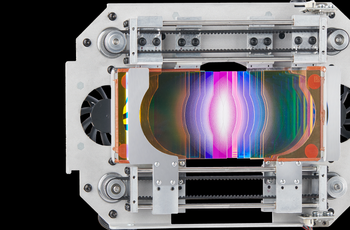

  • GREAT COLOR PALETTE

    The ERA 600 Performance features precise color temperature control with variable color temperature correction (CTO) and vibrant CMY color mixing from light and smooth pastels to rich, saturated primaries. The color wheel produces nice color splits, fast color bumps & extends overall color gamut and brightness.

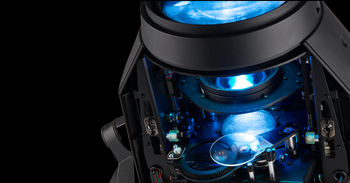

  • 1:8 ZOOM RANGE

    With 6 to 45 degrees of zoom, the ERA 600 Performance works great even on larger trim heights. Zooming is fast and accurate and maintains a high output throughout the range.

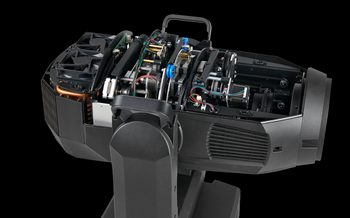

  • COMPACT AND DESIGNED FOR THE ROAD

    The ERA 600 Performance is very compact and low weight for its class, making it easy to handle and rig. The modular design makes accessing and replacing of effects safe, quick, and easy – modules can be swapped in less than a minute.

FULL FRAMING SYSTEM

The full curtain framing system allows each of the four framing blades to cross the full beam independently for complete blackout. In addition, the entire framing module can rotate 120 degrees, allowing for precise and accurate image projection for the desired stage area. When fully focused, gobos can be framed with a soft edge, enabling designers a high degree of flexibility in the lighting design.

550 WATT LED LIGHT SOURCE

With an efficient 550 watt light source, the ERA 600 Performance delivers more output than similar-sized fixtures. Fully electronic dimming ensures extremely fast strobing, instant intensity control, and a flat, consistent field that can be maintained down to zero percent.

GREAT COLOR PALETTE

The ERA 600 Performance features precise color temperature control with variable color temperature correction (CTO) and vibrant CMY color mixing from light and smooth pastels to rich, saturated primaries. The color wheel produces nice color splits, fast color bumps & extends overall color gamut and brightness.

1:8 ZOOM RANGE

With 6 to 45 degrees of zoom, the ERA 600 Performance works great even on larger trim heights. Zooming is fast and accurate and maintains a high output throughout the range.

COMPACT AND DESIGNED FOR THE ROAD

The ERA 600 Performance is very compact and low weight for its class, making it easy to handle and rig. The modular design makes accessing and replacing of effects safe, quick, and easy – modules can be swapped in less than a minute.

Videos





Features

  • Bright 550 watt / 6,500K LED light source
  • 19,000 lumen output
  • Crisp optics with flat field
  • 1:8 Fast zoom
  • CMY color mixing - Vibrant color mixing with a superior palette of colors matching the MAC range
  • Linear CTO – Daylight to tungsten CCT control and expansion of the CMY palette
  • 7-slot color wheel –for added color choice and split color effects
  • Full Curtain Framing blades with +/- 60° rotation of entire system for flexible shape generation
  • 7 rotating/indexing gobos – All renowned Martin glass gobos
  • 8 static gobos for great morphing effects
  • Animation wheel with continuous bi-directional rotation
  • Two prisms - 4-facet and linear – rotation and index control for dynamic effects
  • Heavy frost – A light frost leaves gobo artwork visible with a beautiful soft edge.
  • Compact and low weight design

Specifications

  • Physical Weight: 32.3 kg (71.3 lbs) Minimum center-to-center distance in side-by-side installation: 660 mm (26.0 in.) Length (head): 544 mm (21.5 in.) Length (base): 416 mm (16.4 in.) Width (base): 290 mm (11.4 in.) Width (across yoke): 390 mm (15.4 in.) Height (head straight up): 734 mm (28.9 in.) Height (maximum): 745 mm (29.4 in.)
    Dynamic Effects Electronic shutter effect: Strobe effect, pulse effects, instant open and blackout Electronic dimming: 0 - 100%, four dimming curve options Color mixing: CMY, independently variable 0-100% Color wheel: 7 color filters plus open Gobo animation: Animation wheel, indexing, continuous rotation with variable speed and direction Rotating gobo wheel: 7 gobos plus open, wheel rotation, gobo rotation, indexing and shake Static gobo wheel: 8 gobos plus open, wheel indexing, rotation and shake Iris: 0-100% Zoom: Motorized Color temperature control: Variable 6500 - 2700 K Framing: Rotatable framing module, +/-60°, with 4 individually controllable full framing blades with variable angle and position. Prism: 2 rotating/indexing prisms (4-facet circular prism and 6-facet linear) Frost: Heavy Frost - for wash effects Pan: 540°, coarse & fine control and speed Tilt: 260°, coarse & fine control and speed Focus: Motorized
    Control and Programming Control options: DMX 16-bit control: Dimming, CMY, CTO, Zoom, Focus, Pan and Tilt Setting and addressing: Control panel with backlit LCD display DMX channels: 41 DMX compliance: USITT DMX512/1990 RDM compliance: ANSI/ESTA E1.20 Transceiver: Opto-isolated RS-485
    Optics Front lens diameter: 120 mm (4.75 in.) Zoom range: 6° - 45° (1:7.5) Light source: 550 W LED engine Minimum LED lifetime: 20000 hours (to >70% luminous output)* *Manufacturer´s figure obtained under manufacturer´s test conditions
    Photometric Data

    Light engine luminous output: 37,000 lumens Fixture luminous output: 19,000 lumens Fixture luminous output with optional CRI Boost Filter: 13,000 lumens CRI (Color Rendering Index): >70 CRI (Color Rendering Index) with optional CRI Boost Filter: >79 CQS (Color Quality Scale): >67 CQS (Color Quality Scale) with optional CRI Boost Filter: >74TM-30 Rf (IES TM-30-15 Fidelity Index): >65 TM-30 Rf (IES TM-30-15 Fidelity Index) with optional CRI Boost Filter: >75 TM-30 Rg (IES TM-30-15 Gamut Index): >96 TM-30 Rg (IES TM-30-15 Gamut Index) with optional CRI Boost Filter: >98 TLCI (Television Lighting Consistency Index): >45 TLCI (Television Lighting Consistency Index) with optional CRI Boost Filter: >56 CCT: 6800 K (+/- 250 K) CCT with optional CRI Boost Filter: 6500 K (+/- 250 K) LED refresh rate : 3600 Hz Peak Luminous Intensity: 783,000 cd

    Construction Housing: High-impact flame-retardant thermoplastic Color: Black Protection rating: IP 20
    Gobos Maximum image diameter: 19.0 mm (0.75 in.) Gobo material: Borofloat 33 External diameter: 23.0 mm +0 / -0.2 mm (0.906 in. +0 / -0.008 in.) Maximum gobo thickness: 1.1 mm (0.04 in.) Coating: Heavy matted aluminum
    Installation Mounting points: 2 pairs of 1/4-turn points for 106 mm (4.17 in.) center-to-center omega brackets Location: Dry location only, must be fastened to surface or structure Orientation: Any Minimum distance to combustible materials: 0.2 m (8 in.) Minimum distance to illuminated surfaces: 2.0 m (6.6 ft.)
  • Connections DMX and RDM data in/out: 5-pin locking XLR AC mains power input.: Neutrik TRUE1 socket, accepts TRUE1 NAC3FX-W (TOP) connector AC mains power throughput : Neutrik TRUE1 socket, accepts TRUE1 NAC3MX-W (TOP) connector
    Electrical AC power: 100-240 VAC (nominal), 50/60 Hz Power supply unit: Auto-ranging electronic switch mode Half-cycle RMS inrush current at 230 V, 50 Hz: 21.8 A Typical power consumption, all effects static, zero light output: 64 W Maximum total power consumption: 856 W Recommended MCB (Miniature Circuit Breaker) per IEC 60898/UL489/CSA C22.2 No. 5: Type D
    Typical Power and Current 120 V, 60 Hz: 6.5A, 778W, PF 0.994 230 V, 50 Hz: 3.15A, 760W, PF 0.967
    Figures are typical, not maximum. Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%. PF = power factor
    Thermal Cooling: Forced air (temperature regulated, low noise) Maximum ambient temperature (Ta max.): 40° C Minimum ambient temperature (Ta min.): 0° C Maximum surface temperature, steady state, at 40° C ambient: 75° C (167° F) Total heat dissipation (calculated, +/- 10%): 2660 BTU/hr.
    Approvals EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493 EU EMC: EN 55015; EN 55032; EN 55035; EN 61000-3-2,-3; EN 61547 US safety: UL 1573 US EMC: FCC Part 15 Class B Canadian safety: CSA C22.2 No. 166 Canadian EMC: ICES-003 Class B, ICES-005 Class B Australia/NZ: RCM Global CB Certification/IECEE: IEC 60598-2-17 (IEC 60598-1)
    Included Items Two omega brackets with 1/4 turn fasteners for rigging clamp attachment: 2 x P/N 91602001
    Accessories

    Conversion kits
    Framing Module (converts ERA 600 Profile to Performance): P/N 5125849-00
    Gobo Wheel 3 Effects Module (converts ERA 600 Performance to Profile): P/N 5131771-00
    Optical accessories
    CRI Boost Filter (CRI >79, installs on gobo wheel): MAR-91614058
    Power input cables
    Power Input Cable, H07RN-F, 2.5 mm2, 14 AWG, bare ends to TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.) : P/N 91611797
    Power Input Cable, H07RN-F, 2.5 mm2, 14 AWG, bare ends to TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91611786
    Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91610173
    Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91610174
    Power relay cables, 16 A
    Power Relay Cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91611784
    Power Relay Cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91611785
    Power Relay Cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91611796
    Power Relay Cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91610170
    Power Relay Cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91610171
    Power Relay Cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91610172
    Power connectors
    Cable Connector, Neutrik powerCON TRUE1 NAC3FX-W TOP (female): P/N 91611789HU
    Cable Connector, Neutrik powerCON TRUE1 NAC3MX-W TOP (male): P/N 91611788HU
    Installation hardware
    G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
    Half-coupler Clamp: P/N 91602005
    Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007

    Related Items Martin™ RDM 5.5 Splitter: P/N 90758150 Martin Companion Software Suite (including firmware uploader): Free download from www.martin.com Martin Companion Cable USB/DMX hardware interface: P/N 91616091
    Ordering Information Martin ERA 600 Performance in cardboard box: P/N 9025122049 Martin ERA 600 Performance – White in cardboard box: P/N 9025122050 Flightcase, two unit, for 2 x ERA 600 Performance / Profile: P/N 91512205
