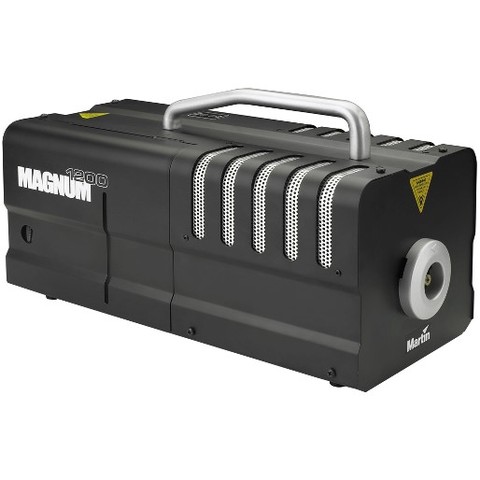

Martin Magnum 1200

Larger Images

The Magnum 1200 delivers a heavy punch of fog. It's built tough to meet the rugged demands of 24/7 nightlife.

Specifications

Physical Length: 450 mm (17.2 in.) Width: 205 mm (8.1 in.) Height: 244 mm (9.6 in.) Dry weight: 10 kg (22.1 lbs.)

Performance Max. fog output (approx.): 290 m³ per minute Max. operating time at full output (approx.): 90 minutes Operating time: Continuous, automatic level adjustment Warm-up time (approx.): 8 minutes

Control and Programming Control options: Remote control (supplied), DMX with optional DMX interface module Remote control features: Instant or timer-controlled variable output

Construction Housing: Steel & aluminum Heat exchanger: 850 W, direct thermal protection

Fluid System Fluid pump: Oscillating piston, high pressure Onboard fluid capacity: 2.3 l Fluid consumption at peak output: 50 ml per minute

Installation Orientation: Floor or flying kit

Connections Remote control: RJ-45 DMX (with optional DMX interface): 3-pin locking XLR Power cable entry: 3-pin IEC

Electrical AC power (EU models): 220-240 V nominal, 50 Hz AC power (US models): 110-120 V nominal, 60 Hz Main fuse (220-240 V power): 5 AT (slow blow) Main fuse (110-120 V power): 10 AT (slow blow)

Typical Power and Current US model: 110 V, 60 Hz: 748 W, 6.8 A 115 V, 60 Hz: 817 W, 7.1 A 120 V, 60 Hz: 890 W, 7.4 A EU model: 220 V, 50 Hz: 814 W, 3.7 A 230 V, 50 Hz: 890 W, 3.9 A 240 V, 50 Hz: 969 W, 4.04 A Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:

Thermal Maximum ambient temperature (Ta max.): 40° C Exterior surface temperature, steady state: 50° C Max. nozzle temperature: 200° C

Approvals EU safety: EN 50 081-1, EN 50 082-1 EU safety: EN 60 335-1 (1995) US safety (US model): UL Std. 60335-1

ETL US ONLY

Included Items User manual: P/N 35010023 Power cable 1.5 m IEC w/o end plug: P/N 11501012 Remote control with 5 m cable and RJ-45 connector: P/N 92765032 Container 2.3 l: P/N 34300536

Accessories Pro Smoke Super (ZR Mix) fluid Regular DJ (DJ mix) fluid DMX Interface: P/N 91612011 Hanging bracket: P/N 92610010 Ducting Kit: P/N 92625009

Ordering Information Martin Magnum 1200, 110 V: P/N 92228910 Martin Magnum 1200, 240 V: P/N 92228911

Features

Optional DMX interface
Internal remote control storage
Timer and output level remote control
Linkable - up to 4 units can be operated at the same time with one remote. DMX - unlimited channels are available
Optional flying kit
Continuous output
290 m³/min fog output
850 W heat exchanger
8 min heat-up time
2.3 liter fluid capacity
Different fluid options for different applications

Documentation

	Version	Language	Size	Uploaded
User Manual Magnum 1200 / 1800 version D, updated: Oct 22, 2020	D		739 KB	Oct 22, 2020
Bedienungsanleitung version D, updated: Oct 23, 2020	D		171 KB	Oct 23, 2020
User Manual Magnum 1200 / 1800 FRENCH version D, updated: Oct 22, 2020	D		384 KB	Oct 22, 2020
Magnum 1200 Dimensions version A, updated: Oct 22, 2020	A		4.57 MB	Oct 22, 2020
CE Compliance Magnum 1200 version A, updated: Oct 22, 2020	A		69.2 KB	Oct 22, 2020
ETL Magnum 1200/1800 ATM version A, updated: Oct 22, 2020	A		145 KB	Oct 22, 2020
Martin Heat Exchange Part Numbers version B, updated: Oct 22, 2020	B		116 KB	Oct 22, 2020
