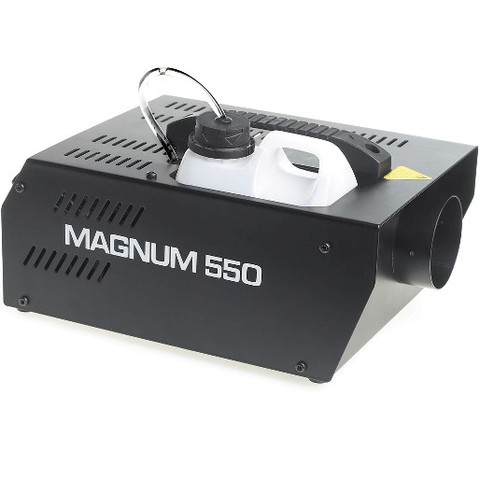

Magnum 550 (discontinued)

Larger Images

The Magnum 550 fog machine provides users with a perfect boost of dense white fog to enhance every light effect. Its fast heat-up time and extended operational period make the Magnum 550 the clear leader in its class.

Features

  • Hand-held remote control
  • 160 m³/min fog output
  • 600 W heat exchanger
  • 5 min heat-up time
  • 1 liter fluid capacity
  • Different fluid options for different applications

Specifications

Physical Length: 310 mm Width: 215 mm Height: 130 mm Dry weight: 4.6 kg
Performance Max. fog output (approx.): 160 m3 per minute Max. operating time at full output (approx.): 47 minutes Warm-up time (approx.): 5 minutes
Control and Programming Control options: Remote control (supplied) Remote control features: Manual switch
Construction Housing: Steel & aluminum Heat exchanger: 600 W, direct thermal protection
Fluid System Fluid pump: Oscillating piston, high pressure Onboard fluid capacity: 1 l Fluid consumption at peak output: 23 ml per minute
Installation Orientation: Floor
Connections Remote control: Hard-wired Power connection: 3-pin IEC male socket
Electrical AC power (EU models): 220-240 V nominal, 50 Hz AC power (US models): 110-120 V nominal, 60 Hz Main fuse (220-240 V power): 5 AT (slow blow) Main fuse (110-120 V power): 10 AT (slow blow)
Typical Power and Current 120 V, 60 Hz: 761 W, 6.34 A EU model: 220 V, 50 Hz: 537 W, 2.44 A 230 V, 50 Hz: 587 W, 2.55 A 240 V, 50 Hz: 640 W, 2.66 A Measurements made at nominal voltage. Allow for a deviation of +/- 10%.: US model: 110 V, 60 Hz: 640 W, 5.81 A 115 V, 60 Hz: 699 W, 6.08A
Thermal Maximum ambient temperature (Ta max.): 40° C Exterior surface temperature, steady state: 50° C Max. nozzle temperature: 200° C
Approvals EU safety: EN 50 081-1, EN 50 082-1 EU safety: EN 60 335-1 (1995)
CE
Included Items User manual: 35010013 Power cable 1.5 m IEC w/o end plug: 11501012 Hardwired remote control (new machine): 5m Hardwired Remote control (older machine) 5 m: 92765017 Container 1 l: 34300001
Accessories Pro Smoke Studio (DX Mix) fluid: Pro Smoke Super (ZR Mix) fluid: Pro Smoke Super (Fragranced) fluid: Pro Smoke High Density (SP Mix) fluid: I-fog fluid: Ducting Kit incl. adapter and 5 m of 4-inch (104mm) ducting: 92625005
Ordering Information Martin Magnum 550, 110 V: 92228710 Martin Magnum 550, 240 V: 92228610

Downloads

  Version Language Size Uploaded
Manuals
User Manual (After 12/06)
en version B, updated: May 11, 2018
en  46 KB May 11, 2018
User manual
en version A, updated: May 18, 2018
en  43.4 KB May 18, 2018
Illustrations
Dimensions
en version A, updated: May 18, 2018
en  151 KB May 18, 2018
Compliances
EC Compliance Magnum 550
en version A, updated: May 11, 2018
en  21.6 KB May 11, 2018
Parts
Martin Heat Exchange Part Numbers
en version B, updated: May 11, 2018
en  116 KB May 11, 2018
Service Notes
Thermocouple colour changes
en version A, updated: May 22, 2018
en    May 22, 2018
