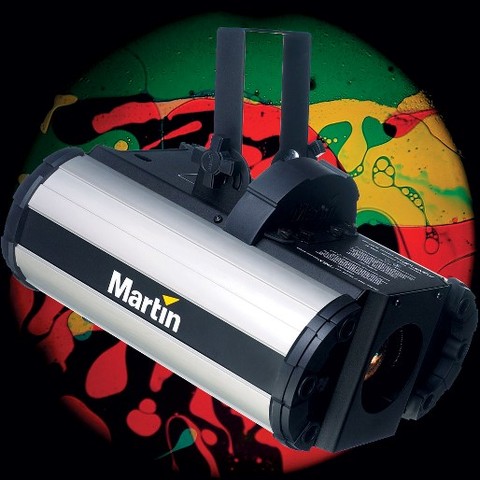

Mania DC3 (discontinued)

Larger Images

The Mania DC3 is a decoration tool which projects sensational oil wheel images and creates psychedelic decoration effects at any show, club or party.

Features

  • 250 W halogen lamp
  • 1000 hour lamp included
  • 3 different colored oil wheels available
  • Rotating oil wheel decoration effect
  • Manual focus
  • 25° or 32° spread angle (optional 43°)
  • Variable focus, variable effect rotation speed, rotating direction control with or without remote ctrl.
  • Continuous operation - no cool down time needed
  • Gobo slot for special framing or gobo effects
  • All major safety approvals CE, ETL and CETL
  • Rigorously tested for total reliability

Specifications

Physical Length: 340 mm (13.4 in.) Width: 290 mm (11.5 in.) Height: 215 mm (8.5 in.) Weight: 9 kg (19.9 lbs.)
Dynamic Effects Beam effects: Multi-colored rotating oil wheel, slot for static gobo or filter
Control and Programming Control options: Onboard or remote control Oil wheel control: Variable direction and speed Remote control unit: 4-fixture control with up to 10 m between fixtures
Lamp Type: 250 W, 24 V EVC/FGX halogen Fitted as standard: Philips 6958/10H 250 W (1000 hrs.) Socket: GZ 6.35
Optics Beam angle: 25°, configurable to 32° with supplied spacer ring or 43° with converter accessory Manual focus: 2 m - 20 m
Construction Housing: Steel and aluminum Color/texture filter (diameter, thickness): 53.3 mm, 1.1 - 2 mm
Gobos Size: D Maximum image diameter: 38 mm
Installation Mounting points: Adjustable mounting bracket Orientation: Standing or hanging, mounting bracket facing up
Connections AC power input: 3-pin IEC male socket Remote control in/out: RJ-45
Electrical AC power: 115-120/220-240 V, 50/60 Hz, switch-selectable Main fuse: 3.15 AT (slow blow)
Typical Power and Current 115 V, 60 Hz: 262 W, 2.3 A 120 V, 60 Hz: 281 W, 2.3 A 220 V, 50 Hz: 247 W, 1.1 A 230 V, 50 Hz: 265 W, 1.1 A 240 V, 50 Hz: 284 W, 1.2 A Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:
Thermal Cooling: Forced air Maximum ambient temperature (Ta max.): 40° C Maximum surface temperature, steady state, Ta=40° C: 95° C Total heat dissipation (calculated, +/- 10%): 970 BTU/hr.
Approvals US safety: UL 1573 Canadian safety: CSA C22.2 No. 166 EU safety: EN 60598-2-17 + Corr. A2 EU EMC: EN 55 015, EN 55 103-1, EN 61 547
CE ETL C US Intertek
Included Items Philips 6958 10H 24 V, 250 W 1000 hour lamp: 97000115 Adjustable mounting bracket: 23811330 Standard red/blue/yellow oil wheel: 91611219 Framing gobos set, DC3: 91611218 32° beam angle lens spacer ring: 17200957 Remote control, DC3: 55430313 5 m UTP cable, RJ-45, for remote control: 11840095 2 m US power cable, 3 x 18 AWG, with UL approved US power plug (US model): 11501501 3 m EU power cable, 3 x 1 mm2, IEC, Schuko mains plug (EU model): 11501017 3 m EU power cable, 3 x 1 mm2, IEC, no mains plug (EU model): 11501013 White glove with Martin logo: 50590002 2 mm Allen key: 50520612 User manual: 35000156
Accessories Oil wheel 1: standard red/blue/yellow: 91611219 Oil wheel 2: red/yellow: 91611220 Oil wheel 3: blue: 91611225 43° beam angle converter kit: 91610074 UTP patch cable, 5 m, RJ-45: 11840095 Half-coupler clamp: 91602005
Spare Parts Philips 6958 10H 24 V, 250 W 1000 hour lamp: 97000115 3.15 AT main fuse: 05020043
Ordering Information Mania DC3, US model: 90430071 Mania DC3, EU model: 90430070
