Martin Exterior Dot-1 Pro

صور أكبر

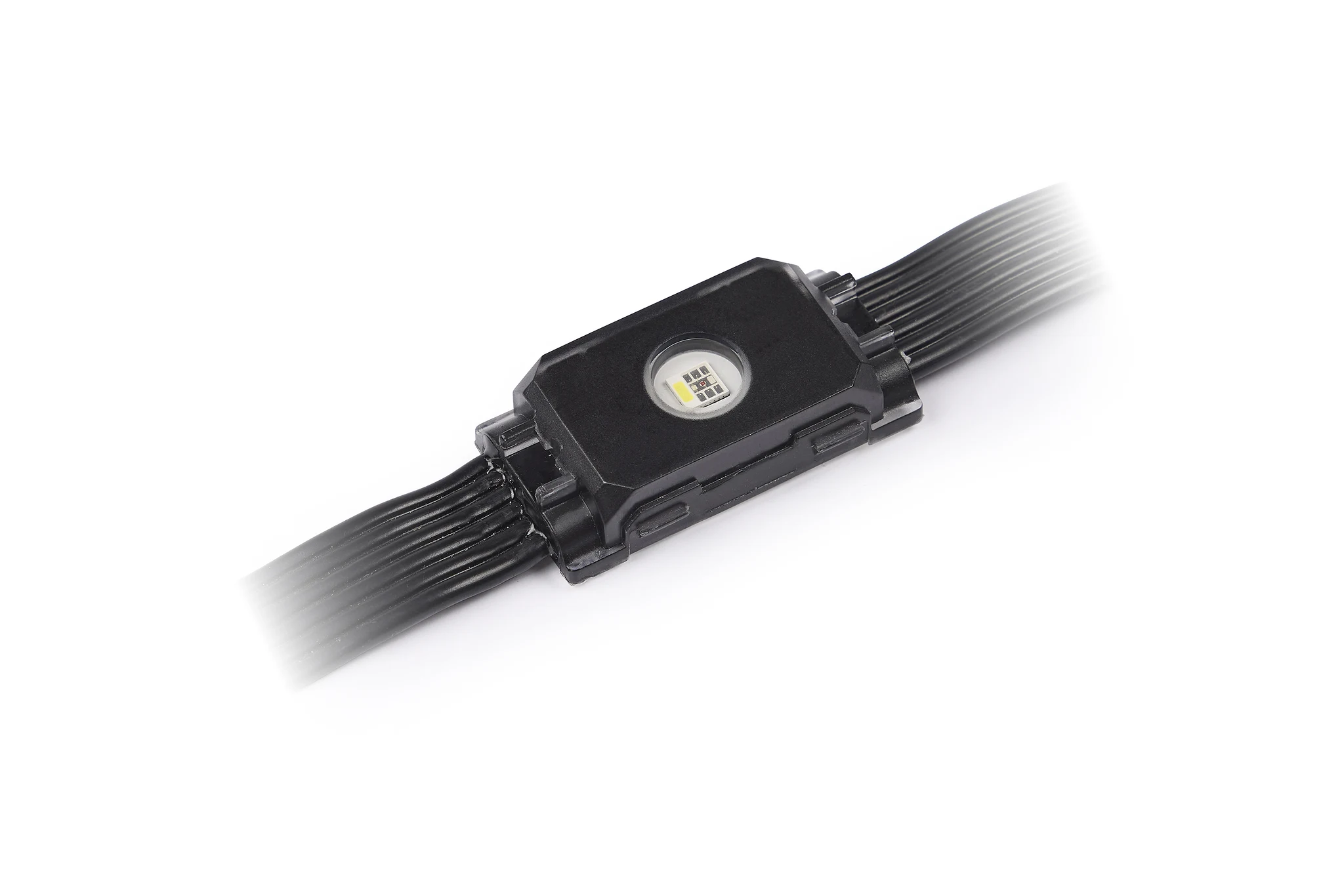

The Martin Exterior Dot-1 Pro is a lightweight string of individually-controllable RGBW-based Dots, useful in creating customized LED video solutions with maximum artistic flexibility and minimal effort. Each Exterior Dot is color- and brightness-calibrated for superior visual consistency across the entire installation. Exterior Dot-1 Pro is controllable via Martin P3 System Controllers or any sACN or Art-Net-based controller.

It is the perfect solution for integrating LED video technology into façades, landmarks, architectural elements or any other structure, indoors or out. Exterior Dot-1 Pro strings are fully configurable in terms of number of dots, pixel pitch, and length of lead-in cable for perfect integration into architectural elements.

Mapping video onto Exterior Dots is quick and intuitive via the P3 System Controller, eliminating the need for complex setups and time-consuming addressing. Each Exterior Dot-1 Pro includes one RGBW LED with a total luminous intensity of 5 candela.

Unifying unparalleled performance, adaptability, and intuitive operation, the Exterior Dot Pro family doesn’t just enable lighting designers and professionals to surpass the limitations of traditional systems, it inspires them to redefine the boundaries of creative video design.

الفيديوهات

الميزات

Flexible, string-based, direct-view LED lighting
Powered via Exterior AC-Feeder or Exterior DC-Feeder
Fully-weatherized housing (IP67, IK08 and C-5 High corrosion rating)
Martin P3/Art-Net/sACN compatible (automatic protocol detection)
Setup and Addressing via RDM over Art-Net or Martin P3
Real-time status feedback via RDM over Art-Net and Martin P3
Individually-controllable RGBW Dots
Color boost for bright, saturated, and mixed colors
Dedicated color temperature control channel
In-built Effect Macros (FX) for easy creation of stunning looks
Up to 100 Dots per string
Reduced power mode for cost-effective systems
Configurable number of dots, pixel pitch, and lead-in cable
Superior color and brightness consistency based on factory calibration
Stand-alone programming with up to 20 scenes
Intuitive mapping and addressing via P3 System Controller family
Smart accessories such as diffused dome and glare shield
Easy and safe mounting options using brackets or profiles
Hot-pluggable string connector
Shipped in FSC-certified carboard packaging
5-year warranty

المواصفات

Physical Pixel dimensions: 45 x 24.8 x 11.2 mm (1.77 x 0.98 x 0.44 in.) Pixel dimensions with dome: 45 mm x 25 mm x 22.2 mm (1.77 x 0.98 x 0.87 in.) Weight: 2.48 kg (5.47 lbs.) for 100 Dots, 115 mm (4.52 in.) spacing, with 2 m (6.6 ft.) lead- in cable and connector Maximum number of pixels per string: 100 Standard pixel spacing (pitch): 115 mm (4.52 in.) Minimum pixel spacing (pitch): 115 mm (4.52 in.) Maximum pixel spacing (pitch): 2000 mm (48.8 in.) Maximum lead-in cable length: 5 m (196.9 in.)
**Up to 10 m using Active Lead-In Cable Extender

Control and Programming Control resolution: 16-bit (P3) or 8-bit (DMX) control of each color Control Protocols: Martin P3, Art-Net or sACN Protocol detection: Automatic DMX Modes: Standard, Extended, Raw, PixelMap (6 pixel modes) DMX channels: 6, 12, 4, 3, 21, 39 ,75, 150, 300 RDM compliance: ANSI/ESTA E1.20 Art-Net Compliance: Art-Net 1, 2, 3 and 4; including RDM over Art-Net sACN Compliance: ANSI E1.31 – 2016 Martin P3 Compliance: P3 System Controller Software 6.1.0 or newer

Optics Light source: 1 RGBW LED Minimum LED lifetime: 100,000 hours (to >70% luminous output) * LED manufacturer: Lumileds Binning: Tight color and flux binning Calibration: Full Gamut Pixel Calibration
*Figure obtained under manufacturer's test conditions at Ta = 25° C

Photometric Data Viewing angle: 140° Viewing angle with dome: 180° Cut-off angle: 100°

LUMINOUS INTENSITY Full@6500K: 7 cd (clear front), 1.5 cd (diffused dome)

LUMINOUS OUTPUT* Full@6500K: 18 lm (clear front), 7 lm (diffused dome) Red: 6 lm (clear front), 2.5 lm (diffused dome) Green: 18 lm (clear front), 6 lm (diffused dome) Blue: 4 lm (clear front), 1.5 lm (diffused dome)
*All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.

Construction Dot: Clear polycarbonate, black silicone filled Diffuser dome: White translucent polycarbonate Interconnecting cable: 6 x 20 AWG, black Minimum cable bend radius: 15 mm (0.59 in.) Protection rating: IP67 Corrosion resistance: C5 High (ISO 12944-6) Vibration resistance: 1.0g, Sinusoidal (IEC 60068-2-6), 0,7g RMS Random (IEC 60068-2-64), 3.0g (ANSI C136-31)

Installation Mounting points: Mounting bracket, mounting profile, four integrated mounting holes for cable ties Orientation: Any
Connections Power & data input to string from Feeder: Custom 8-pin connector, IP67-rated.

Electrical Power and data converter: Exterior AC-Feeder or Exterior DC- Feeder Operating voltage: 15 VDC

Power Consumption Maximum Power Consumption:
1.0 W per Dot @ Full power mode
0.5 W per Dot @ Half power mode
Typical: 0.33 W per Dot Idle: refer to Exterior Feeder
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%. Idle: all LEDs at zero intensity Max at full intensity, full white, Typical at video content, Idle at zero intensity

Thermal Cooling: Convection Maximum ambient temperature (Ta max.): 55° C (131° F) Minimum ambient temperature (Ta min.): -30° C (-22° F) Peak heat dissipation (calculated, at full intensity, full white): 3.4 BTU/hr. Typical heat dissipation (calculated, with typical video content): 1.4 BTU/hr*
*Figures for typical video content are indicative only and will vary.

Environmental RoHS: Compliant REACH: Compliant WEEE: Compliant Proposition 65: Compliant Packaging: FSC certified cardboard inlay and outer packaging Efficacy (max output): 18 lm/W LWR = Lumen-to-Weight Ratio: 604 lm/kg (274 lm/lb))

Approvals Global CB Certification/IECEE: EC 62368-1 EU safety: EN62638-1 EU EMC: EN 55032, EN55035, EN 61000-3-2, EN 61000-3-3 US safety: UL 62638-1 US EMC: 47 CFR Part 15 Class A Canadian safety: CSA C22.2 No. 60238-1 Australia/NZ: RCM United Kingdom: UKCA India: BIS IS 10322 (Part5/section7)

Related Items Exterior AC-Feeder: P/N MAR-90580003 Exterior DC-Feeder: P/N MAR-90580004 Martin P3 PowerPort 2000: P/N MAR-90721200 Martin P3 PowerPort 500 IP Rental: P/N MAR-90721201 Martin P3 PowerPort 500 IP Install: P/N MAR-90721202 Martin DCE PSU 240 IP: P/N MAR-90721203 DCE DataSplitterBooster IP: P/N MAR-90721204 Martin P3-175 System Controller: P/N MAR-90721100 Martin P3-275 System Controller: P/N MAR-90721101 Martin P3-PC System Controller: Free download from martin.com Martin Companion Software: Free download from martin.com

Accessories Glare kit Dot-1 Pro, grey, set of 10: P/N MAR-90580005 Glare kit Dot-1 Pro, black, set of 10: P/N MAR-90580029 Dome kit Dot-1 Pro, grey, set of 10: P/N MAR-90580011 Dome kit Dot-1 Pro, black, set of 10: P/N MAR-90580014 Mnt bracket Dot-1 Pro, grey, set of 10: P/N MAR-90580008 Mnt bracket Dot-1 Pro, black, set of 10: P/N MAR-90580032 Mounting profile Dot-1 Pro, 2 meter: P/N MAR-90580017 End cap mounting profile Dot-1 Pro, set of 2: P/N MAR-90580026 Loose ribbon cable (10 meter): P/N MAR-90580022 Active Lead-In Cable Extender (5 meter): P/N MAR-90580023 Double string cable adapter: P/N MAR-90580024 String termination cap – set of 2: P/N MAR-90580021 Splice connector – set of 3: P/N MAR-90580020 Exterior Multitool : P/N MAR-90590025

Ordering Information Exterior Dot-1 Pro, 115mm, 100pcs, 2m lead: P/N MAR-90580000 Other configurations available upon request - minimum quantity: 800 dots
