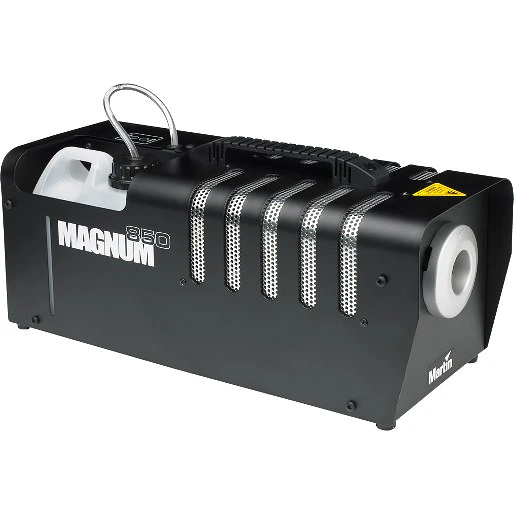

Martin Magnum 850

Større billeder

Magnum 850 er den perfekte diskomaskine til små natklubber, mobile DJ'er og band. Kompakt og let, den tilbyder betydelige besparelser på omkostninger og vedligeholdelse over en lang driftsperiode.

Funktioner

Håndholdt fjernbetjening
Timer-fjernbetjening (valgfri)
Kontinuerlig output
200 m³/min tågeoutput
Kabinet: Stål og aluminium
Koblingsbar - op til 4 enheder kan betjenes samtidigt med en fjernbetjening
750 W varmeveksler
8 minutter opvarmingstid
1 liter væskekapacitet
Forskellige væskemuligheder til forskellige anvendelser

Flere detaljer

Physical Length: 409 mm Width: 165 mm Height: 186 mm Dry weight: 9.9 kg

Performance Max. fog output (approx.): 200 m³ per minute Max. operating time at full output (approx.): 80 minutes Operating time: Continuous, automatic level adjustment Warm-up time (approx.): 8 minutes

Control and Programming Control options: Remote control (supplied) Remote control features: Manual switch

Construction Housing: Steel & aluminum Heat exchanger: 750 W, direct thermal protection

Fluid System Fluid pump: Oscillating piston, high pressure Onboard fluid capacity: 1 l Fluid consumption at peak output: 35 ml per minute

Installation Orientation: Floor

Connections Remote control: RJ-45 Power connection: 3-pin IEC male socket

Electrical AC power (EU models): 220-240 V nominal, 50 Hz AC power (US models): 110-120 V nominal, 60 Hz Main fuse (220-240 V power): 6.3 AT (slow blow) Main fuse (110-120 V power): 10 AT (slow blow)

Typical Power and Current US model: 120 V, 60 Hz: 790 W, 6.6 A EU model: 240 V, 50 Hz: 790 W, 3.4 A Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:

Thermal Maximum ambient temperature (Ta max.): 40° C Exterior surface temperature, steady state: 40° C Max. nozzle temperature: 200° C

Approvals EU safety: EN 50 081-1, EN 50 082-1 EU safety: EN 60 335-1 (1995) US safety: UL Std. 60335-1

ETL US ONLY

Included Items User manual: 35010029 Remote control: 92765030 Power cable 1.5 m IEC w/o end plug: 11501012 Container 1 l: 34300001

Accessories Pro Smoke Super (ZR Mix) fluid: Regular DJ (DJ mix) fluid: Timer Remote (Mag 850): 92765032

Ordering Information Martin Magnum 850, 110 V: 92229110 Martin Magnum 850, 240 V: 92229111

Downloads

Manuals

	Version	Sprog	Størrelse	Uploadet
User Manual (650 & 850) version G, opdateret: okt 2020	G		916 kB	okt 2020
Manuel d´utilisation (650 & 850) version G, opdateret: okt 2020	G		886 kB	okt 2020

Illustrations

	Version	Sprog	Størrelse	Uploadet
Dimensions - PDF version A, opdateret: okt 2020	A		115 kB	okt 2020
Dimensions - DXF version A, opdateret: okt 2020	A		5 MB	okt 2020
