Martin M1

Larger Images

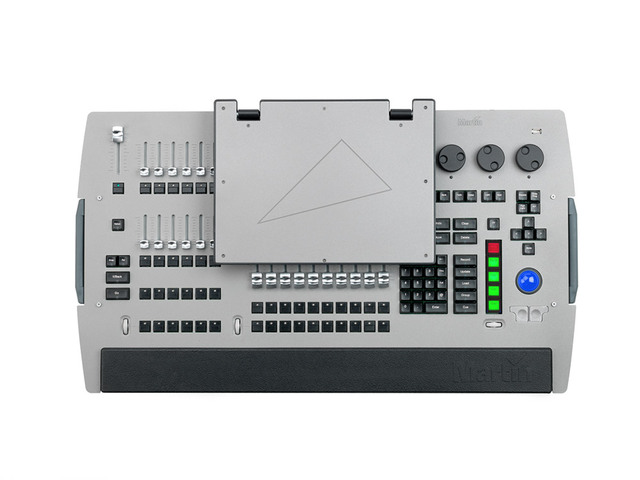

M1 is the next generation lighting controller from Martin Professional. With the full power of a larger desk and the agility of a smaller one, the M1 is a state-of-the-art, all-in-one lighting desk.

Following the philosophy and simplicity of our current controller platform, the Martin M1 sets a new standard as the most powerful and affordable full-featured lighting console on the market.

All-in-one solution
Folding Touchscreen
34 playbacks

Videos

Features

High resolution folding touchscreen
Digital LCD buttons for fast and direct parameter access
Multiple wing attachment (M-Series Modules)
4x DMX Universes direct from the console; up to 32 Universes with Art-Net /sACN
M-Series Manager Software for programming and triggering via time and calendar schedules
Customizable Graphical User Interface with context sensitive toolbars and integrated help menu
Powerful effects engine
Controls up to 16.536 parameters
1000 cuelists with fader control
1000 cuelists with playback control buttons
Two separate playback sections
Parallel execution of multiple cuelists
Submaster, inhibitives and override functionality
Parameter and time-fanning functionality
Auto update for presets and cues
On-the-fly global timing adjustments

Specifications

Physical Length: 823 mm (32.4 in.) Width: 464 mm (18.3 in.) Height: 178 mm (7.0 in.) closed; 395 mm (15.6 in.) open Weight: 14.4 kg (31.8 lbs.) Shipping weight (in cardboard box): 19.9 kg (43.9 lbs.) Shipping weight (in flightcase): 32.7 kg (72.1 lbs.)

Control and Programming Protocol: DMX512A (RDM), Art-Net2, sACN 32 DMX universes 8192 parameters No limit to number of DMX channels per fixture Extensive fixture library for all known manufacturers 65000 presets for each group of functions (P/T, color, gobo, etc.) Effect generator for automated programming of complex effects Relative or absolute programming Fan function for all channels (including timing parameters) On-the-fly global timing changes Virtual cuelists Macros Wait, follow and link cues HTP, LTP, chase, timecode, submaster and group master playback functionality Individual parameter timings Intuitive patch feature Fixture type cloning All channels with 16-bit resolution

Control/User Interface Main playback: 10 x 60 mm playback faders, each with four function-assignable buttons Sub playback: 24 x playbacks 12 x 40 mm playback faders with one assignable button 12 x single assignable buttons Other controls: 2 x scrollwheels for bank changes 12 x customizable multi-function keys Playback Select button Master Go section with Go, Pause, Snap and Release Four digital rotary encoders with push function and status LED for fixture parameter control 5 x dynamically labeled digital LCD buttons for parameter groups, effect parameters, fanning and global timings Grand master fader and button Blind/preview button Customizable highlight/lowlight function Customizable parameter defaults Next/last fixtures/groups Trackball with pan/tilt control switch Left/right mouse button Large command keys Optional external monitor screen: Resolution up to 1920x1200

Playback Assign a cue, cuelist or effect to any playback fader 100 x playback banks, each containing 10 x playbacks 100 x sub playback banks, each containing 24 x playbacks 100 x sub playback banks, each containing 24 x playbacks No limit to cues per cuelist Full 16-bit fading for high-resolution fixtures Individual fade in/fade out times for all playbacks Manual override available at all times Live 0-1000% override of global cue timings Live programmer timing (“Sneak”) Cuelists can be executed in tracking or non-tracking mode

Hardware Industrial 13.1-inch TFT 16:9 touchscreen (1280 x 800 pixels) Internal SATA 2.5” hard disk drive Modular construction Industrial motherboard with Intel processor 2 GB RAM Integrated graphics 2 x dimmable XLR desk lamp connections

Software Industrial embedded OS OS installation by USB storage device Show backup on hard disk or USB storage device (not included) Support for ELO USB touchscreens

Connections 4 x DMX universe outputs: 5-pin locking XLR External monitor screen: VGA or DVI Art-Net / sACN for up to 32 DMX universes in total: RJ-45 MaxNet controller link: RJ-45 2 x M-Series Module interfaces: RJ45 Ethercon MIDI in/out/thru (MIDI show control, MIDI notes, MIDI timecode): Optional 2 x desk lamps: XLR AC power input: 3-pin IEC AC power throughput: 3-pin IEC (6 A max.) USB (storage media/hardware peripherals) Back of mainboard: 4 x USB 3.0 Side of console: 2 x USB 2.0 Front of console: 1 x USB 2.0

Electrical AC power: 100-240 V nominal, 50/60 Hz

Typical Power and Current 0.75 A, 80 W

Included Items 1.5 m power cable, EU (Schuko), 3-pin IEC: P/N 11501012 1.5 m power cable, US, 3-pin IEC: P/N 11501502 Martin ShowDesigner 6™ Lite 3D Visualizer 180-day trial User documentation CD

Accessories Martin M-Sync™ SMPTE USB Interface Box: P/N 90703020 USB-MIDI Port Internal Module: P/N 91613038 LED desklight, angular XLR, 18.5": P/N 91613037 Dust cover for M1: P/N 91613070 Flightcase for M1: P/N 91535070 Martin™ M-PC 2U with Martin™ M-DMX: P/N 90737070

Related Items M-Series Submaster Module: P/N 90732170 M-Series Playback II Module: P/N 90732190 Martin™ M-Touch: P/N 90737040 Martin™ M-Play: P/N 90737030

Ordering Information Martin M1 ts™ Console: P/N 90732040
