RUSH DC 1 Aqua (discontinued)

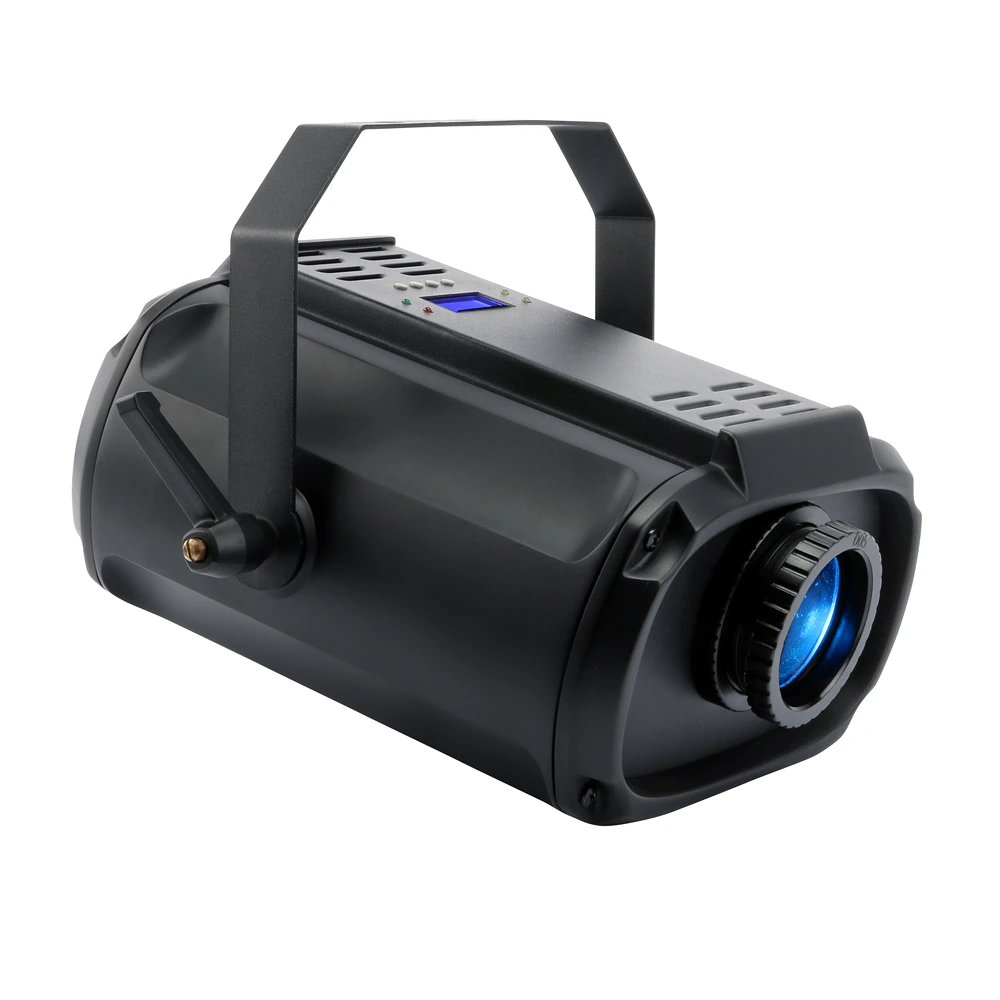

RUSH DC 1 Aqua
Larger Images

This compact and bright LED fixture projects brilliant aquatic decoration effects. With full electronic dimming, five selectable colors plus open white, split color options and a variable speed of effect all controlled via stand alone or DMX modes, it offers a variety of ranging moods – from chill to warm and from a silent trickle to a surging waterfall. Ideal for shows, clubs or simply your own personal party, the RUSH DC 1 Aqua will wash liquid light through the crowd, the lounge, across walls and above bar counters.

  • Super bright 75 W LED engine
  • Dual-effect wheels for the ultimate aquatic decoration effect
  • 5 selectable colors plus open white with split-color option

Videos





Features

  • Bright and compact LED water effect lighting
  • 5 selectable colors plus open white and split color option
  • Variable manual focus
  • Variable effect speed and direction control
  • Host / client function
  • 5-pin XL

Specifications

Physical Length: 276 mm (10.9 in.) Width: 342 mm (13.5 in.) Height: 143 mm (5.7 in.) Weight: 4.1 kg (9.1 lbs.)
Dynamic Effects Color wheel: 5 colors plus open, wheel rotation with variable direction and speed Effect wheel: 2 rotating water effect wheels with variable direction and speed Electronic dimming: 0 - 100% Focus: Manual
Control and Programming Control options: DMX, standalone operation DMX channels: 4 Setting and addressing: Control panel with LCD display DMX compliance: USITT DMX512/1990
Optics Light source: 75 W LED engine Beam angle: 40 Minimum LED lifetime: 50 000 hours (to >70% luminous output)* *Figure obtained under manufacturer's test conditions:
Construction Color: Black Housing: High-impact flame-retardant thermoplastic Protection rating: IP20
Installation Mounting: Bracket for surface or truss mounting Location: Indoor use only, must be fastened to surface or structure Orientation: Any
Connections AC power in/thru: Neutrik PowerCon DMX data in/thru: 5-pin locking XLR
Electrical AC power: 100-240 V nominal, 50/60 Hz Typical total power consumption: 104 W
Typical Power and Current 110 V, 60 Hz: 1.5 A, 104 W 230 V, 50 Hz: 0.9 A, 102 W
Thermal Cooling: Forced air (temperature-regulated, low noise) Maximum ambient temperature (Ta max.): 40° C (104° F) Minimum ambient temperature (Ta min.): 0° - 180° C (32° - 356° F) Minimum ambient temperature (Ta min.): 0° C (32° F) Total heat dissipation (calculated, +/-10%, at full intensity): 355 BTU/hr
Approvals EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493 EU EMC: EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547 US safety: UL 1573 US EMC: 47 CFR Part 15 Class A Canadian safety: CSA C22.2 No. 166 Canadian EMC: ICES-003 Class A Australia/NZ: C-TICK N4241
CE ETL C US Intertek
Included Items Power cable, 1.5 m, without mains plug: Mounting bracket:
Accessories Cables, 16 A, for connection to power in chains: Power input cable, 14 AWG, UL, SJT, 1.5 mm2 , H05VV-F, with PowerCon input connector, 3 m (9.8 ft.): P/N 11541508 Power relay cable, 14 AWG, UL, SJT, 1.5 mm2 , H05VV-F, with PowerCon connectors, 1.4 m (4.6 ft.): P/N 11541509 Power relay cable, 14 AWG, UL, SJT, 1.5 mm2, H05VV-F, with PowerCon connectors, 2.25 m (7.4 ft.): P/N 11541510 Power relay cable, 14 AWG, UL, SJT, 1.5 mm2 , H05VV-F, with PowerCon connectors, 3.25 m (10.7 ft.): P/N 11541511 Power connectors: Neutrik PowerCon NAC3FCA input connector, cable mount, blue: P/N 05342804 Neutrik PowerCon NAC3FCB output connector, cable mount, light grey: P/N 05342805
Related Items RUSH™ Software Uploader 1: P/N 91611399
Ordering Information RUSH DC 1 Aqua™ in cardboard box, EU model: P/N 90480050 RUSH DC 1 Aqua™ in cardboard box, US model: P/N 90480055

Downloads

  Version Language Size Uploaded
Manuals
file type icon RUSH DC 1 Aqua - Manuel d'utilisation
fr version B, updated: May 2018
fr  641 KB May 2018
file type icon RUSH DC 1 Aqua - User Manual
en version F, updated: Jun 2020
en  1.07 MB Jun 2020
file type icon RUSH DC 1 Aqua - Bedienungsanleitung
de version B, updated: May 2018
de  639 KB May 2018
Illustrations
file type icon RUSH DC 1 Aqua - 2D Dimensions (PDF)
en version A, updated: May 2018
en  767 KB May 2018
file type icon RUSH DC 1 Aqua - 2D Dimensions (DWG)
en version A, updated: May 2018
en  813 KB May 2018
Compliances
file type icon RUSH DC 1 Aqua - ETL Listing Verification
en version A, updated: May 2018
en  106 KB May 2018
file type icon RUSH DC 1 Aqua - EU Declaration of Conformity
en version A, updated: May 2018
en  39.6 KB May 2018
Software
file type icon RUSH DC 1 Aqua - Software
en version V1.2, updated: Oct 2020
V1.2  en  134 KB Oct 2020
file type icon RUSH Uploader DMX - Tool
en version 1.1, updated: Oct 2020
1.1  en  1.18 MB Oct 2020
Service Notes
file type icon 3D Partsfinder - Opening using Solid Works Composer Player
version 4, updated: Oct 2020
  743 KB Oct 2020
Hints And Tips
Avoiding damage from sunlight and other light sources
en version B, updated: May 2018
B   en    May 2018
