Alien LED Downlight (discontinued)

Alien LED Downlight
Larger Images

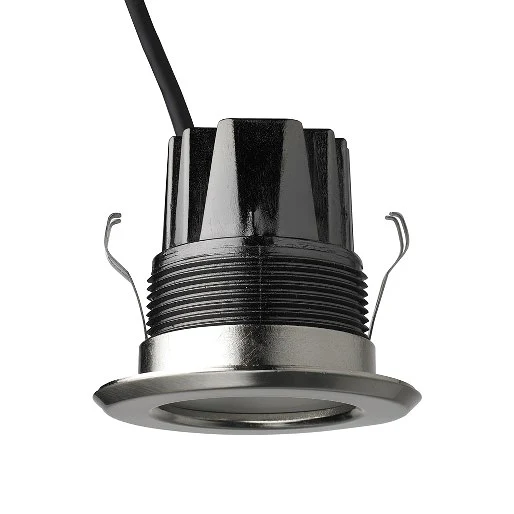

This range of plug-and-play recessed LED downlights features RGB+W color mixing designed for accent lighting in colored or variable white light. With its tough IP67 rating, the Alien LED Downlight is equally suited to both indoor and outdoor environments.

Features

  • 5 or 9 LEDs in 4 colors: Red, Green, Blue and White
  • Choice of 9 watt Standard or 18 watt High-Power
  • RGBW colour mixing, variable colour temperature
  • Choice of optical systems: medium or wide
  • 0-100% intensity control
  • DMX controlled, via Driver Unit
  • Choice of DMX control modes: RGBW, HSI
  • Trim rings: Stainless steel as standard, chrome, white or brass as accessories
  • Weatherproof rating: IP67

Specifications

Physical Installation depth: 69 mm Maximum protrusion from mounting surface: 6 mm Trim ring outer diameter: 85 mm Diameter of luminaire at widest point: 63 mm Weight: 330 g incl. cable Length (transformer): 123 mm Width (transformer): 50 mm Height (transformer): 32 mm Weight (transformer): 385 g incl. cables
Dynamic Effects Color mixing: RGBW Red: 0 - 100% Green: 0 - 100% Blue: 0 - 100% White: 0 - 100%
Control and Programming Required control hardware: Alien LED Downlight Driver Unit (ordered separately, drives up to 20 std. or 10 high-power luminaires) Color control modes: RGBW, HSI DMX channels: 4 per independently controlled luminaire or group of luminaires Protocol: USITT DMX512-A DMX address setting: DIP switch on Driver Unit Stand-alone options: 31 pre-programmed static/dynamic scenes/sequences in Driver Unit
Optics Light source: Luxeon Rebel high power emitters Total LED power: 9 W (approx.) per standard luminaire, 18 W (appox.) per high-power luminaire Super-wide lens available:
Construction Housing: Steel & aluminum Housing (transformer): Flame-retardant plastic Trim ring: Brushed stainless (standard), chrome, white or brass Protection rating: IP67 Protection rating (transformer): IP20
Installation Location: Recessed, ceiling or wall Orientation: Any Minimum clearance around device: 50 mm Ceiling thickness: 5 mm - 22 mm Luminaire external thread for retaining nut: 2-inch BSP Diameter of mounting hole: 70 mm with plasterboard retainer, 63 mm with 2" BSP nut Max. cable length, driver unit to last transformer on link: 50 m Max. cable length, driver unit to daisy-chained driver unit: 50 m Max. cable length, transformer to luminaire: 1.5 m
Connections Driver Unit combined power & data outputs to transformers: Two IEC female sockets Power & data input to transformer: 1.5 m cable with IEC male connector (C14 line plug) Power & data throughput from transformer: 1.5 m cable with IEC female connector (C13 line socket) Transformer output to luminaire(s): RJ-45 socket T-connector for use with two standard luminaires: RJ-45 sockets
Electrical AC power: Supplied by Driver Unit via combined power & data cable Standby power: Driver unit with 1 head 4 W; Driver unit with 10 heads 14 W
Typical Power and Current Driver unit with 1 head (1 high-power or 2 standard luminaires): 100-120 V, 50/60 Hz: 18 W, 0.2 A, PF 0.98 208-240 V, 50/60 Hz: 18 W, 0.1 A, PF 0.86 Driver unit with 10 heads (10 high-power or 20 standard luminaires): 100-120 V, 50/60 Hz: 180 W, 1.4 A, PF 0.98 208-240 V, 50/60 Hz: 180 W, 0.8 A, PF 0.96 Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.:
Thermal Cooling: Convection Maximum ambient temperature (Ta max.): Luminaire 45° C, transformer 40° C Minimum ambient temperature (Ta min.): Luminaire -25° C, transformer 0° C Maximum surface temperature, steady state, Ta=45° C: Standard luminaire 80° C, high-power luminaire 85° C, transformer 70° C Total heat dissipation per head (i.e. one high-power or two standard luminaires), calculated, +/- 10%: 62 BTU/hr.
Approvals EU safety: BSEN 60598-1, BSEN 60598-2-2 (luminaire), BSEN 61347-1, BSEN 61347-2-13 (transformer) EU EMC: EN 55 015, EN 55 103, EN 61 000-3 US safety: UL 1598 (luminaire), UL 1310 (transformer) Canadian safety: CSA C22.2 No. 250 (luminaire), CSA C22.2 No. 223 (transformer)
CE ETL C US Intertek
Included Items Two standard-power luminaires, one transformer, all cables and connectors (Standard Downlight Set): One high-power luminaire, one transformer, all cables and connectors (High-Power Downlight Set): Driver unit, 3-pin male XLR-to-RJ-45 adapter, user manual (Downlight Driver Unit):
Accessories Chrome trim ring: 91611301 Brass trim ring: 91611302 White trim ring: 91611303 DMX termination plug, RJ-45: 91613028
Ordering Information Alien LED Standard Downlight Set: 90353000 Alien LED High-Power Downlight Set: 90353040 Alien LED Downlight Driver Unit: 90734510
