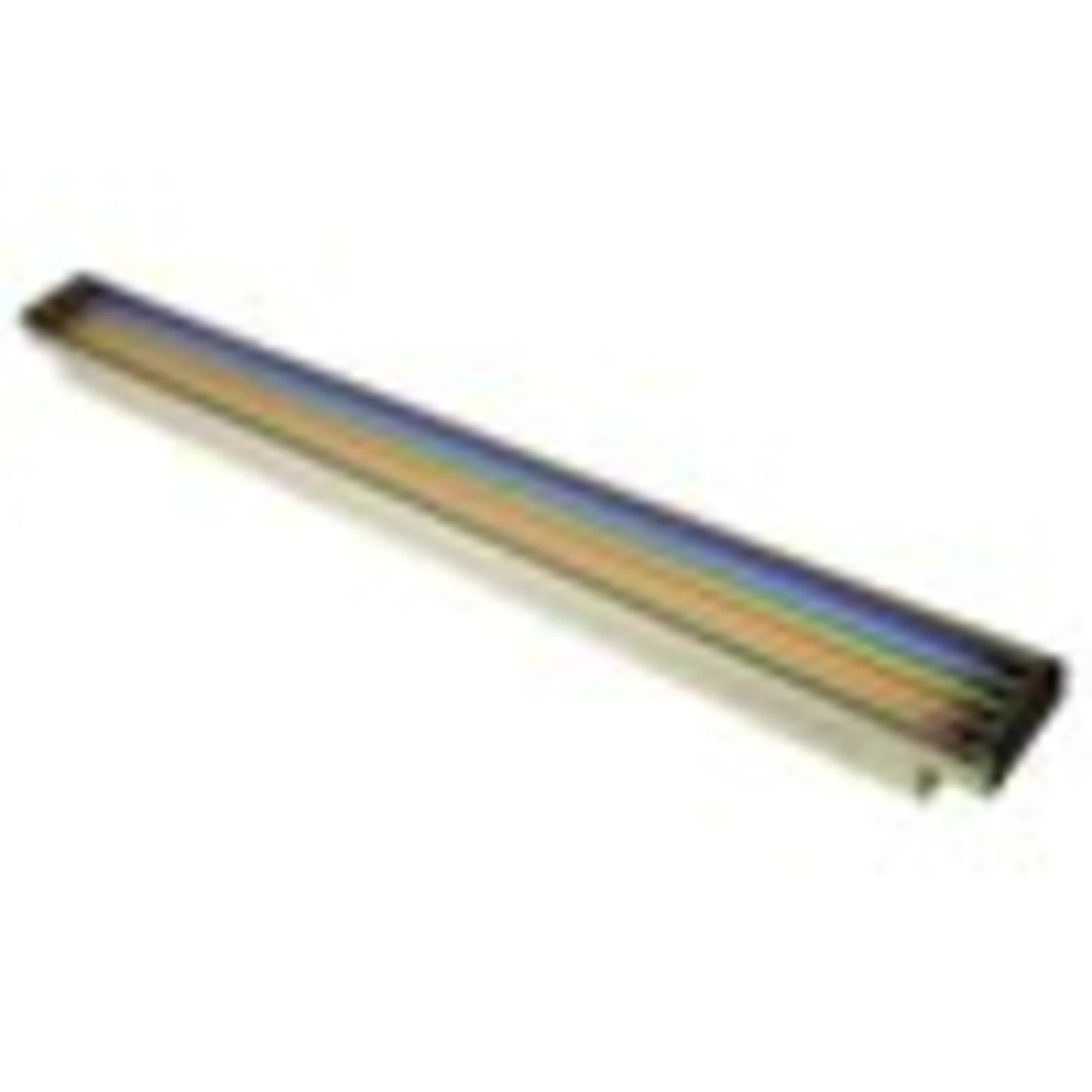

Cyclo 03 (discontinued)

Larger Images

Cyclos 03 and 04 offer full color mixing using RGB technology to generate virtually all colors and shades or white light of any color temperature.

Features

Specifications

Physical Length: 1190 mm Width: 81 mm Height: 88 mm Weight: 4.7 kg
Dynamic Effects Color mixing: RGB Red: 0 - 100% Green: 0 - 100% Blue: 0 - 100%
Control and Programming Control options: Analog 1-10 V Control via 516 Converter: 16 channels Dimmer channels required per independently controlled Cyclo group: 3 Number of Cyclos per group (fixtures wired in series): 1-10
Construction Housing: Mild steel Color(s): White (NCS 0402-G06-Y) Reflector: High specular 99.9% aluminum Protection rating: IP20
Connections AC power input: Quick connectors 0-10 V analog: Quick connectors
Typical Power and Current 230 V, 50 Hz: 96 W, 0.42 A Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:
Included Items Osram T5 FH 28 W/60 HE red tube: 97020003 Osram T5 FH 28 W/66 HE green tube: 97020004 Osram T5 FH 28 W/67 HE blue tube: 97020005
Accessories Martin 516 II DMX to 0-10 V Converter: 90758225 Diffuser front for Cyclo 03: 91611077
Spare Parts Osram T5 FH 28 W/60 HE red tube: 97020003 Osram T5 FH 28 W/66 HE green tube: 97020004 Osram T5 FH 28 W/67 HE blue tube: 97020005
Ordering Information Cyclo 03: 90550010

Downloads

  Version Language Size Uploaded
Hints And Tips
Optimizing Cyclo Tube Lifetimes
en version A, updated: May 22, 2018
en    May 22, 2018
Running Cyclos at Very Low Ambient Temperatures
en version A, updated: May 22, 2018
en    May 22, 2018
