Cyclo Series (discontinued)

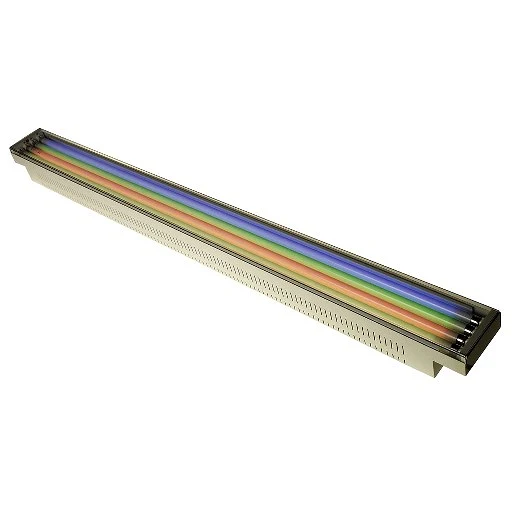

Cyclo series large
Larger Images

The Cyclo Series provides a simple dynamic lighting solution for stores and other commercial applications, with a fluorescent linear luminaire that uniformly washes surfaces in color and variable color temperature white light.

Features

  • 28 W T5 fluorescent tubes, 54 W (110 V version only)
  • Choice of 2, 3 or 4 tube versions
  • Long lamp life (20 000 hrs)
  • Choice of opal or clear front covers
  • 0-100% intensity control
  • Control Options: DMX or analog control versions
  • Surface mounting
  • End-user programming: no extra controller required

Tech Specs

Lamp Type: T5 fluorescent tubes Approved lamps: Osram T5 HE 28 W and T5 HO 54 W Average lifetime: 20 000 hours Socket: G5
Installation Orientation: Any Minimum free space: 25 mm
Electrical AC power: 198-240 V, 50/60 Hz
Thermal Maximum ambient temperature (Ta max.): 40° C Minimum ambient temperature (Ta min.): -20° C Cooling: Convection
Approvals EU safety: EN 60598-1, EN 60598-2-1 EU EMC: EN 55015, EN 60555-3
CE

Downloads

Filename Version Language Size Uploaded
Specifications
Download 17 Technische Daten, Cyclo 02 de  403 KB May 06, 2003
Download 17 Specifications, Cyclo 02 en  7.5 KB Mar 04, 2003
Download 17 Technische Daten, Cyclo 03/04 de  405 KB May 06, 2003
Download 17 Specifications, Cyclo 03/04 en  14.2 KB Mar 04, 2003
Download 17 Technische Daten, Cyclo 03/04 DMX de  15.1 KB Dec 05, 2004
Download 17 Specifications, Cyclo 03/04 DMX en  9.62 KB Oct 08, 2003
Download 17 Especificacione, Cyclo 03/04 DMX es  9.17 KB Nov 19, 2003
Download 17 Specifiche, Cyclo 03/04 DMX it  9.8 KB Jun 22, 2004
Download 17 Caractéristiques, Cyclo 03/04 DMX fr  34.6 KB Feb 09, 2004
Manuals
Download 17 Bedienungsanleitungl, Cyclo 02/03/04 de  706 KB May 06, 2003
Download 17 User manual, Cyclo 02/03/04 en  207 KB Mar 04, 2003
Download 17 Manuale d´uso, Cyclo 02/03/04 it  187 KB Oct 17, 2004
Download 17 Bedienungsanleitungl, Cyclo 03/04 DMX de  274 KB Dec 05, 2004
Download 17 User manual, Cyclo 03/04 DMX en  372 KB Oct 08, 2003
Download 17 Manual de instruccionesl, Cyclo 03/04 DMX es  381 KB Nov 19, 2003
Download 17 Manuale d´uso, Cyclo 03/04 DMX it  453 KB Jun 22, 2004
Download 17 User manual, Cyclo 03/04 DMX HO EU en  492 KB Jan 18, 2010
Download 17 Manuel d´utilisationl, Cyclo 03/04 DMX fr  309 KB Feb 09, 2004
Illustrations
Download 17 Cyclo DMX 03-04 HO Dimensions (PDF) en  47.3 KB Jul 10, 2005
Download 17 Cyclo DMX 03-04 HO Dimensions (DXF) en  139 KB Jul 10, 2005
Download 17 DIMS_Cyclo_03_04_A_     48 KB Sep 29, 2003
Download 17 DIMS_Cyclo_03_04_A_dxf     142 KB Sep 29, 2003
Download 17 Cyclo 02, Dimensions en  70.7 KB Nov 17, 2002
Download 17 Cyclo 03, Dimensions en  67.4 KB Nov 17, 2002
Download 17 Cyclo 04, Dimensions en  68.7 KB Nov 17, 2002
Instructions
Download 17 Cyclo diffuser kit installation en  403 KB Jun 24, 2003
Performances
Download 17 Cyclo 02 performance data en  14.1 KB Dec 08, 2002
Download 17 Cyclo 03 performance data en  12.3 KB Dec 08, 2002
Download 17 Cyclo 04 performance data en  40 KB Dec 08, 2002
Photometric Data en    May 20, 2007
Compliances
Download 17 EU Declaration of Conformity es  48.4 KB Nov 03, 2003
Hints And Tips
Installing 54 Watt Tubes Will Damage a 28 Watt Cyclo en    Jan 08, 2006
Optimizing Cyclo Tube Lifetimes en    Jan 08, 2006
RJ-45 Connectors en    Nov 30, 2003
Running Cyclos at Very Low Ambient Temperatures en    Mar 21, 2006
