Exterior Wash 320

Larger Images

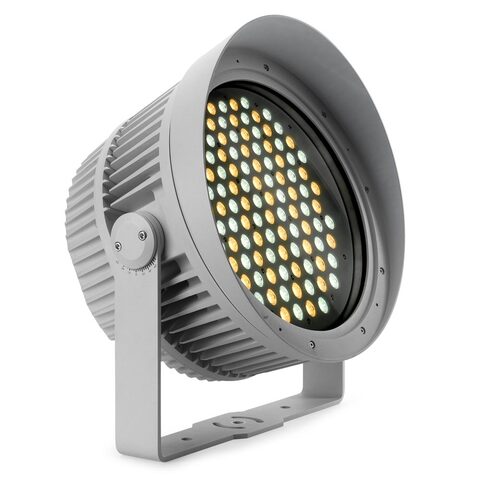

Exterior Wash™ 320 is a powerful, compact and energy-efficient LED lighting fixture designed to illuminate large structures, building facades and bridges. A discreet, optional snoot integrates seamlessly with the slick design of the fixtures. It has built-in display for ease-of-use, a wide selection of beam angles and is fully IP-rated for permanent outdoor use.

The Exterior Wash 320 is designed for variable color temperature (2700K-6500K) applications and is based on separate 2700K and 6500K LEDs

  • Variable color temperature control with 6 beam angle options
  • Functional and discreet optional snoot which integrates with the design of the fixtures
  • Control via DMX, RDM and OLED display

Videos

Product Demo

Features

  • Powerful LEDs (2700K, 6500K)
  • Up to 15.100 lumens at full white
  • Six different beam angle options
  • Internal power and control (DMX, RDM and OLED display)
  • Rugged IP66 housing
  • 0 – 100% intensity control

Tech Specs

PhysicalLength: 283 mm (11.2 in.)Width: 404 mm (15.9 in.)Height: 439 mm (17.3 in.)Weight: 19.0 kg (42.0 lbs.)
Dynamic EffectsIntensity: 0 - 100%Color temperature control: 2700 K - 6500 K
Control and ProgrammingControl systems: DMX, RDMDMX channels: 2Setting, addressing, standalone programming: Control panel with OLED displayReceiver: RS-485Firmware update: Serial upload via DMX linkDMX compliance: USITT DMX512-ARDM compliance: ANSI/ESTA E1.20
OpticsMinimum LED lifetime: 50 000 hours (to >70% luminous output)*Light source: 2700 K and 6500 K LEDsLED manufacturer: CreeBeam angle optionsNo diffuser: 7.5°Narrow diffuser: 11.5°Medium diffuser: 25°Wide diffuser: 41°Very wide diffuser: 59°Asymmetric diffuser: 65° x 14.5°*Figure obtained under manufacturer's test conditions
Photometric DataTotal luminous output: 15100 lumens
ConstructionIngress protection rating: IP66Surface treatment: Anodized and electrostatic powder-coatedColor: Light grey (white, black or other colors available on request)Housing: Cast aluminumEffective Projected Area (EPA): 0.14 m² including snootImpact resistance: IK08 (with control panel display cover plate installed)Corrosion resistance: C5-M (very high corrosivity / marine, ISO 12944)RoHS compliant
Installation Orientation: Any Mounting: Adjustable yoke Minimum distance to illuminated surfaces: 0.2 m (0.6 ft.)
ConnectionsPower connection: 1.8 m (5.9 ft.) cable tail without connectorPower input cable type, EU models: H05RN-F 300/500V, 3 x 0.75 mm2, Ø 7 mmPower input cable type, US models: SJOW 18AWG, 300V, WL F1, Ø 8 mmData connection: 1.8 m (5.9 ft.) open ended 5-conductor combined input + output cable tailAll cable entries: IP68 cable gland
ElectricalAC power: 100 - 240 / 277 V nominal, 50/60 HzPower supply unit: Integrated, auto-sensing multi-voltagePower consumption, steady state, all LEDs at zero intensity:6 WMaximum total power consumption: 280 WTypical half-cycle RMS inrush current: 10.9 ASurge protection: 4 KV
Typical Power and Current100 V, 60 Hz: 2.6 A, 250 W, PF 0.99120 V, 60 Hz: 2.1 A, 245 W, PF 0.99230 V, 50 Hz: 1.2 A, 240 W, PF 0.97277 V, 60 Hz: 1.0 A, 240 W, PF 0.94Measurements made with fixture in steady state at nominal voltage, ambient temperature (Ta) 20° C (68° F), all LEDs at full intensity. Allow for a deviation of +/- 10%.
ThermalCooling: ConvectionMaximum ambient temperature (Ta max.): 45° C (113° F)*Minimum ambient temperature (Ta min.): -30° C (-22° F)**Maximum surface temperature, steady state, at 40° C ambient: 70° C (158° F)Total heat dissipation (calculated, +/- 10%): 945 BTU/hr *Above this temperature, the fixture regulates output to protect from overheating **Power must be maintained below -20° C (-4° F)
ApprovalsEU safety: EN60598-2-5 (EN60598-1), EN62471, EN62493, EN60598-2-1EU EMC: EN55015, EN61547, EN61000-3-2, EN6100-3-3, EN61000-4-2, EN6100-4-4, EN6100-4-5US safety: ANSI/UL 1598US EMC: 47 CFR Part 15 Class ACanadian safety: CSA C.22.2 No. 250Australia/NZ: Australia/NZ

Included Items Cover plate for control panel
AccessoriesExterior Wash 300 Series, narrow diffuser kit: P/N 91610155Exterior Wash 300 Series, medium diffuser kit: P/N 91610156Exterior Wash 300 Series, wide diffuser kit: P/N 91610157Exterior Wash 300 Series, very wide diffuser kit: P/N 91610158 Exterior Wash 300 Series, asymmetric diffuser kit: P/N 91610159 Exterior Wash 300 Series, glare shield / snoot: P/N 91611735 Exterior Wash 300 Honeycomb Louvre: P/N 91611858
Related Items Martin Companion Cable: P/N 91616091
Ordering InformationExterior Wash 320, 7°, EU, aluminum: P/N 90507080Exterior Wash 320, 7°, US, aluminum: P/N 90507081
