M-Series Playback II Module (discontinued)

Larger Images

Effective 14 March, 2018, Elation Professional has acquired the M-Series range of lighting controllers and software from HARMAN Professional and will now be providing sales and product support. View the announcement from Elation Professional.

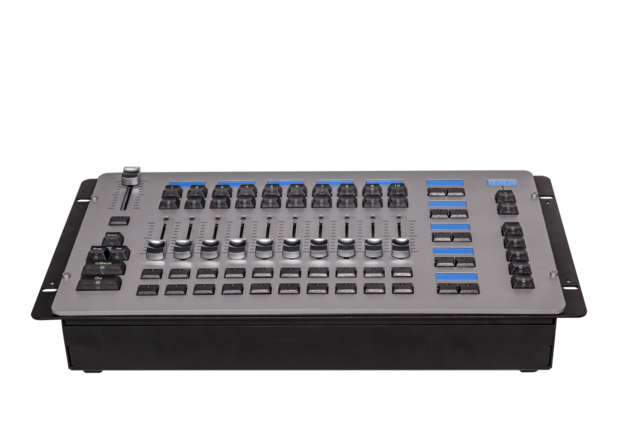

The M-Series Playback ll Module extends the playback capabilities of any M-Series console by adding 10 motorized faders and 10 PlayPaired buttons. Cuelist information is displayed on 10 LCD displays, 5 Fast Keys for quick access to banks and other functionality, a Master Go section and a Grand Master fader with flash.

Multiple Playback Modules can be added to the M-Series console.

  • 10 x motorized playback faders
  • 10 x PlayPaired buttons
  • Master Go section

Features

  • 10 x motorized playback faders
  • 10 x pause/back buttons
  • 10 x go buttons
  • 10 x flash buttons
  • 10 x PlayPaired buttons
  • 10 x LCD displays
  • Three-digit display for actual bank number
  • 5 x Fast Keys for quick access to banks or other functions
  • Master Go section
  • Grand Master fader with flash button
  • Tabletop and 19” rackmount format

Specifications

PhysicalLength: 275 mm (10.9 in.)Width: 483 mm (19.1 in.)Height: 128 mm (5.1 in.)Weight: 4.6 kg (10.2 lbs.)
Control/User Interface10 x motorized playback faders10 x pause/back buttons10 x go buttons10 x flash buttons10 x PlayPaired buttons10 x LCD displaysThree-digit display for actual bank number5 x Fast Keys for quick access to banks or other functionsMaster Go sectionGrand Master fader with flash button
ConnectionsM-Series™ Module link USB: Neutrik locking RJ45 Ethercon socketsUSB input: USB device socketUSB devices: USB host socketDesk lamp: 2.5 mm DC bayonetAC power input: 3-pin IEC male socketAC power throughput: 3-pin IEC female socket
ElectricalAC power: 100-240 V nominal, 50/60 HzPower supply unit: Auto-ranging electronic switch-modeMain fuse: 2 AT (slow blow)Desk lamp output: 12 VAC power output: Unswitched, unfused, max. 6 A
ApprovalsEU safety: EN 60950EU EMC: EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3US safety (pending): ANSI/UL 60950-1Canadian safety (pending): CSA C22.2 No. 60950-1
Included Items1.5 m power cable, 3-pin IEC: P/N 11501012Ethercon patch cable: P/N 11840144USB cable: P/N 11840066
AccessoriesM-Series™ Empty Frame in Flightcase: P/N 90732120
Ordering InformationM-Series Playback II Module™: P/N 90732190
