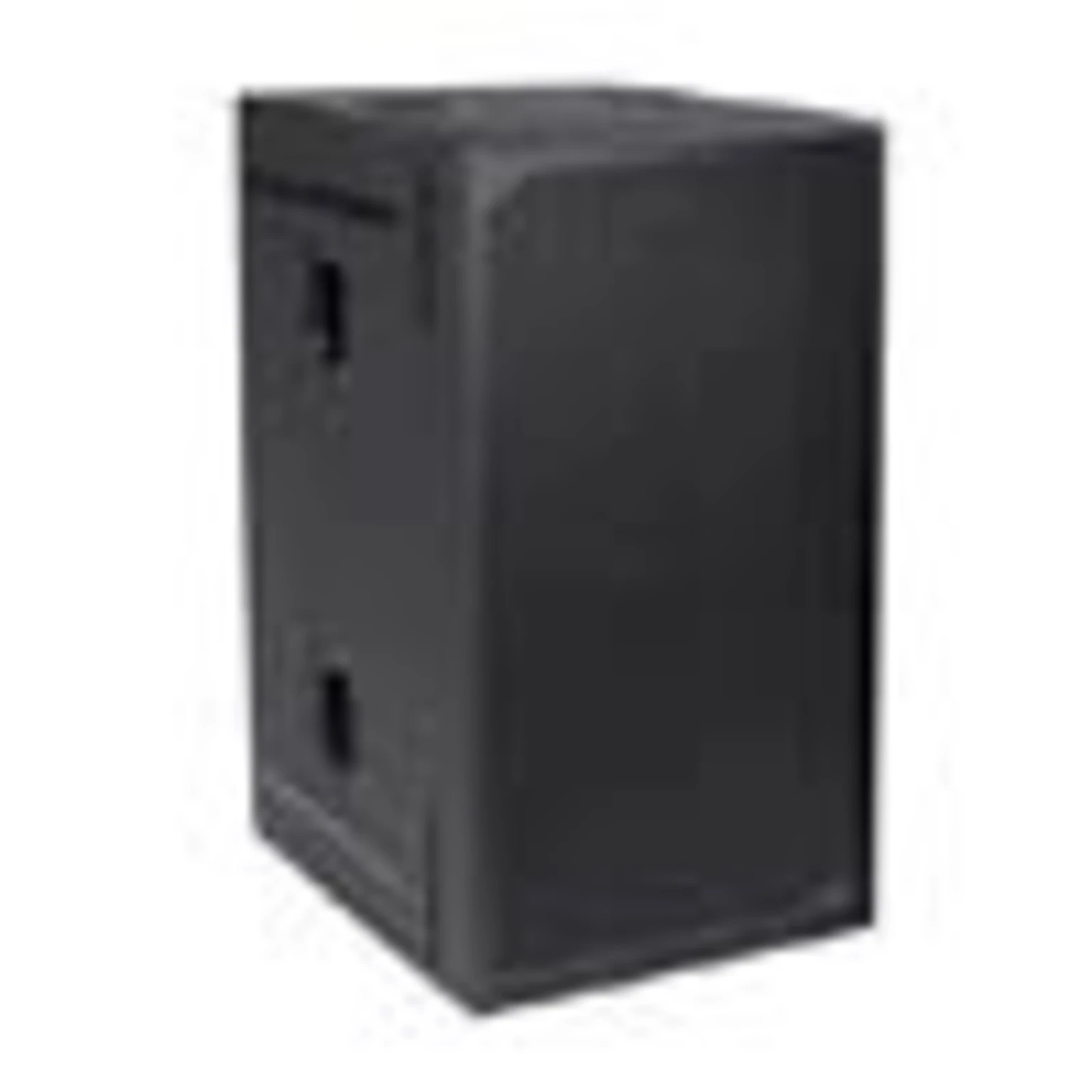

M218T (discontinued)

Larger Images
As a dual 18” frontloaded subwoofer, the M218T is designed specially to support the M14T or M30T. To achieve excellent sub bass reproduction while maintaining clarity and impulse performance, M218T has been designed as a bass reflex cabinet. The woofers feature a 4” interleaved sandwich voice coil with windings on the outside as well as the inside of the voice coil former. The result is a balanced coil with uniform distribution of mass and motive energy that provides an extremely linear motor assembly. In addition the motor features the use of double demodulating rings which nearly eliminates intermodulation and harmonic distortion while improving impulse and transient response. In order to achieve maximum strength and reliability, the diaphragm is reinforced with carbon fiber. The design of the basket and the double spider offer excellent heat dissipation and thereby very low power compression.

Features

  • ”SlingShot" flying system
  • 18" woofers with 4” voice coil
  • Bass reflex cabinet
  • Highly durable, UV stable SafeCoat coating
  • Integrated handles
  • Speakon® NL8 with link option

Specifications

Downloads

  Version Language Size Uploaded
Specifications
SP_M218T_EN_A en  74.7 KB May 18, 2018
SP_M218T_EN_B en  238 KB May 18, 2018
Manuals
User manual en  154 KB May 18, 2018

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.
