Martin M2GO

Larger Images

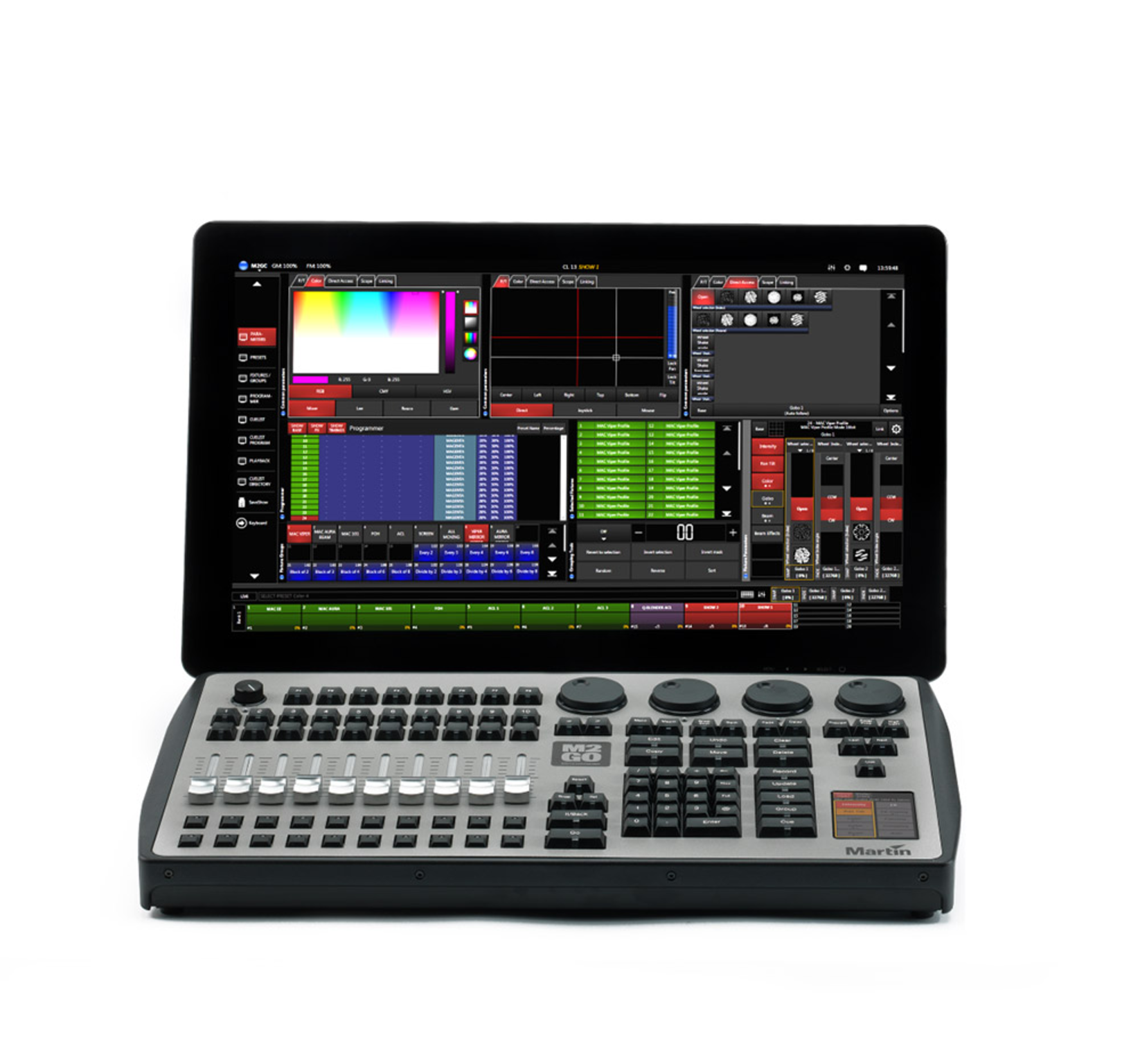

Equipped with a fast, dual-core processor with no external computer required, the M2GO answers the demand for a more powerful lighting console in a smaller form. It offers a professional level of features in a portable package and has been developed with cost, ergonomics, feature set, size and weight in mind. The M2GO is a unique, portable and powerful lighting console.

Built-in processing
Portable
10 playbacks

Videos

Features

Built-in Industrial Dual Core CPU, 32GB SSD, 4GB RAM, HDMI, VGA, Dual Gigabit Artnet and Maxnet
3.5” touchscreen for fast and direct parameter access
4 digital encoders for parameters
8 customizable function keys
4 DMX ports standard; additional external DMX ports can be added as options
Controls up to 4096 parameters
8 Universes
Customizable Graphical User Interface with context sensitive toolbars and integrated Help menu
Powerful effects engine
1000 cuelists with fader control
1000 cuelists with playback control buttons
Parallel execution of multiple cuelists
Submaster, Inhibitive and Override functionality
Parameter and Time-fanning functionality
Auto update for presets and cues
On-the-fly global timing adjustments
Up to 4x DMX Universes direct from the console; up to 8 Universes with Art-Net /sACN
M-Series Manager Software for programming and triggering via time and calendar schedules
Multiple wing attachment (M-Series Modules)

Specifications

Physical Length: 300 mm (11.9 in.) Width: 540 mm (21.3 in.) Height: 99 mm (3.9 in.) Weight: 5.2 kg (11.5 lbs.)

Control and Programming Protocol: DMX512A (RDM), Art-Net2, sACN 8 x DMX universes 4096 channels No limit to number of DMX channels per fixture Extensive fixture library for all known manufacturers 65000 x presets for each group of functions (P/T, color, gobo, etc.) Effect generator for automated programming of complex effects Customizable highlight and lowlight function to identify individual fixtures Relative or absolute programming Fan function for all channels (including timing parameters) On-the-fly global timing changes Virtual cuelists Macros Wait, follow and link cues HTP, LTP, chase, timecode, submaster and group master playback functionality Individual parameter timings Intuitive patch feature Fixture type cloning All channels with 16-bit resolution

Control/User Interface Main playback interface: 10 x 60 mm playback faders, each with four function- assignable buttons 8 x customizable multi-function keys Playback Select button Master Go section with Go, Pause, Snap and Release 4 x digital rotary encoders with push function and status LED for fixture parameter control 3.5” touchscreen for parameter groups, effect parameters, fanning and global timings Grand master rotary fader and button Blind/preview button Customizable highlight/lowlight function Customizable parameter defaults Next/last fixtures/groups Large command keys

Playback Assign a cue, cuelist or effect to any playback fader 500 x playback banks, each containing 10 x playbacks 100 x pages of 100 playbacks activated by touchscreen button No limit to cues per cuelist Full 16-bit fading for high-resolution fixtures Individual fade in/fade out times for all playbacks Manual override available at all times Live 0-1000% override of global cue timings Live programmer timing (“Sneak”) Cuelists can be executed in tracking or non-tracking mode

Hardware Industrial 3.5" RGB touchscreen Internal 32 GB SSD storage drive Industrial motherboard with dual-core processor 4 GB RAM Integrated graphics processor

Software Industrial embedded OS OS installation by USB storage device Show backup on SSD disk or USB storage device (not included) Supports Elo USB and generic Windows 7-compatible touch devices

Connections 4 x DMX universe outputs: 5-pin locking XLR External monitor screen: VGA and HDMI Art-Net for up to 8 x DMX universes in total: Gigabit RJ-45 MaxNet controller link: Gigabit RJ-45 5 x storage media/hardware peripherals: USB 2.0 Ready to receive internal MIDI module and SMPTE timecode module Internal MIDI in/out/thru (MIDI show control, MIDI notes, MIDI timecode): Optional Internal SMPTE Timecode In/Out: 3-pin XLR (optional) 12 VDC power supply input: 4-pin XLR Desk lamp (dimmable): XLR

Electrical AC mains power to 12 VDC external PSU (included): 100-240 V nominal, 50/60 Hz Maximum current: 1.4 A 12 VDC output: 5 A, 60 W max.

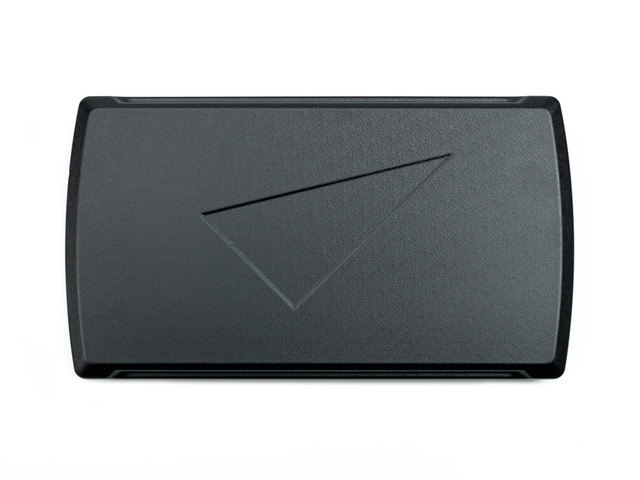

Included Items 1.5 m power cable, EU (Schuko), 3-pin IEC 1.5 m power cable, US, 3-pin IEC MW 12 VDC 5 A external PSU Martin ShowDesigner 6™ Lite 3D Visualizer 180-day trial Console lid

Accessories Martin M-Sync™ SMPTE USB Interface Box: P/N 90703020 Martin™ SMPTE USB Internal Module for M2GO/M2PC: P/N 90703040 Power Supply, 12V 60W, XLR4P: P/N 91613100 LED Desklamp, Angular XLR, 13”: P/N 91613090 Martin™ M-DMX Interface Box / Martin™ M-PC 2U package: P/N 90737070

Related Items M-Series Submaster Module: P/N 90732170 M-Series Playback II Module: P/N 90732190 Martin™ M-Touch: P/N 90737040 Martin™ M-Play: P/N 90737030

Ordering Information M2GO™ Console: P/N 90737000
