MAC III Wash
Larger Images

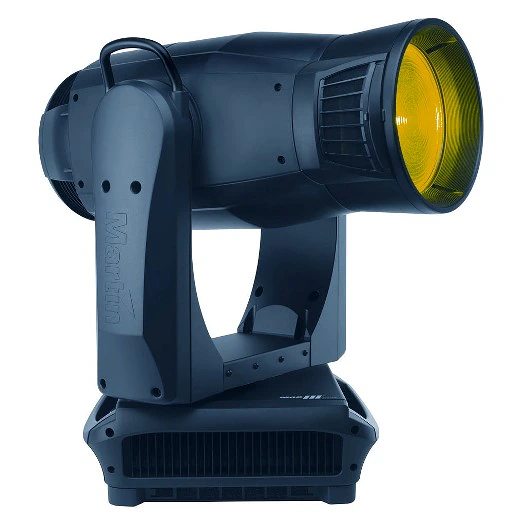

The MAC III Wash is a full-feature, full-range wash luminaire with a unique internal barndoor system (shutters) that enables designers to shape and control light projection onto stages, performers, scenery, scrims or any set element with great precision. Its internal framing system makes it a highly capable, automated substitute for a conventional 2.5 kW daylight Fresnel fixture.

The MAC III Wash features an outstanding quality of light with unlimited color choices and impressive power. Unlike other fixtures, the MAC III Wash maintains near full efficiency throughout the entire zoom range with no visible beam jump when zooming from tight to wide.

Features

  • Powerful wash light with internal barndoors
  • 1:4 fully linear zoom and no lens changes
  • CMY color mixing plus color wheel
  • Variable CTO
  • Iris
  • Dimmer / Shutter
  • 9-inch Fresnel lens
  • Optional clear PC lens
  • Very quiet

Specifications

Physical Length (Head): 712 mm Width: 536 mm Height: 936 mm Weight: 53.5 kg
Dynamic Effects Color mixing: CMY, independently variable 0 - 100% Color temperature control: CTO, variable 6000 - 3200 K Color wheel: 7 interchangeable dichroic filters + open, indexing, continuous rotation, random color Beam shaping: Internal barn doors, continuously variable opening, +55°/-55° indexed rotation Iris: Variable, pulse effects Dimming: Combined electronic and mechanical 0-100% continuous dimming, choice of four dimming curves Mechanical shutter: Strobe effect 2 - 10 Hz, pulse effects, instant open and blackout Zoom: Motorized Pan: 540° Tilt: 268° Position correction system: Absolute position monitoring
Control and Programming DMX channels: 21 Setting and addressing: Control panel with backlit graphic display and jog wheel or via DMX RDM: Implemented 16-bit control: Dimmer, gobo indexing (gobo wheels 1 and 2), focus, zoom, pan and tilt DMX compliance: USITT DMX512-A RDM compliance: ANSI/ESTA E1.20 Receiver: Opto-isolated RS-485 Firmware update: USB memory device or USB/DMX hardware interface over DMX link
Lamp Type: 1500 W discharge Approved lamp: Osram HTI 1500W/60/P50 7mm Lok-it Color temperature: 6000 K CRI (Color rendering index): >90 Average lifetime: 750 hours Hot restrike: Semi-hot (restrike in under 90 seconds) Socket: PGJ50 Ballast: Electronic
Service Utilities Fixture identification: User-settable 4-digit ID number
Construction Color(s): Black Housing: Magnesium alloy, UV-resistant fiber-reinforced composite Reflector: Glass, cold light Protection rating: IP20
Installation Mounting points: Eight quarter-turn locking points Orientation: Any Minimum distance to illuminated surfaces: 5.8 m Minimum distance to combustible materials: 0.2 m
Connections AC power input: Neutrik PowerCon DMX and RDM data in/out: 5-pin locking XLR Ethernet (Artnet II compatible, ACN-ready): Neutrik RJ-45 socket (accepts Neutrik EtherCon connectors in housing) USB memory devices: USB host socket Future USB options: USB device socket
Electrical AC power: 200-240 V nominal, 50/60 Hz Power supply unit: Auto-ranging electronic switch-mode Main fuses: 16 AT (x 2)
Typical Power and Current 200 V, 50 Hz: 1801 W, 9.0 A, PF 0.996 200 V, 60 Hz: 1805 W, 9.1 A, PF 0.995 208 V, 60 Hz: 1802 W, 8.8 A, PF 0.994 220 V, 50 Hz: 1788 W, 8.2 A, PF 0.994 230 V, 50 Hz: 1783 W, 7.8 A, PF 0.993 240 V, 50 Hz: 1779 W, 7.5 A, PF 0.989 240 V, 60 Hz: 1786 W, 7.5 A, PF 0.987 Measurements made at nominal voltage. Allow for a deviation of +/- 10%.: PF = power factor:
Thermal Cooling: Filtered forced air (temperature-regulated, low noise) Maximum ambient temperature (Ta max.): 40° C Maximum surface temperature, steady state, at 40° C ambient: 170° C (338° F) Total heat dissipation (calculated, +/- 10% at 200 V, 60 Hz): 6160 BTU/hr.
Approvals EU safety: EN 60598-1, EN 60598-2-17 EU EMC: EN 55 015, EN 55 103-1, EN 61 547 US safety (pending): ANSI/UL 1573 Canadian safety (pending): CAN/CSA E60598-1, CAN/CSA E598-2-17
CE ETL C US Intertek
Included Items Lamp (installed): 97010348 Two Omega clamp attachment brackets with 1/4-turn fasteners: 91602001
Accessories Power cable, 12 AWG, SJT, with Neutrik PowerCon NAC3FCA input connector, 3 m: 11541503 Neutrik PowerCon NAC3FCA power input connector, cable mount, blue: 05342804 Philips MSR Gold 1500 Fastfit lamp: 97010340 Omega clamp attachment bracket with 1/4-turn fasteners: 91602001 T-shaped omega clamp attachment bracket with 1/4-turn fasteners: 91602008 Half-coupler clamp: 91602005 G-clamp (suspension with yoke vertically downwards only): 91602003 Quick-trigger clamp (suspension with yoke vertically downwards only): 91602007 Super Truss 20.5" mounting plate with half-couplers: 91602014 Swing-wing truss mounting plate with half-couplers: 91602010 Safety cable, safe working load 70 kg: 91604004 Flightcase for 1 x MAC III: 91510080
Related Items Martin USB Duo™ DMX Interface Box: 90703010 Martin RDM 5.5 Splitter™: 90758150
Spare Parts Osram HTI 1500W/60/P50 7mm Lok-it lamp: 97010348 Base air filter, short: 20800220 Base air filter, long: 20800230 Head air filter: 20800240 Main fuse (16 AT): 05020047
Ordering Information MAC III™ Wash in cardboard box: 90206520 MAC III™ Wash in single flightcase: 90206530
Shipping Information In cardboard carton: Shipping dimensions (LxWxH): 530 mm x 640 mm x 1060 mm Shipping weight: 64 kg Quantity on pallet: Four products in single layer Pallet dimensions (LxWxH): 1200 mm x 1000 mm x 1320 mm Pallet volume: 1.9 m3 Pallet weight (incl. pallet): 275 kg In flightcase: Shipping dimensions (LxWxH): 970 mm x 600 mm x 930 mm Shipping weight: 104 kg Quantity on pallet: Four products in two layers Pallet dimensions (LxWxH): 1200 mm x 1000 mm x 1800 mm Pallet volume: 2.2 m3 Pallet weight (incl. pallet): 430 kg
