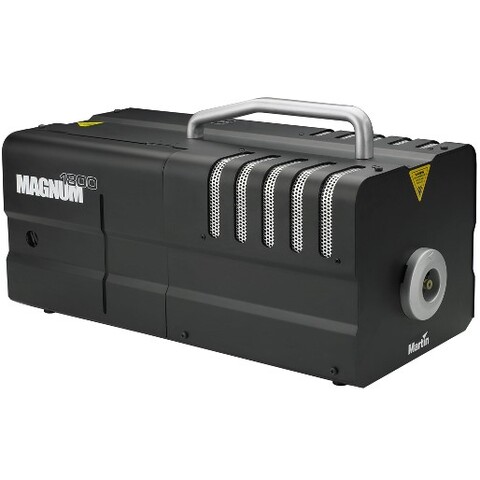

Magnum 1800 (discontinued)

Larger Images

The Magnum 1800 is a high-powered fogger suitable for any installation - from the largest to the smallest. Highly flexible, the 1800 is built sleek and rugged.

Features

  • Onboard DMX
  • Internal remote control storage
  • Timer and output level remote control
  • Linkable - up to 4 units can be operated at the same time with one remote. DMX - unlimited channels are available
  • Optional flying kit
  • Continuous output
  • 580 m³/min fog output
  • 1150 W (240V) / 1000 W (110V) heat exchanger
  • 9 min heat-up time
  • 3.8 liter fluid capacity
  • Different fluid options for different applications

Specifications

Physical Length: 500 mm (19.7 in.) Width: 232 mm (9.2 in.) Height: 266 mm (10.5 in.) Dry weight: 15.0 kg (33.1 lbs.)
Performance Max. fog output (approx.): 580 m3 per minute Max. operating time at full output (approx.): 90 minutes Operating time: Continuous, automatic level adjustment Warm-up time (approx.): 9 minutes
Control and Programming Control options: Remote control (supplied), DMX Remote control features: Instant or timer-controlled variable output
Construction Housing: Steel & aluminum Heat exchanger: 1150 W (240V) / 1000 W (110V), direct thermal protection
Fluid System Fluid pump: Oscillating piston, high pressure Onboard fluid capacity: 3.8 l Fluid consumption at peak output: 70 ml per minute
Installation Orientation: Floor or flown in optional hanging bracket
Connections DMX: 3-pin locking XLR Remote control: RJ-45 Power cable entry: 3-pin IEC
Electrical AC power (EU models): 220-240 V nominal, 50 Hz AC power (US models): 110-120 V nominal, 60 Hz Main fuse (220-240 V power): 6.3 AT (slow blow) Main fuse (110-120 V power): 10 AT (slow blow)
Typical Power and Current US model: 110 V, 60 Hz: 874 W, 7.95 A 115 V, 60 Hz: 955 W, 8.3 A 120 V, 60 Hz: 1040 W, 8.6 A EU model: 220 V, 50 Hz: 1089 W, 4.95 A 230 V, 50 Hz: 1190 W, 5.2 A 240 V, 50 Hz: 1296 W, 5.4 A Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:
Thermal Maximum ambient temperature (Ta max.): 40° C Exterior surface temperature, steady state: 50° C Max. nozzle temperature: 200° C
Approvals EU safety: EN 50 081-1, EN 50 082-1 EU safety: EN 60 335-1 (1995) US safety: UL Std. 60335-1
CE ETL US ONLY
Included Items User manual: P/N 35010023 Remote control with 5 m cable and RJ-45 connector: P/N 92765032 Power cable 1.5 m IEC w/o end plug: P/N 11501012 Container 3.8 l: P/N 34300537
Accessories Regular DJ fluid Pro Smoke Super (ZR Mix) fluid Pro Smoke High Density (SP Mix) fluid Hanging bracket: P/N 92610011 Ducting Kit: P/N 92625009
Ordering Information Martin Magnum 1800, 240 V: P/N 92229011 Martin Magnum 1800, 110 V: P/N 92229010
