Martin DMX 5.3 Splitter (discontinued)

5 port DMX splitter with 3 pole XLR connectors

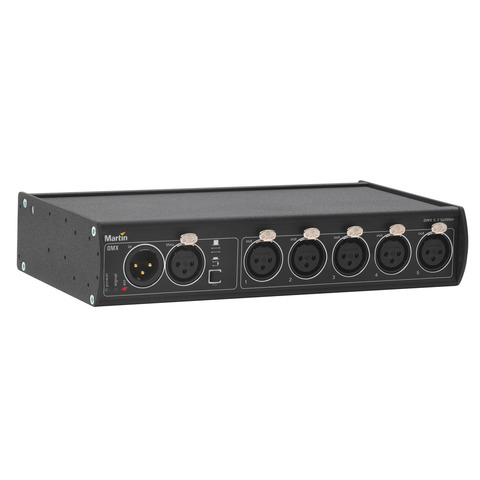

Martin DMX 5.3 Splitter
Larger Images

The Martin DMX 5.3 Splitter is the most economical protection for DMX controllers and devices. The main purpose of the Martin 5.3 Splitter is to maintain proper data over long or several runs of DMX signal. The Splitter boosts the weak DMX signal to its original output level before it becomes too low to be read from DMX devices. Disruption of DMX is often caused by bad cables or bad connections. The Martin DMX 5.3 Splitter will help to rectify the signal.

  • 3-pin XLR Input and Outputs DMX Splitter / Booster
  • Opto-isolated DMX Output ports
  • Rack, truss and wall mountable

Features

  • DMX Splitter / Booster
  • Opto-isolated DMX Output ports
  • DMX loop through port with built-in termination
  • 3-pin XLR Input and Outputs
  • Optimized for Martin fixture firmware upload
  • Universal power supply
  • Rack, truss and wall mountable
  • Lightweight yet robust construction

Specifications

  • Physical Width: 220 mm (8.7 in.) Height: 45 mm (1.8 in.) Depth: 125 mm (5.0 in.) Weight: 0.9 kg (2.0 lbs.)
    Data signal DMX: ANSI E1.11 (USITT DMX 512-A) Electrical standard: EIA-485 Recommended cable type: STP (Shielded Twisted Pair) Recommended cable gauge: 22 or 24 AWG
    Construction Housing: Aluminum Finish: Electrostatic powder-coated
    Connections Data input: 3-pin XLR male Data throughput (not amplified or branched): 3-pin XLR female Data outputs (optically isolated and amplified): 5 x 3-pin XLR female AC power input: 1.2 m cable tail with US-type (NEMA-5-15) power plug
    Electrical AC power: 100-240 V nominal, 50/60 Hz Typical power consumption: 4 W Power supply unit: Auto-ranging electronic switch-mode Power consumption figures are typical, not maximum. Allow for +/-10% variation.
  • Thermal Maximum ambient temperature (Ta max.): 55° C Minimum ambient temperature (Ta min.): -30° C
    Approvals EU safety: EN 60950-1 EU EMC: EN 55022, EN 55024, EN 55103-1, EN 55103-2 US safety: UL 508 US EMC: FCC Part 15 Class A Canadian safety: CAN/CSA C22.2 No. 14 Canadian EMC: ICES-003 Class A Australia/NZ: C-TICK N4241
    Included Items

    4 x screws to join two devices for rack mounting
    2 x L-brackets + 8 x screws for 19-inch rack mounting two Splitters (1U) or surface mounting
    1.2 m (3.9 ft.) hard-wired power cable with US-type (NEMA-5-15) plug

    Related Items Martin™ RDM 5.5 Splitter: P/N 90758150
    Accessories Installation hardware:

    Half-coupler clamp: P/N 91602005
    G-clamp:P/N 91602003
    Quick-trigger clamp: P/N 91602007
    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007

    Ordering Information Martin DMX 5.3 Splitter™: P/N 90758140
