Maxedia Compact Rackmount (discontinued)

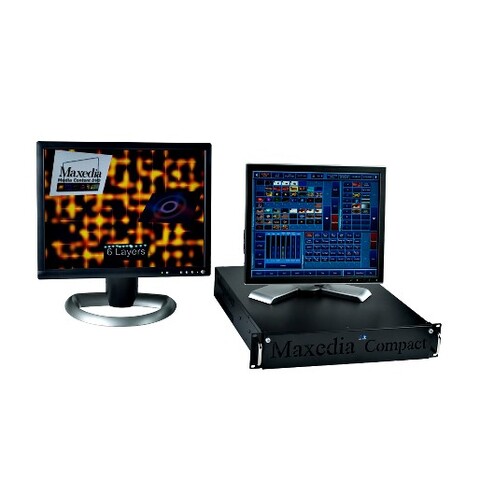

Maxedia Compact Rackmount
Larger Images

Utilizing an intuitive touchscreen-optimized user interface, Maxedia™ is the most user-friendly tool for media composing and playback in all types of applications. Access a vast library of media clips, still images and integrated animations without the need for a complex lighting controller.

Maxedia Compact Rackmount™ is a budget-minded solution with slightly reduced features. Up to twenty layers of SD and HD video media can be placed into a cue and it contains the same amount of content as Maxedia PRO™ for immediate results. Pixel mapping is possible with Maxedia Compact RM™. This is an ideal package for installations, productions and rental companies as it is mounted in a small 2U rack housing.

  • Intuitive user interface
  • 20 x 3D engine layers
  • Pixel mapping for RGB and CMY fixtures


  • Intuitive user interface
  • State-of-the-art video engine
  • Support for H.264/MPEG-4 AVC, MOV and AVI HD professional codecs
  • Pixel accurate video output
  • Multi-screen keystoning and edge blending
  • 20 x 3D engine layers
  • 4 top layers
  • Dozens of effect plug-ins
  • Pixel mapping for RGB and CMY fixtures / DMX out (ArtNet and DMX 512)
  • Composite capture video card included
  • Two video output configurations (Out 1 + GUI or Out 1 + Out 2)
  • Video playback synch between layers and across Maxedia servers


Physical Length: 540 mm (21.3 in.) Width: 482 mm (19.0 in.) Height: 88 mm (3.5 in.) Weight: 13.2 kg (29.1 lbs.)
Control/User Interface Maxxyz/Maxedia family user interface 16 x customizable screen workspace/configurations Touchscreen-compatible user interface Keymapping (cues and transitions assignable to keyboard keys for instant triggering) Fixture patches identical with Maxxyz series, can be imported from Maxxyz DMX Viewer for DMX IN value reports 20 x 3D engine layers (19 user layers + 1 default layer) Static and dynamic effect presets (e.g. blending, moves, effects) Range of 2D and 3D plug-ins, various media Shader and shader media Video cue recording with 256 pages of 256 cues per show Transitions and wipes Output parameter adjustments, keystoning and framing Masking User-friendly multi-screen blending tool Intuitive pixel mapping tool
Playback Video playback resolution: 480i, 480p, 576i, 576p, 720p Video output resolution: From 1024 x 768 to 3840 x 1024* Two video output configurations (out 1 + GUI or out 1 + out 2) Number of media layers: 19 + 1 default in each A/B mixer Number of 'top layers' (overlay): 4 Network synchronization content: Yes Network synchronization playback: Yes Pixel mapping (image pixel to fixture): CMY and RGB Test pattern generator: Integrated Master/client networking with cue/media/timecode synchronization Media files in SD and HD resolution (engine optimized for H.264/MPEG-4 AVC codec, WMV format supported)
Hardware Motherboard: High-end Intel Processor: Multi-core Intel RAM: 2 GB high-speed OS hard drive: 1 x high-capacity Media hard drive: 1 x high-capacity Graphics card: ATI Radeon Capture card: 1 x Composite/S-Video Network card: Onboard 2 x 1 GB LAN
Software Embedded OS, Win XPe user interface Supported media: MPEG-4, H.264, AVI with DV codec in SD quality, WMV, JPEG, BMP Engine optimized for H.264/MPEG-4 AVC, MOV and AVI HD Pixel mapping software for direct DMX out fixture control Worldwide fixture library Media Manager for media import and export MAXNET network system for networking multiple media server and Maxxyz control systems Matrox DualHead2Go- and TripleHead2Go-ready (one per Maxedia Comapct RM system)
Connections Computer I/O: 6 x USB DMX data in/out: 2 x 5-pin female locking XLR Remote network, ArtNet out: 2 x RJ45 User display interface (VGA, 1024x768 minimum): DVI/VGA Playback output: DVI/VGA Digital audio: SPDIF coax Analog audio in: 3.5mm stereo mini-jack Analog audio out: 3.5mm stereo mini-jack Mouse: PS2 Keyboard: PS2
Electrical AC power: 100-240 V nominal, 50/60 Hz
Approvals UL approved EU safety: EN 60950 EU EMC: EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3
Included Items Maxedia Compact RM Media Server Maxedia Quick Start Guide Standard Media Library (images and videos) on 5 DVDs Maxedia OS DVD 1.5 m power cable, 3-pin IEC
Ordering Information Maxedia Compact Rackmount System: P/N 90732570 Maxedia I/O Breakout Box 19": P/N 90732610 Centronic cable for Maxedia I/O Breakout Box: P/N 91613040 Maxedia Flightcase: P/N 91535060 Maxedia Keyboard Drawer with Keyboard: P/N 91613050
