MaxModule Cerebrum (discontinued)

MaxModule Cerebrum
Larger Images

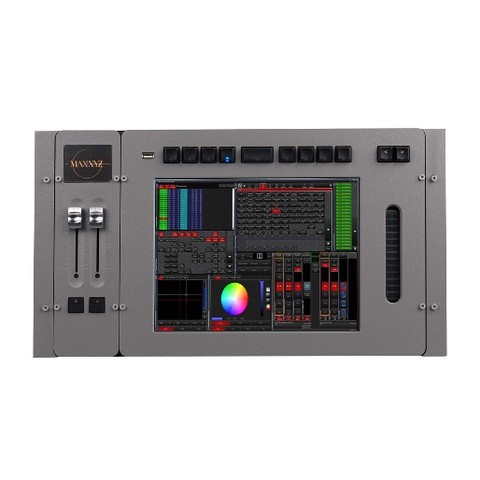

The Cerebrum module is a compact yet powerful touch-screen computer and the heart of the MaxModule concept. It runs the lighting software on Windows XP Embedded which controls the Maxxyz Compact and M-Series. The MaxModule Cerebrum can also be used as a stand-alone unit for control in installations and also functions as a backup system for any Maxxyz, M-Series and M-PC V3 or other Cerebrum module.

Features

  • Industrial motherboard with Pentium M processor
  • Industrial SVGA 12.1_ TFT color touch monitor screen
  • Real-world paradigm intuitive interface (images, dynamic text labels and actuals)
  • Customizable GUI (Graphic User Interface)
  • 16 x view buttons, 2 x view scroll buttons
  • 2 physical DMX universes, expandable to 32 via Artnet or USB/DMX interface
  • Maxxyz Manager for scheduling (astronomical clock) and remote triggering via Internet

Specifications

Physical Length: 275 mm Width: 483 mm Height: 182 mm Weight: 7.3 kg
Control and Programming Protocol: DMX512, Artnet (ACN and RDM pending) 2 physical DMX universes, expandable to 32 via Artnet or USB/DMX interface: 32 universes or 16384 channels from a single Cerebrum: No limit to number of DMX channels per fixture: Extensive fixture library for all known manufacturers: 65000 presets for each group of functions (P/T, color, gobo, etc.): Effect generator for automated programming of complex effects: Customizable highlight and lowlight function to identify individual fixtures: Relative or absolute programming: Fan function for all channels (including timing parameters): On-the-fly global timing changes: Virtual cuelists: Macros: Wait, follow and link cues: HTP, LTP, chase, timecode, submaster and group master playback functionality: Individual parameter timings: Intuitive patch feature: Fixture type cloning: Maxxyz Manager for scheduling (astronomical clock) and remote triggering via Internet:
Control/User Interface Customizable GUI: Grand master fader and button: Flash master fader and button: 16 x view buttons, 2 x view scroll buttons: Customizable highlight/lowlight function: Digital encoder wheels for window scrolling and screen/desk lamp intensity:
Playback Full 16-bit fading for high-resolution fixtures: Individual fade in/fade out times for all playbacks: Manual override available at all times: Live 0-1000% override of global cue timings: Live programmer timing (“Sneak”): Go-function (supports multiple cues simultaneously): Cuelists can be executed in tracking or non-tracking mode:
Hardware Industrial SVGA 12.1” TFT color touch monitor screen: Internal SATA 2.5” hard disk drive: Modular construction: Industrial motherboard with Pentium M processor: Internal Maxxyz software protection dongle:
Software Industrial Windows XP Embedded OS (not user-accessible): Real-world paradigm intuitive interface (images, dynamic text labels and actuals): Show backup on hard disk or USB storage device (not included): Compatible with Martin ShowDesigner:
Connections DMX in: 5-pin locking XLR DMX out: 5-pin locking XLR External monitor screen: VGA (15- pin D-sub female) Artnet for addition of up to 32 DMX universes: Neutrik RJ-45 socket (accepts Neutrik EtherCon connectors in housing) Maxxyz/Maxedia multiple controller link USB: Neutrik RJ-45 socket (accepts Neutrik EtherCon connectors in housing) Ethernet for multiple controller link: Neutrik RJ-45 socket (accepts Neutrik EtherCon connectors in housing) USB devices: USB host socket Desk lamp: 2.5 mm DC bayonet Microphone: 6.3mm (1/4-inch) mono jack Audio in/out: RCA phono AC power input: 3-pin IEC male socket AC power throughput: 3-pin IEC female socket
Electrical AC power: 100-240 V nominal, 50/60 Hz Power supply unit: Auto-ranging electronic switch-mode Main fuses: 2 AT (x 2) Desk lamp output: 12 V AC power output: Unswitched, unfused, max. 6 A
Approvals EU safety: EN 60950 EU EMC: EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3 US safety (pending): UL 60950-1 Canadian safety (pending): CSA C22.2 No. 60950-1
CE ETL C US Intertek
Included Items 1.5 m power cable, 3-pin IEC: 11501012 Ethercon patch cable: 11840144 USB cable (A/B), 1000 mm: 11840066 User manual: 35000223 Recovery DVD, Maxxyz Compact/Cerebrum:
Ordering Information MaxModule Cerebrum: 90732140 M-Series™ Empty Frame in Flightcase: 90732120 M-Series™ Empty Frame in Cardboard Box: 90732130
