MX 1 (discontinued)

MX 1
Larger Images

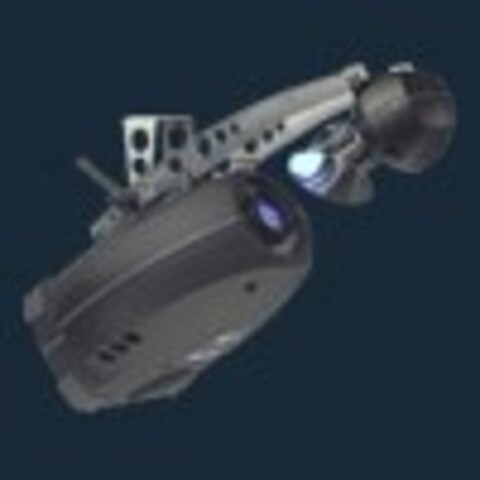

The MX-1 is a revolutionary lightweight scanner with an ultra-modern design that has taken the club and disco scene by storm. Featuring a combined color/gobo wheel for easy operation and quick programming.


  • 10 colors + 3 split colors + white
  • 18 gobos
  • 250W halogen lamp
  • Combined color/gobo wheel
  • Digital dimmer (0-100%)
  • DMX or stand-alone mode
  • Fast and precise mirror movement
  • Futuristic and light-weight design
  • Strobe effect


Physical Length: 537 mm Width: 269 mm Height: 263 mm Weight: 6 kg
Dynamic Effects Color/gobo wheel: 18 gobos (13 with color) + open and blackout Dimmer: 0 - 100% Variable strobe: 1.5 - 6.4 Hz Focus: 2 m to infinity Pan: 230° Tilt: 76.5°
Control and Programming Control options: DMX512, stand-alone, host/client, Martin MC-1 DMX channels: 1/6/7 Stand-alone trigger options: Music trig, auto trig Setting and addressing: DIP switch Pan/tilt resolution: Tracking and vector Transceiver: RS-485 Firmware update: AVR Programmer upload Data input/output: 3-pin XLR - pin 1 shield, pin 2 cold (-), pin 3 hot (+)
Lamp Type: 24 V, 250 W halogen ELC, MR16, integral reflector Approved lamps: Philips ELC 250 (500 hr), OSRAM ELC 250 (50 hr) Socket: GX 5.3 Control: Reduced voltage mode selectable on DIP-switch
Construction Housing: UV-resistant fiber-reinforced composite Color(s): Black Protection rating: IP20
Installation Mounting points: One 13 mm hole and four 6 mm holes in adjustable mounting bracket Orientation: Any Minimum distance to combustible materials: 0.1 m Minimum distance to illuminated surfaces: 0.3 m Minimum clearance around fan and air vents: 0.1 m
Electrical AC input: 3-pin IEC male socket Wiring options: 230/245 V, 50/60 Hz (EU model) Wiring options: 110/120 V, 50/60 Hz (US model)
Thermal Maximum ambient temperature (Ta max.): 40° C Maximum surface temperature, steady state, Ta=45° C: 65° C Total heat dissipation (calculated, +/- 10% at 230 V, 50 Hz / 110 V, 60 Hz): 900 BTU/hr.
Approvals EU EMC: EN 50 081-1, EN 50 082-1 EU safety: EN 60598-1, EN 60598-2-17 Canadian safety: CSA C22.2 No. 166 US safety: ANSI/UL 1573
CE ETL C US Intertek
Included Items 3 m power cable, 3-pin IEC: 11501013 Philips 500 h ELC halogen lamp: 97000107 2 m power cable, 3-pin IEC and Edison connectors: 11501501 User manual: 35000077
Accessories MC-1 Controller, EU: 90718000 MC-1 Controller, US: 90718100 G-clamp: 91602003 Half-coupler clamp: 91602005
Ordering Information MX-1 EU: 90140000 MX-1 US: 90140100
