RUSH CS Series

Indoor rated RGB color mixing linear wash light

RUSH CS Series

The Martin RUSH CS Series is a color LED cove lighting system designed to illuminate interior walls and other indoor spaces. These high output, cost effective lighting strips are a great fit for indoor lobbies, lounges or other spaces. The fixtures offer both basic and advanced control modes, allowing these venues the ultimate flexibility to establish the exact look they need without adding unneeded complexity to the lighting design, installation or operation. Designed to be easy to install and use, the RUSH CS Series is a perfect fit for a variety of applications.

Available in both wide and graze options in varying lengths, integrators can install up to 10 meters on a single Power Supply Unit (PSU). To power the units, the RUSH CS Series uses a hybrid power and data cable system that reduces wiring and installation costs by using a single cable for both power and data.

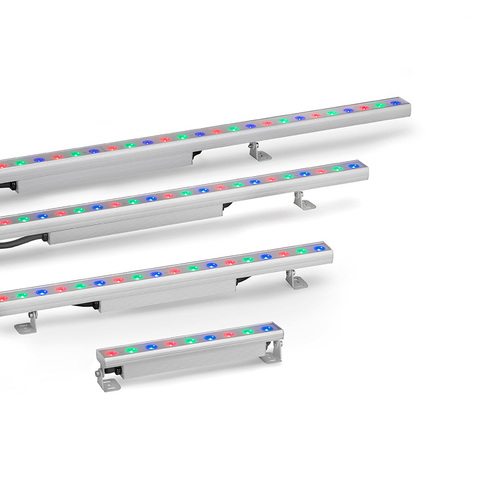

The series is available in a variety of sizes. The RUSH CS 300 Graze and 300 Wide are 303mm ( 11.9 in) in length. The RUSH CS 600 Graze and 600 Wide are 603mm ( 23.7 in) in length. The RUSH CS 900 Graze and 900 Wide are 903mm ( 35.6 in) in length. And the RUSH CS 1200 Graze is 1203mm ( 47.4 in) in length.

  • High-output indoor LED cove lighting fixture
  • Multiple control modes & pre-programmed CTC presets
  • Easy installation of up to 10m on a single PSU

Features

  • CREE XP-E2 R/G/B LED
  • 18 x 65° beam angle—Graze
  • 124° beam angle—Wide
  • Electronic dimming
  • CTC preset control channel
  • Easy mounting bracket system
  • Hybrid power & data in/out
  • DMX and RDM control

Specifications

  • Physical CS300 Wide:

    Length: 303 mm (11.9 in.)
    Width: 46 mm (1.8 in.)
    Height including bracket: 57 mm (2.2 in.)
    Weight: 0.8 kg (1.8 lbs.)

    CS300 Graze:

    Length: 303 mm (11.9 in.)
    Width: 46 mm (1.8 in.)
    Height including bracket: 65 mm (2.6 in.)
    Weight: 1 kg (2.2 lbs.)

    CS600 Wide:

    Length: 603 mm (23.7 in.)
    Width: 46 mm (1.8 in.)
    Height including bracket: 57 mm (2.2 in.)
    Weight: 1.1 kg (2.4 lbs.)

    CS600 Graze:

    Length: 603 mm (23.7 in.)
    Width: 46 mm (1.8 in.)
    Height including bracket: 65 mm (2.6 in.)
    Weight: 1.4 kg (3.1 lbs.)

    CS900 Wide:

    Length: 903 mm (35.6 in.)
    Width: 46 mm (1.8 in.)
    Height including bracket: 57 mm (2.2 in.)
    Weight: 1.5 kg (3.3 lbs.)

    CS900 Graze:

    Length: 903 mm (35.6 in.)
    Width: 46 mm (1.8 in.)
    Height including bracket: 65 mm (2.6 in.)
    Weight: 2 kg (4.4 lbs.)

    CS1200 Wide:

    Length: 1203 mm (47.4 in.)
    Width: 46 mm (1.8 in.)
    Height including bracket: 57 mm (2.2 in.)
    Weight: 1.8 kg (4.0 lbs.)

    CS1200 Graze:

    Length: 1203 mm (47.4 in.)
    Width: 46 mm (1.8 in.)
    Height including bracket: 65 mm (2.6 in.)
    Weight: 2.5 kg (5.5 lbs.)

    Power Supply Unit:

    Length: 302 mm (11.9 in.)
    Width: 195 mm (7.7 in.)
    Height: 58 mm (2.3 in.)
    Weight: 4.2 kg (9.3 lbs.)

    Control and Programming Control systems: DMX, RDM DMX channels: 3, 6 DMX compliance: USITT DMX512/1990 RDM compliance: ANSI E1.20
    Optics CS300/CS600/CS900/CS1200 Wide:

    Light source: Cree XP-E2 RGB LEDs
    Beam angle: 124°
    Minimum LED lifetime: 50 000 hours (to >70% luminous output)*

    CS300/CS600/CS900/CS1200 Graze:

    Light source: Cree XP-E2 RGB LEDs
    Beam angle: 18° x 65°
    Minimum LED lifetime: 50,000 hours (to >70% luminous output)*

    *Figure obtained under manufacturer's test conditions
    Photometric Data CS Wide: (RGB at 100%):

    CS300: 432 lumen
    CS600: 850 lumen
    CS900: 1326 lumen
    CS1200: 1760 lumen

    CS Graze: (RGB at 100%):

    CS300: 455 lumen
    CS600: 926 lumen
    CS900: 1305 lumen
    CS1200: 1710 lumen

    * All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.

    Construction Housing: Aluminum Finish: Clear anodized (standard) or white (optional) Lens: Frosted polycarbonate Ingress protection: IP20 RoHS compliant
    Installation Mounting: Direct with included brackets and user-supplied fasteners Orientation: Any Minimum distance to illuminated surfaces: 0.2 m (8 in.)
    Connections Mains input: C13 IEC 60320 DMX in/out: 5-pin XLR Fixture DC power and data in, thru: 6-pin custom connectors
    Electrical AC power: 100-240 V nominal, 50/60 Hz DC output voltage: 36 V Maximum output current: 12 A Power supply unit: Auto-ranging electronic switch-mode Maximum power consumption: 485 W Mains inlet fuse: T 6.3 A, 250 V
  • Typical Power and Current Fixture power consumption: 12 W per foot +/- 1 W, PF 0.97 +/- 0.05 Power figures are typical, not maximum. Measurements made at nominal voltage. Allow for +/- 10% deviation. PF = Power factor.
    Thermal Maximum surface temperature: 55° C (131° F) Cooling: Convection Maximum ambient temperature (Ta max.): 40° C (104° F) Minimum ambient temperature (Ta min.): -30° C (-22° F)
    Environmental RoHS: Compliant REACH: Compliant WEEE: Compliant Proposition 65: Compliant
    Approvals PSU:

    EU Safety: EN60950-1
    EU EMC: EN 61000-4-2, EN61000-4-4, EN61000-4-5
    US Safety: UL60950-1
    US EMC: CFR 47 Part 15 Class A
    Australia/NZ: Pending

    Wide & Graze fixture:

    EU Safety: EN60598-2-1, EN62031, EN61347-1, EN61347-2-11, EN 62471, EN62493
    EU EMC: EN55015, EN55103-2, EN55032, EN61000-3-2, EN61000-3-3, EN61547, EN61000-4-2, EN61000-4-4, EN61000-4-5
    US Safety: UL 2018
    US EMC: CFR 47 Part 15 Class A
    Canadian Safety: CSA C22.2 No. 9.0
    Australia/NZ: Pending

    Included Items Power cables (supplied with RUSH CS Series PSU):

    Power input cable, US type: IEC C13 female to NEMA 5-15P male, 1.5 m (4.9 ft.)
    Power input cable, universal: IEC C13 female to bare ends, 1.5 m (4.9 ft.)

    User manual
    Two adjustable mounting brackets

    Related Items Martin Companion Cable: P/N 91616091 Martin Companion Software Suite (including firmware uploader)
    Accessories Cables:

    Power + Data Extension Cable with 6-pin custom connectors, 1 m (3.3 ft.): P/N 91611846
    Power + Data Extension Cable with 6-pin custom connectors, 5 m (16.4 ft.): P/N 91611847
    Power + Data Extension Cable with 6-pin custom connectors, 10 m (32.8 ft.): P/N 91611848

    Ordering Information Wide Lighting Fixtures:

    RUSH® CS300 Wide, 124° (1 ft., RGB): P/N 90480175
    RUSH® CS600 Wide, 124° (2 ft., RGB): P/N 90480185
    RUSH® CS900 Wide, 124° (3 ft., RGB): P/N 90480195
    RUSH® CS1200 Wide, 124° (4 ft., RGB): P/N 90480205

    Graze Lighting Fixtures:

    RUSH® CS300 Graze, 18°x 65° (1 ft., RGB): P/N 90480170
    RUSH® CS600 Graze, 18°x 65° (2 ft., RGB): P/N 90480180
    RUSH® CS900 Graze, 18°x 65° (3 ft., RGB): P/N 90480190
    RUSH® CS1200 Graze, 18°x 65° (4 ft., RGB): P/N 90480200

    Power Supply Unit : RUSH® CS Series PSU: P/N 90480210
