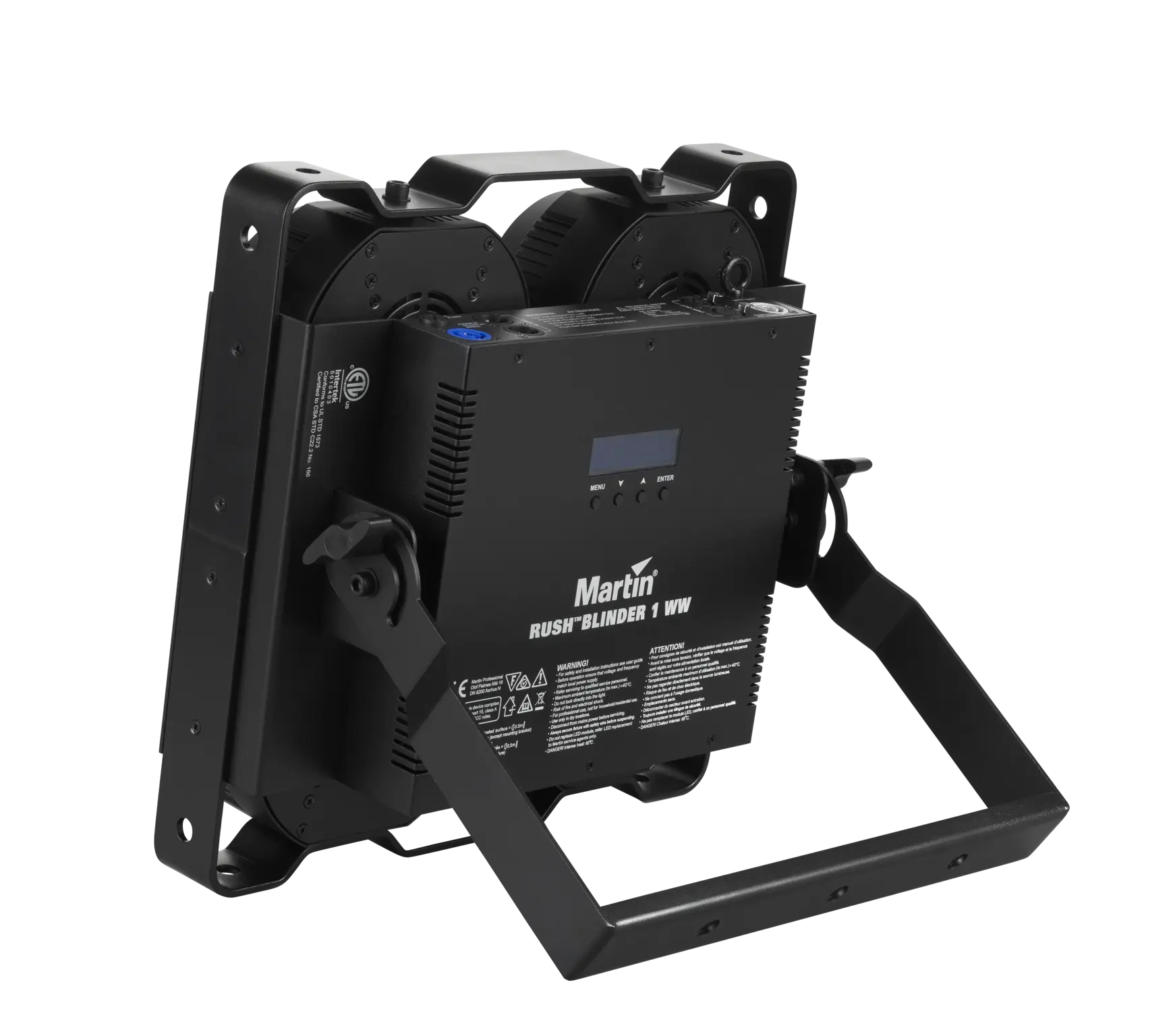

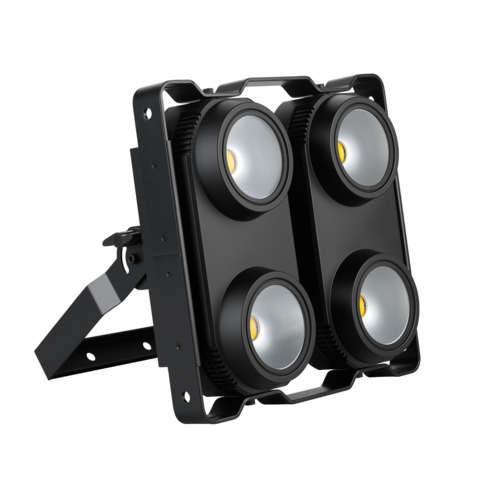

RUSH BLINDER 1 WW

2x2 100W LED WARM WHITE BLINDER

Martin rush blinder1ww 1 2048px vert medium
Larger Images

The RUSH BLINDER 1 WW is an ultra-bright quad LED blinder fixture. The 2x2 blinder features a PAR array with four individually-controllable 100 watt COB warm white LEDs, providing high-intensity light for a variety of entertainment events. The unique frame on the RUSH BLINDER 1 WW offers the ability to attach multiple fixtures together in a grid pattern. With individually-controllable COBs, multiple units can be used to create pixel effects across a grid of fixtures, with on-board electronic dimming and strobe also available.

The fixture offers a wide 70° beam angle, with a combined 19,000+ lumens output from the fixture for truly brilliant effects. The rugged, lightweight construction and available brackets for floor or truss mounting make the RUSH BLINDER 1 WW ideal for live shows, TV events, stage, concerts, and nightclubs.

  • Ultra-bright 2x2 100W LED blinder with individually-controllable LEDs
  • Unique frame allows multiple fixtures to be mounted together
  • Wide 70° beam angle for broad coverage

Features

  • 2x2 100W COB warm white LEDs
  • 19,000+ lumens output
  • Full pixel control of individual COBs
  • Unique frame offers grid installation
  • 70° beam angle
  • Electronic dimming and strobe
  • Brackets are available for floor or truss mounting
  • Lightweight construction (5 kg / 20.9 lbs.)

Tech Specs

PhysicalDimensions (L x W x H): 400 x 441 x 177 mm (15.7 x 17.4 x 7.0 in.)Weight: 9.5 kg (20.9 lbs.)
Dynamic EffectsDimming: 0 – 100%, coarse & fine controlShutter: Strobe & pulse effects, instant open and blackout
Control and ProgrammingControl system: USITT DMX512/1990 with RDMDMX channels: 1, 4 or 8RDM compliance: ANSI/ESTA E.120Interface: Control panel with backlit LCD display
OpticsBeam angle: 70°
ConstructionColor: BlackHousing: High impact flame retardant thermoplastic and aluminiumIP rating : IP 20
InstallationMounting points : Adjustable bracket, surface or truss mountLocation: Indoor location onlyOrientation: AnyMinimum distance to illuminated surfaces: 0.5 m (20 in.)Minimum distance to combustible materials: 0.1 m (4 in.)
ConnectionsAC power input/output: Neutrik PowerConDMX & RDM data in/out : 3-pin and 5-pin locking XLR
ElectricalAC power: 100-240 V nominal, 50/60 HzPower supply unit: Auto-ranging electronic switch modeFuse: T 250 V 6.3 AMaximum total power consumption: 448 WTypical half-cycle RMS inrush current at 240V, 50Hz: 15.5 ARecommended Miniature Circuit Breaker when power linking* : Type D*Per IEC 60898/UL489/CSA C22.2 No. 5
Typical Power and Current100 V, 60 Hz: 432 W, 4.3 A, PF 0.998120 V, 60 Hz: 428 W, 3.6 A, PF 0.996230 V, 50 Hz: 426 W, 1.9 A, PF 0.956Measurements made at nominal voltage. Figures are typical, not maximum, allow for a deviation of +/- 10%.
ThermalCooling: ConvectionMaximum ambient temperature (Ta max.): 40° C (104° F)Minimum ambient temperature (Ta min): 0°C (32° F)
ApprovalsEU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493EU EMC: EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547US safety: UL 1573US EMC: 47 CFR 15 Class ACanadian safety : CSA C22.2 No. 166Canadian EMC : ICES-003 Class AAustralia/NZ: RCM

Included ItemsPower cable, 1.5 m without mains plug
AccessoriesInstallation hardwareHalf-coupler clamp: P/N 91602005G-clamp (vertical hanging suspension only): P/N 91602003Quick-trigger clamp (vertical hanging suspension only) :P/N 91602007Safety cable, 60Kg, BGV C1: P/N 91604006Cables, 16 A, for connection to power in chainsPower relay cable 3 x 2.5 mm2, H07RN-FPOWCON-POWCON 1.2 m (3.9 ft.) : P/N 91611798Power relay cable 3 x 14 AWG, SJOOWPOWCON-POWCON 1.2m (3.9 ft.) : P/N 91610175Power relay cable 3 x 2.5 mm2, H07RN-FPOWCON-POWCON 2.5m (8.2 ft.): P/N 91611799Power relay cable 3 x 14 AWG,SJOOWPOWCON-POWCON 2.5m (8.2 ft.) : P/N 91610176Cables, 16 A, for power inputPower input cable 3 x 2.5 mm2, H07RN-FOPEN-POWCON 1.5 m (4.9 ft.): P/N 91611800Power input cable 3 x 14 AWG, SJOOWOPEN-POWCON 1.5 m (4.9 ft.): P/N 91610177Power input cable 3 x 2.5 mm2, H07RN-FOPEN-POWCON 5.0 m (16.4 ft.): P/N 91611801Power input cable 3 x 14 AWG, SJOOWOPEN-POWCON 5.0 m (16.4 ft.): P/N 91610178(H07RN-F are European approved cables, SJOOW are US approved cables)Power connectorsPower Connector PowerCON Male: P/N 91611795Power Connector PowerCON Female : P/N 91611794
Related ItemsMartin M-DMX with Martin Companion Uploader Software
Ordering InformationRUSH BLINDER 1 WW in cardboard box: P/N 90480150
