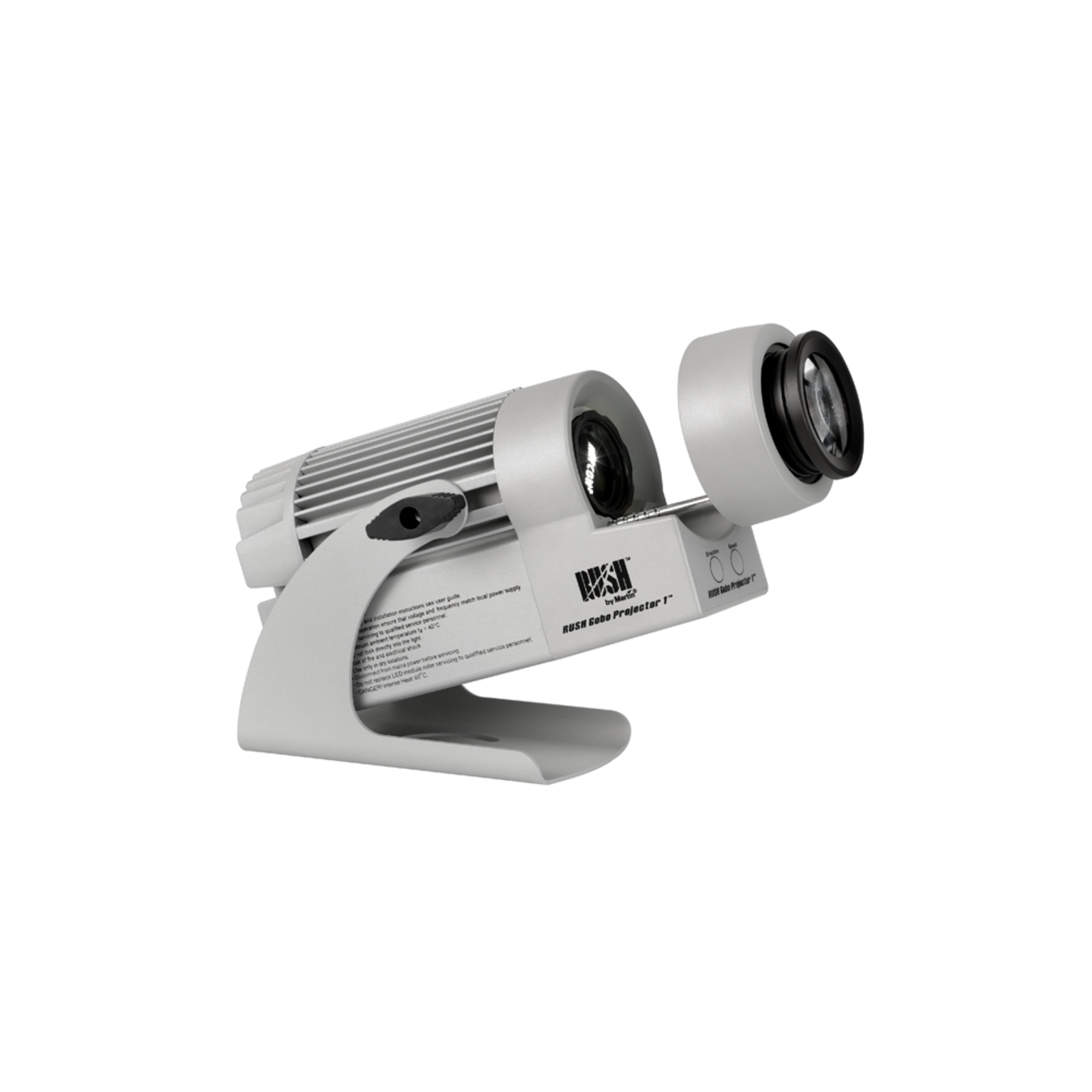

RUSH Gobo Projector 1 (discontinued)

Larger Images

The RUSH Gobo Projector 1 is ideal for applications that require a compact fixture for easy LED gobo projection. Ideal for clubs, bars, restaurants and shopping malls, this silent gobo projector provides easy adjustment of focus. Speed and direction is controlled by easy-touch buttons, and the magnetic gobo holder makes it easy to change gobos in seconds.

  • Compact LED gobo projection with silent operation
  • Quick gobo change
  • Easy adjustment of focus, speed and direction

Videos

RUSH Gobo Projector 1



RUSH Gobo Projector 1



Features

  • Compact LED gobo projection with silent operation
  • Quick gobo change
  • Easy adjustment of focus, speed and direction

Specifications

PhysicalLength: 215 mm (8.5 in.)Width: 135 mm (5.4 in.)Height: 152 mm (6.0 in.)Weight: 2 kg (11.0 lbs.)
Dynamic EffectsGobo projection: Static or rotating gobo operationFocus: Manual
OpticsLight source: 20 W LED arrayBeam angle: 17°Minimum LED lifetime*: 30 000 hours (to >70% luminous output)*Manufacturer's figure obtained under test conditions
ConstructionColor: SilverProtection rating: IP20
GoboSize: E24 (Size E, max. image diameter 24 mm)Recommended material: Steel or glassOutside diameter: 37.5 mm +0/-0.2 mmMaximum image diameter: 24 mmMaximum thickness: 3 mm
InstallationMounting: Adjustable folding bracket, surface or truss mountLocation: Indoor use only, must be fastened to surface or structureOrientation: Any
ConnectionsAC power: IEC
ElectricalAC power: 100-240 V, 50/60 HzPower consumption: 20 W
ThermalMaximum ambient temperature (Ta max.): 40° C (104° F)Minimum ambient temperature (Ta min.): 0° C (32° F)Total heat dissipation*: 70 BTU/hr.*Calculated, +/- 10%, at full intensity
ApprovalsEU safety: EN 60598-2-1 (EN 60598-1), EN 62471, EN 62493EU EMC: EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547US safety: UL 122US EMC: FCC Part 15 Class ACanadian safety: CSA C22.2 No. 118-1959Canadian EMC: ICES-003 Class AAustralia/NZ: C-TICK N4241

Included ItemsMounting bracketPower cable, 1.5 m, without mains plug (US model includes mains plug)
Related ItemsRUSH™ Software Uploader 1: P/N 91611399
Ordering InformationRUSH Gobo Projector™ in cardboard box, EU model: P/N 90480060RUSH Gobo Projector ™ in cardboard box, US model: P/N 90480065
