RUSH MH 10 Beam FX

Super Compact LED beam light with RGBW color mixing and LED pixel ring

Larger Images

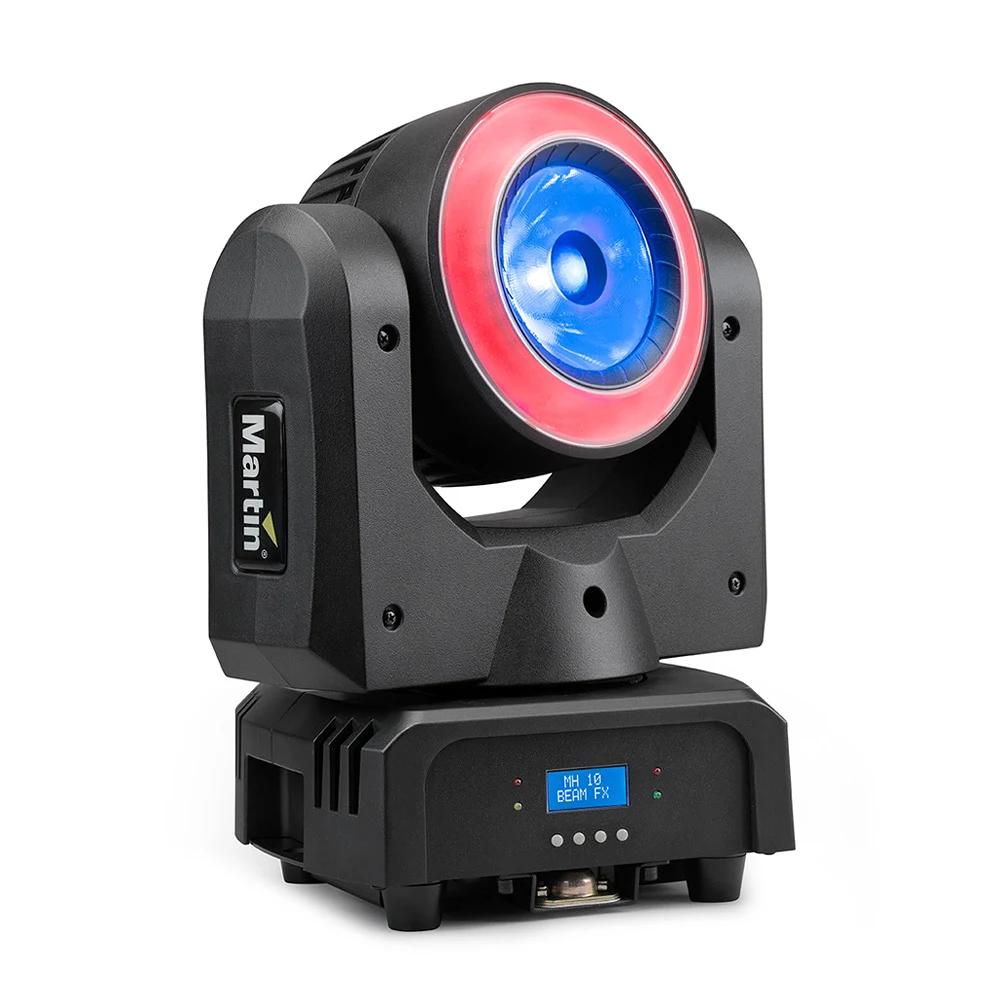

The Martin RUSH MH 10 Beam FX is a compact 60W RGBW LED Beam moving head fixture with an independent, built-in LED ring. With 24 individually-controllable RGB LEDs surrounding a central beam lens, the RUSH MH 10 FX offers a variety of exciting visual effect possibilities at an affordable price.

The Martin RUSH MH 10 Beam FX uses a collimator lens design, creating a striking, high-intensity look on stage. The OSRAM OSTAR LEDs on the MH 10 Beam offers excellent color mixing with Martin MAC Aura, RUSH MH 6, and RUSH Par 2 fixtures. Independent control of the ring LEDs also allows the fixture to easily blend into on-stage LED video elements.

Other features include continuous pan and tilt and lightweight build, providing a number of interesting rigging possibilities and high-speed looks. The Martin RUSH MH 10 is a perfect fit for nightlife, houses of worship, cruise ships and small-to-medium touring and rental customers.

  • Collimator lens for a super-tight 4.5° high intensity beam
  • LED ring with 24 independently-controllable LEDs
  • Continuous pan/tilt for unrestricted movement and high-speed looks

Features

  • Bright 60 W Osram RGBW LED engine
  • Collimator lens with tight 4.5° beam angle
  • Ambient glow ring with 24 individually pixel-controllable RGB LEDs
  • Electronic dimming and Strobe
  • Temperature-controlled fan cooling
  • Unlimited Pan & Tilt rotating
  • 3 + 5 pin XLR DMX connection
  • Neutrik TRUE 1 in and thru socket
  • Compact size—L: 275 x W: 188 x H: 325 mm / L: 10.8 x W: 7.4 x H: 12.8 in
  • Low weight—7.5 kg/16.5 lbs.

Specifications

  • Physical Length: 275 mm (10.8 in.) Width: 188 mm (7.4 in.) Height: 325 mm (12.8 in.) Weight: 7.5 kg (16.5 lbs.)
    Dynamic Effects Electronic shutter effect: Strobe effect, pulse effects, instant open and blackout (independent in beam and ring) Beam color mixing: RGBW Pre-programmed effects: FX (effect macros) in ring with variable speed and direction of sequences, synchronization and chases across multiple fixtures Ring color mixing: RGB, grouped or individual control of 24 cells Virtual color wheel: 33 color presets, virtual color wheel rotation effects, random color (independent in beam and ring) Pan: 540° Tilt: 270° Pan and tilt speed: Adjustable via onboard control panel and DMX Dimming: 0-100%, coarse and fine control (independent in beam and ring) Pan and tilt rotation effect: Constant, variable speed and direction
    Control and Programming Control options: DMX, RDM, stand-alone, master/slave Setting and addressing: Control panel with backlit LCD display DMX channels: 24 or 93 Stand-alone trigger options: Music trig, auto trig DMX compliance: USITT DMX512/1990 RDM compliance: ANSI/ESTA E1.20
    Optics Beam effect light source: 60 W RGBW Osram LE RTDUW S2WP Ring effect light source: 24 x 0.25 W RGB LEDs Cutoff beam angle: 4.4° Minimum LED lifetime: 20,000 hours to >70% luminous output* *Under manufacturer's test conditions.
    Construction Housing: High-impact flame-retardant thermoplastic Color: Black Protection rating: IP20
    Installation Minimum clearance around fan and air vents: 100 mm (4 in.) Mounting points: Two quarter-turn omega brackets for rigging clamps Location: Indoor use only, must be fastened to surface or structure Orientation: Any Minimum distance to combustible materials: 100 mm (4 in.) Minimum distance to illuminated surfaces: 200 mm (8 in.)
    Connections AC power in, thru: Neutrik TRUE1 DMX data in, thru: 3-pin and 5-pin locking XLR
  • Electrical AC power: 100-120 / 200-240 V nominal, 50/60 Hz Power supply unit: Auto-ranging electronic switch mode
    Typical Power and Current 120 V, 60 Hz: 0.85 A, 100 W, PF 0.99 230 V, 50 Hz: 0.49 A, 108 W, PF 0.99 Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.
    Thermal Cooling: Forced air (temperature-regulated, low noise) Maximum ambient temperature (Ta max.): 40° C (104° F) Minimum ambient temperature (Ta min.): 0° C (32° F) Total heat dissipation (calculated, +/- 10%): 1300 BTU/hr. (at full intensity, full white)
    Approvals EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493 EU EMC: EN 55103-1, EN 55103-2, EN 61000-3-2, EN 61000-3-3 US safety: UL 1573 US EMC: CFR Title 47 Part 15 Class A Canadian safety: CSA C22.2 No. 166 Canadian EMC: ICES-003 Class A Australia/NZ: RCM (pending)
    Included Items Power cable, 1.5 m (4.9 ft.), without mains plug
    Accessories Cables, 16 A, for connection to power in chains:

    Power input cable, H07RN-F, 2.5 mm², 14 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91611797
    Power input cable, H07RN-F, 2.5 mm², 14 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91611786
    Power input cable, SJOOW, 12 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91610173
    Power input cable, SJOOW, 12 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91610174

    Cables, 16 A, for relaying power in chains:

    Power relay cable, H07RN-F, 2.5 mm², TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91611784
    Power relay cable, H07RN-F, 2.5 mm², TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91611785
    Power relay cable, H07RN-F, 2.5 mm², TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91611796
    Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91610170
    Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91610171
    Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91610172

    Connectors:

    Power connector, cable mount, Neutrik TRUE1 NAC3FX-W (female): P/N 91611789
    Power connector, cable mount, Neutrik TRUE1 NAC3MX-W (male): P/N 91611788

    Installation hardware:

    G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
    Quick trigger clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
    Half-coupler clamp: P/N 91602005
    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007

    Related Items Martin™ RDM 5.5 Splitter: P/N 90758150 Martin Companion Cable: P/N 91616091 Martin Companion Software Suite (including firmware uploader) Free download from www.martin.com
    Ordering Information RUSH® MH 10 Beam FX in cardboard box: P/N 90280120
