RUSH PAR 3 RGB

SINGLE LENS WASH WITH PREMIXED COLOR

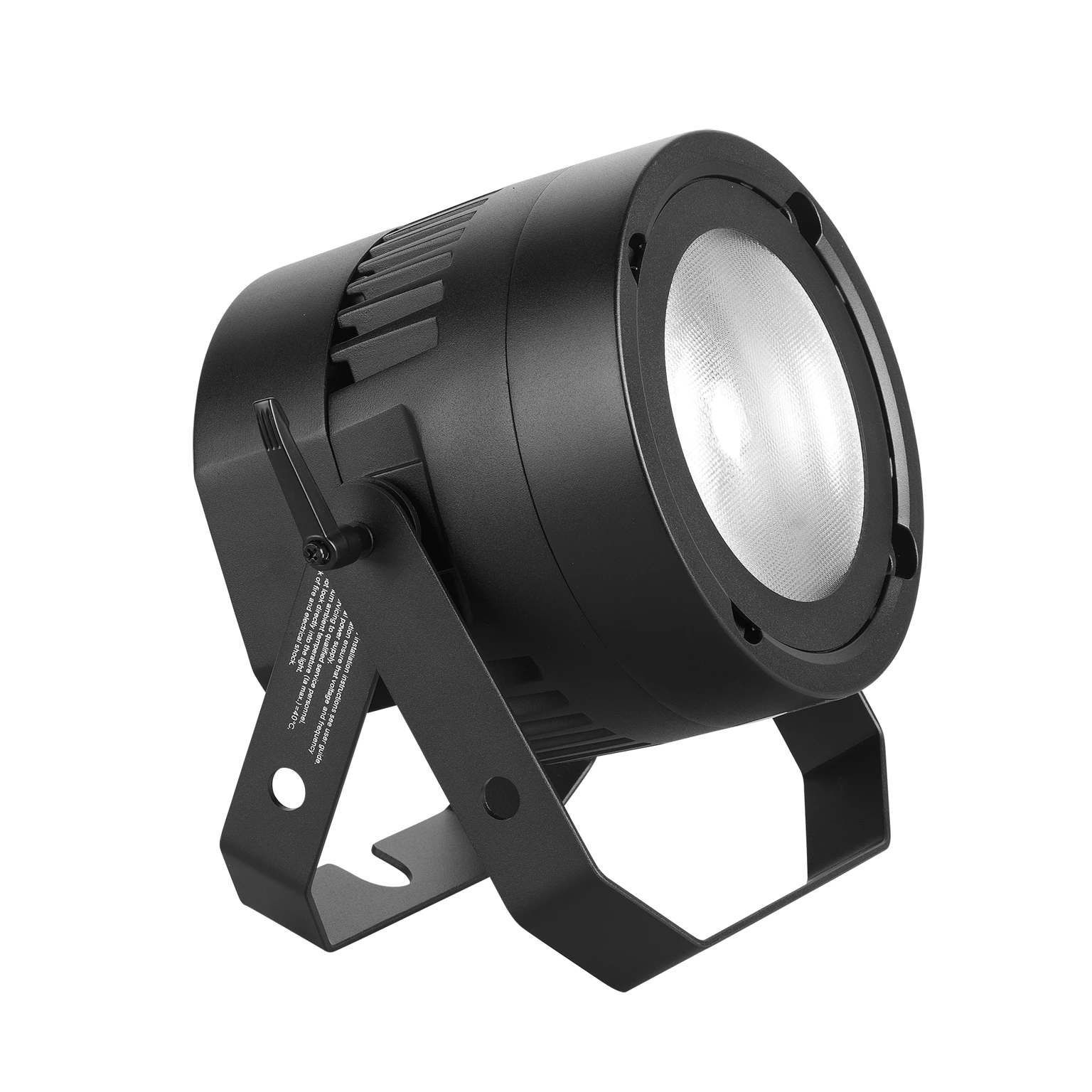

Martin rush par3rgb 1 2048px vert medium
Larger Images

The RUSH PAR 3 RGB is a bright single-lens color LED PAR can light fixture. With a 36 watt COB RGB LED, the RUSH PAR 3 RGB offers fully premixed color for use in wash and key lighting applications. A magnetically attached beam angle reducer lens allows the RUSH PAR 3 RGB to offer both 80° and 14° beam angle options, and the fanless design provides quiet operation in sound-sensitive environments.

The RUSH PAR 3 RGB includes electronic dimming and strobe, a bracket for floor or truss mounting, and a rugged, lightweight aluminum construction, making it ideal for live shows, performing arts, house of worship, bars, nightlife, and architectural installations. A version finished in white is also available for décor matching.

  • Single-lens 36W LED PAR with premixed color
  • Removable magnetic lens for multiple beam angles
  • Fanless design for quiet operation

Features

  • 36 watt COB RGB LED
  • Fully premixed color
  • Magnetically attached removable beam angle reducer lens
  • 80° and 14° beam angles
  • Electronic dimming and strobe
  • Fanless design for quiet operation
  • Bracket suitable for floor or truss mounting
  • Lightweight aluminum construction (4 kg / 7.5 lbs.)

Tech Specs

PhysicalDimensions (L x W x H): 250 x 265 x 165 mm (9.4 x 10.6 x 6.5 in.)Weight: 3.4 kg (7.5 lbs.)
Dynamic EffectsDimming: 0 – 100%, coarse & fine controlShutter: Strobe & pulse effects, instant open and blackoutColor: 8 bit RGB color mix
Control and ProgrammingControl system: USITT DMX512/1990 with RDMDMX channels: 9RDM compliance: ANSI/ESTA E.120Interface: Control panel with backlit LCD display
OpticsBeam / field angle without lens : 83°/106°Beam / field angle with lens : 14.5°/33°
ConstructionColor: BlackHousing: Cast aluminumIP rating : IP 20
InstallationMounting points : Adjustable bracket, surface or truss mountLocation: Indoor location onlyOrientation: AnyMinimum distance to illuminated surfaces: 0.5 m (20 in.)Minimum distance to combustible materials: 0.1 m (4 in.)
ConnectionsAC power input/output: Neutrik PowerConDMX & RDM data in/out : 5-pin locking XLR
ElectricalAC power: 100-240 V nominal, 50/60 HzPower supply unit: Auto-ranging electronic switch modeMaximum total power consumption: 30 WTypical half-cycle RMS inrush current: 7.8 ARecommended Miniature Circuit Breaker when power linking* : Type D*Per IEC 60898/UL489/CSA C22.2 No. 5
Typical Power and Current100 V, 60 Hz: 30 W, 0.5 A, PF 0.615120 V, 60 Hz: 30 W, 0.4 A, PF 0.599230 V, 50 Hz: 30 W, 0.3 A, PF 0.496Measurements made at nominal voltage. Figures are typical, not maximum, allow for a deviation of +/- 10%.
ThermalCooling: Forced air, temperature-regulatedMaximum ambient temperature (Ta max.): 40° C (104° F)Minimum ambient temperature (Ta min): 0°C (32° F)
ApprovalsEU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493EU EMC: EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547US safety: UL 1573US EMC: 47 CFR 15 Class ACanadian safety : CSA C22.2 No. 166Canadian EMC : ICES-003 Class AAustralia/NZ: RCM

Included ItemsPower cable, 1.5 m without mains plugPrismatic lens
AccessoriesInstallation hardwareHalf-coupler clamp: P/N 91602005G-clamp (vertical hanging suspension only): P/N 91602003Quick-trigger clamp (vertical hanging suspension only) :P/N 91602007Safety cable, 60Kg, BGV C1: P/N 91604006Cables, 16 A, for connection to power in chainsPower relay cable 3 x 2.5 mm2, H07RN-FPOWCON-POWCON 1.2 m (3.9 ft.) : P/N 91611798Power relay cable 3 x 14 AWG, SJOOWPOWCON-POWCON 1.2m (3.9 ft.) : P/N 91610175Power relay cable 3 x 2.5 mm2, H07RN-FPOWCON-POWCON 2.5m (8.2 ft.): P/N 91611799Power relay cable 3 x 14 AWG,SJOOWPOWCON-POWCON 2.5m (8.2 ft.) : P/N 91610176Cables, 16 A, for power inputPower input cable 3 x 2.5 mm2, H07RN-FOPEN-POWCON 1.5 m (4.9 ft.): P/N 91611800Power input cable 3 x 14 AWG, SJOOWOPEN-POWCON 1.5 m (4.9 ft.): P/N 91610177Power input cable 3 x 2.5 mm2, H07RN-FOPEN-POWCON 5.0 m (16.4 ft.): P/N 91611801Power input cable 3 x 14 AWG, SJOOWOPEN-POWCON 5.0 m (16.4 ft.): P/N 91610178(H07RN-F are European approved cables, SJOOW are US approved cables)Power connectorsPower Connector PowerCON Male: P/N 91611795Power Connector PowerCON Female : P/N 91611794
Related ItemsMartin M-DMX with Martin Companion Uploader Software
Ordering InformationRUSH PAR 3 RGB in cardboard box: P/N 90480130RUSH PAR 3 RGB/WHITE in cardboard box : P/N 90480135

Downloads

Filename Version Language Size Uploaded
Compliances
Download 17 RUSH PAR 3 RGB - Listing Verification en  284 KB Apr 12, 2018
Download 17 RUSH PAR 3 RGB - Déclaration de Conformité fr  176 KB Apr 12, 2018
Download 17 RUSH PAR 3 RGB - Declaration of Conformity en  171 KB Apr 12, 2018
3D Symbols
Download 17 RUSH PAR 3 RGBW - 3D dimensions.3DS en  3.55 MB Mar 21, 2018
Download 17 RUSH PAR 3 RGBW - 3D dimensions.DWG en  2.26 MB Mar 21, 2018
Illustrations
Download 17 RUSH PAR 3 RGBW - 2D dimensions.PDF en  1.6 MB Mar 21, 2018
Download 17 RUSH PAR 3 RGBW - 2D dimensions.DWG en  6.32 MB Mar 21, 2018
Manuals
Download 17 RUSH PAR 3 RGB - Manuel d 'utilisation fr  901 KB Apr 12, 2018
Download 17 RUSH PAR 3 RGB - Bedienungsanleitung de  893 KB Apr 12, 2018
Download 17 RUSH PAR 3 RGB - User Manual en  1.16 MB Apr 12, 2018
Specifications
Download 17 RUSH PAR 3 RGBW - Photometrics en  2.99 KB Mar 22, 2018
Download 17 RUSH PAR 3 RGB Spec Sheet-English   en  439 KB Jul 09, 2018
