VDO Fenix 6 (discontinued)

Larger Images

The VDO Fenix 6 is the first in the family of touring-friendly outdoor LED video panels with 6 mm pixel pitch and full cross-rental compatibility. The robust and ergonomic frame eliminates the need to use an add-on touring frame and allows for fast and easy build-up of LED video walls. VDO Fenix 6 is driven by the award-winning Martin P3 System Controller family that also controls Martin’s creative LED video products, ensuring bright and optimal image quality in a variety of outdoor (and indoor) rental applications. All panels leaving our factory in Denmark are calibrated to match existing panels, making them highly cross-rentable.



  • Robust and touring-friendly - ready to tour straight from the box
  • Easy to assemble and configure - requires just one person
  • Fully calibrated for optimal image quality and full cross-rental compatibility

Features

  • 6 mm pixel pitch

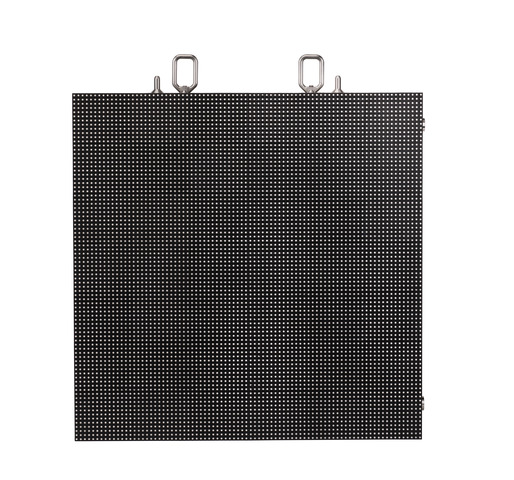

  • 576 x 576mm panel

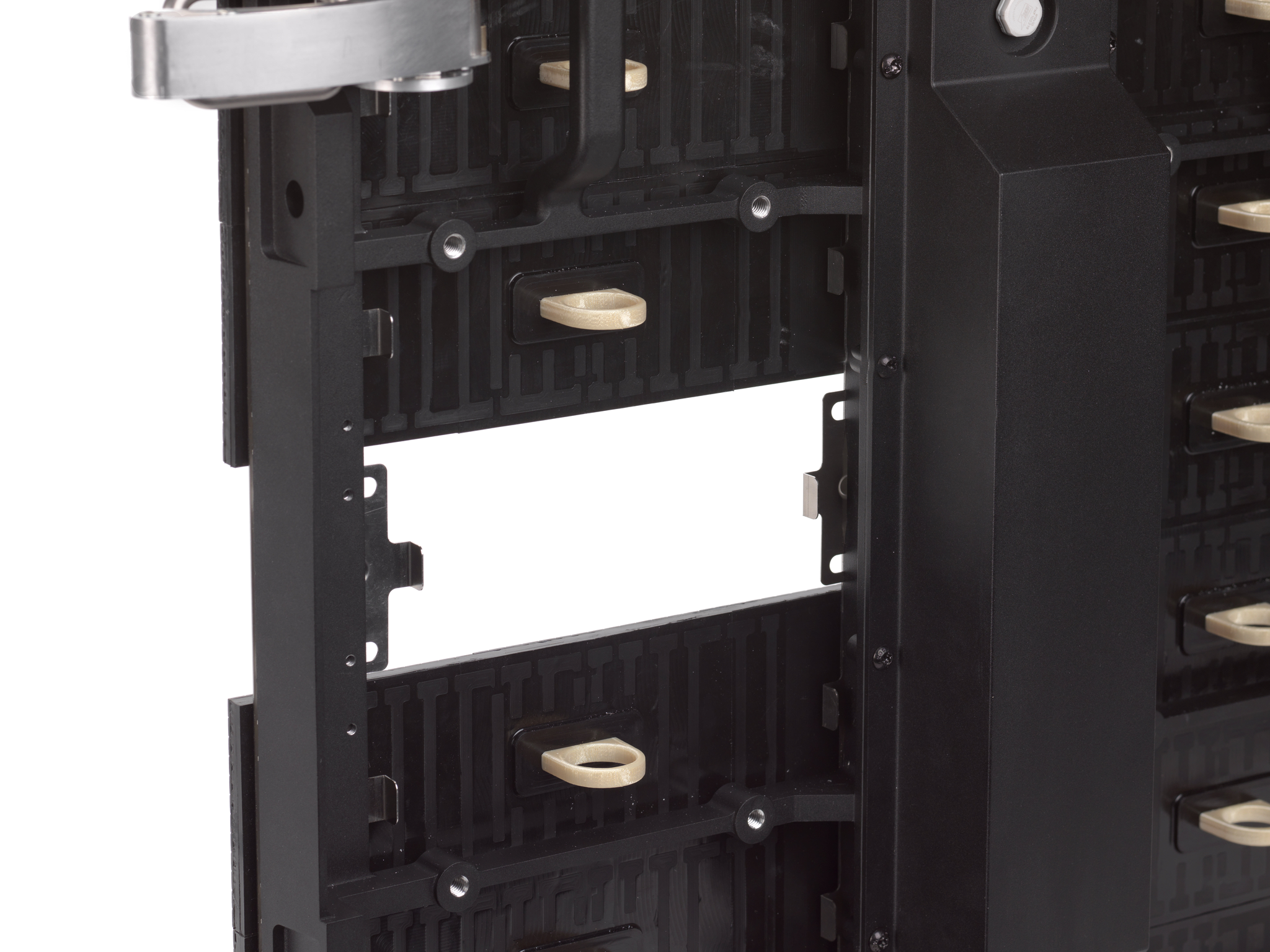

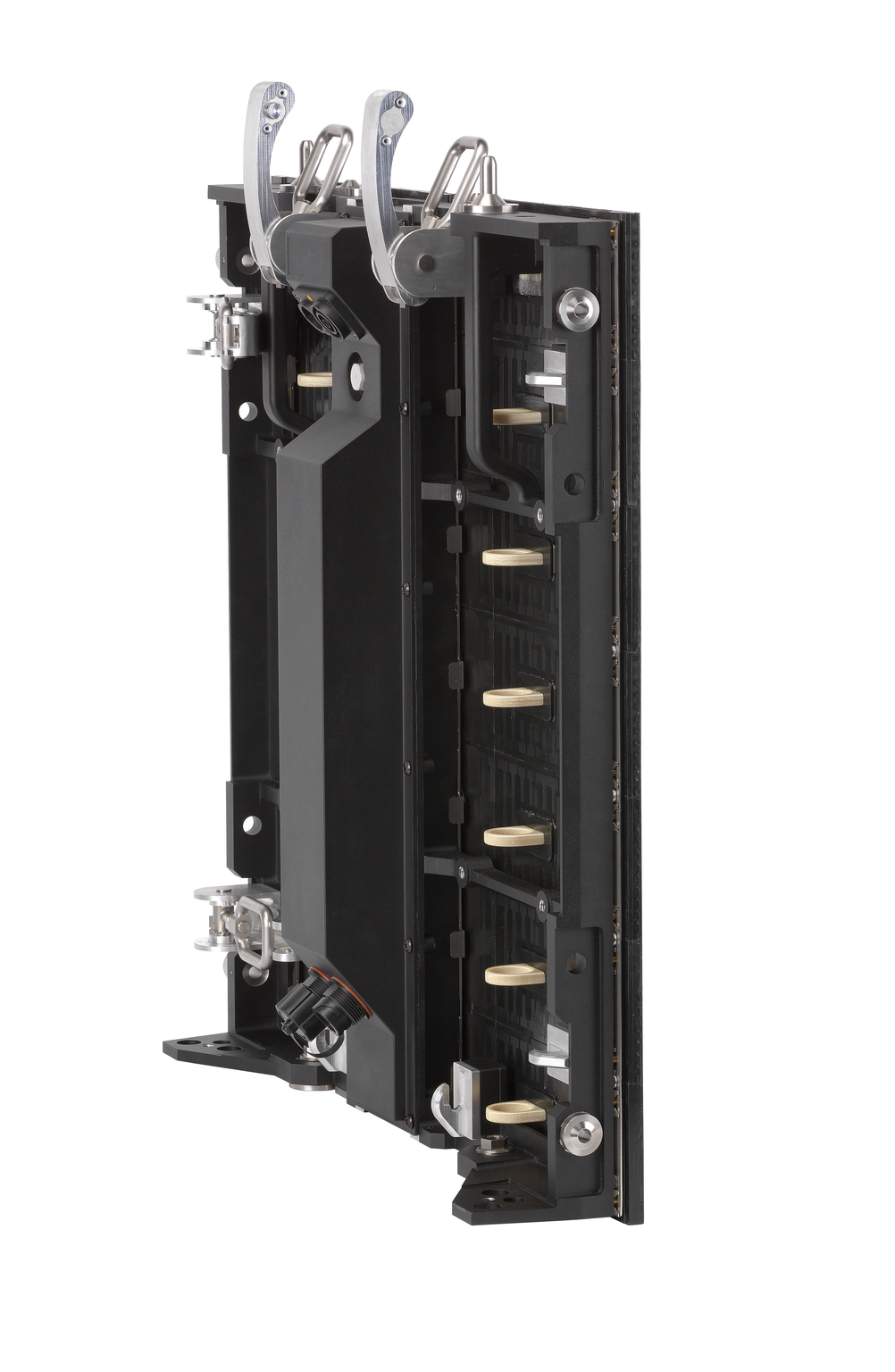

  • Robust casted frame with “touring-ready” mechanics
  • Approx. 36 kg per SQM
  • Bright for outdoor use
  • 48 bit per pixel processing
  • PowerCON True-1 Power In & True connector (200-240V)

Tech Specs

Physical Height: 576 mm (22.7 in.) Depth: 100 mm (4 in.) Weight: 12.4 kg (27.4 lb.) Width: 576 mm (22.7 in.)
Control/User Interface Device status: Multicolor status LED Device test and reset: Pushbutton to call up local test patterns and reset device
Photometric Data Pitch (pixel center-to-center): 6.857 mm Total output (max.): 5500 Nit (calibrated Color resolution: 16 bits per color (48 bit per pixel) Resolution, one panel: 84 x 84 pixels Pixels per panel: 7056 Color and intensity calibration: Pixel-level
Video Processing Video signal processor: Martin P3-100™, P3-200™, P3-300™ or P3-PC System Controller System processing depth: 16 bits per color (48 bit per pixel) Refresh rate: 10 500 Hz Calibration: Per-pixel color and brightness, stored inside each LED block for easy service System latency: Progressive 1 frame, Interlaced 3 frames Latency between first and last panel: None Frame synchronization to analog signal or genlock: Yes, integrated in P3 System Controller Image rotation: Yes, integrated in P3 System Controller Scaling: Yes, integrated in P3 System Controller De-interlacing: Yes, integrated in P3 System Controller Gamma curve selection and adjustment: Yes, integrated in P3 System Controller Real-time panel content remapping: Yes, integrated in P3 System Controller Color temperature control: Yes, integrated in P3 System Controller Color space control: Yes, integrated in P3 System Controller
P3 Signal Protocol Signal type: Gigabit Ethernet Protocol: Proprietary Martin P3 Hot pluggable: Yes, electrically isolated at all connections Cable type: Ethernet, CAT 5e or better Cable length: Up to 100 m between any 2 devices, extendable with Ethernet switch
Construction Panel frames: Aluminum LED modules per panel: 14 Color: Matt black Protection rating: IP65
Installation Orientation: Any Rigging: Individual panel via standard truss clamps, full column(s) via header hardware Max. suspended in one column: 21 VDO Fenix family panels Panel interlocking: Quick-release mounting system, single-person operation
Connections Power input: Neutrik PowerCON TRUE 1 Data input: IP65-rated Gigabit Ethernet connector Power thru: Neutrik PowerCON TRUE 1 Data thru: IP65-rated Gigabit Ethernet connector
Electrical AC power: 200-240 V nominal, 50/60 Hz Power supply unit: Integrated, auto-sensing multi-voltage Peak power consumption (at full intensity, full white): 250 W Typical power consumption (with typical video content): 85 W Figures for typical video content are indicative only and will vary:
Thermal Cooling: Convection Maximum ambient temperature (at full intensity, full white): 40° C (104° F) Minimum ambient temperature (Ta min.): 0° C (32° F)
Approvals EU safety: EN 60825-1, EN 60950, EN 60529 EU EMC: EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3 US safety (pending): ANSI/UL 60950-1 Canadian safety (pending): CAN/CSA 60950-1 Australia/NZ: C-TICK N4241
Accessories Hardware: VDO Fenix™ family headers VDO Fenix™ family footer hardware VDO Fenix™ family curving kit VDO Fenix™ family flightcases Power cables: Power Input Cable, 16 A, 14 AWG, SJT, 1.5 mm2, H05VV-F, with PowerCON TRUE1 NAC3FX-W, 1.5 m (4.9 ft.): P/N 11541513 Power Relay Cable, 16 A, 14 AWG, SJT, 1.5 mm2, H05VV-F, PowerCON TRUE1 in/out connectors, 0.7 m (2.3 ft.): P/N 11541514 Power Relay Cable, 16 A, 14 AWG, SJT, 1.5 mm2, H05VV-F, PowerCON TRUE1 in/out connectors, 1.5 m (4.9 ft.): P/N 11541512 Power Relay Cable, 16 A, 14 AWG, SJT, 1.5 mm2, H05VV-F, PowerCON TRUE1 in/out connectors, 3.25 m (10.7 ft.): P/N 11541511 Power connectors: Cable Connector, PowerCON TRUE1 female, NAC3FX-W: P/N 05323416 Cable Connector, PowerCON TRUE1 male, NAC3MX-W: P/N 06343418
Related Items Martin P3-100™ System Controller: P/N 90721010 Martin P3-200™ System Controller: P/N 90721020 Martin P3-300™ System Controller: P/N 90721060 Martin P3-PC™ System Controller: P/N 90721030
Ordering Information VDO Fenix 6™ Panel in 6-unit flightcase: P/N 90354630 VDO Fenix™ 6-Panel Flightcase: P/N 91515032 VDO Fenix 6™ LED Video Panel in cardboard: P/N 90354620
