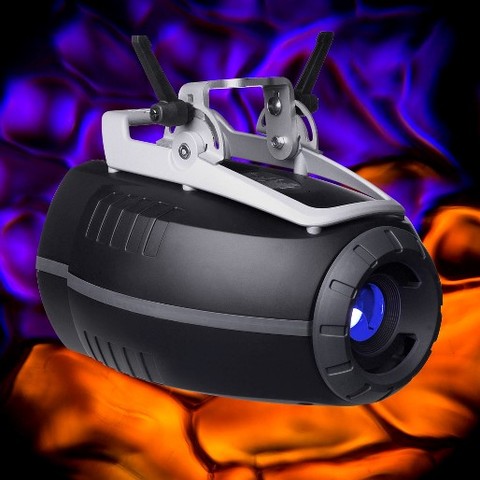

CX 10 Extreme (discontinued)

Larger Images

The CX-10 is a powerful 250 W color changer with 12 interchangeable colors, an effect wheel and animation system.

Features

  • 250 W discharge lamp
  • 3000 hour lamp included
  • 12 interchangeable colors plus open
  • Animation disk adaptor with morphing effects
  • Variable frost effect
  • Separate shutter for strobe effect
  • Motorized focus
  • 22° (optional 14° or 32°)
  • DMX control
  • Continuous operation - no cool down time needed
  • 13 position dual gobo & effect wheel
  • All major safety approvals CE, ETL and CETL
  • Rigorously tested for total reliability

Specifications

Physical Length: 412 mm Width: 340 mm Height: 326 mm Weight: 19 kg
Dynamic Effects Color wheel: 12 colors (incl. UV transmitter) + open, full and split positions, random color, continuous rotation Effect wheel: Double-sided, each side with 12 interchangeable gobos or filters + open Gobo animation: Interchangeable animation wheel (accessory), can replace or be attached to color wheel Shutter: 0 - 100% continuous dimming, variable & random strobe & pulse effects, instant open & blackout Frost: Motorized Focus: Motorized, 2 m to infinity
Control and Programming Control options: DMX DMX channels: 10 Setting and addressing: Control panel with LED display Protocol: USITT DMX512/1990 Receiver: Opto-isolated RS-485 Firmware update: Serial upload via DMX link
Lamp Type: 250 W discharge Fitted as standard: Philips MSD 250/2 Color temperature: 8500 K Average lifetime: 3000 hours Socket: GY 9.5 Approved alternative lamp(s): Osram HSD 250, Philips MSD 200
Photometric Data Beam angle: 22° (14° narrow or 32° wide options available)
Construction Housing: Polyester-reinforced composite Color(s): Black Protection rating: IP20
Gobos Outside diameter: 22.5 mm + 0/- 0.3 mm Maximum image diameter: 17 mm Maximum thickness: 1.8 mm Glass type: High-temperature Borofloat or better Glass coating: Dichroic or enhanced aluminum Metal: Aluminum (steel for temporary use only)
Installation Orientation: Any Mounting points: Floor or adjustable mounting bracket
Connections Data connection: 3-pin locking XLR Power cable entry: 3-pin IEC
Electrical AC power: Switch-selectable 100-120/208-240 V nominal, 50/60 Hz Main fuse: 6.3 AT (slow blow)
Typical Power and Current 100 V, 60 Hz: 340 W, 4.1 A 120 V, 60 Hz: 340 W, 2.9 A 208 V, 60 Hz: 340 W, 1.8 A 230 V, 50 Hz: 360 W, 1.8 A 240 V, 50 Hz: 350 W, 1.6 A Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:
Thermal Maximum ambient temperature (Ta max.): 40° C Maximum surface temperature, steady state, Ta=40° C: 50° C Typical heat dissipation (calculated): 1230 BTU/hr.
Approvals US safety: ANSI/UL 1573 Canadian safety: CSA C22.2 No. 166 EU safety: EN 60598-1, EN 60598-2-17 EU EMC: EN 50 081-1, EN 50 082-1
CE ETL C US Intertek
Included Items Philips MSD 250/2 lamp (installed): 97010100 3 m power cable, 3-pin IEC: 11501013 User manual: 35000129
Accessories G-clamp: 91602003 Half-coupler clamp: 91602005 Narrow-angle lens kit (14° beam angle): 91610030 Wide angle lens kit (32° beam angle): 91610029 Animation wheel adaptor kit: 91611093 Linear breakup gobo animation wheel: 62400223 Triangle break gobo animation wheel: 62400225 Elliptical breakup gobo animation wheel: 62400221 Flicker wheel gobo animation wheel: 62400222 Coarse radial breakup gobo animation wheel: 62400224 Coarse tangential breakup gobo animation wheel: 62400226 Radial breakup gobo animation wheel: 62400211 Cloud breakup gobo animation wheel: 62400213 Dot breakup animation wheel: 62400214 Tangential breakup animation wheel: 62400215 Spiral breakup gobo animation wheel: 62400216 Leaf breakup gobo: 43086046 GrossSilvit texture glass: 62328015
Spare Parts Philips MSD 250/2 lamp: 97010100 Main fuse (6.3 AT): 05020020 Fuse F1 (6.3 AT): 05020020 Fuse F2 (2 AT): 05020009
Ordering Information CX-10 Extreme: 90330000
