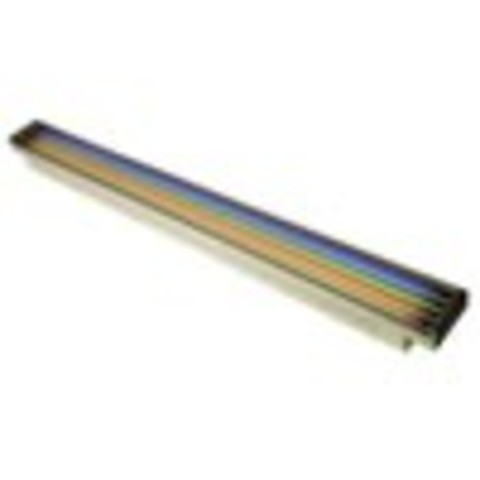

Cyclo 02 is a fluorescent color temperature changer that can recreate natural fluctuations in daylight. The smallest in the series, the luminaire consists of two dimmable T5 tubes, a warm white at 2700K and a daylight white at 6000K.
Larger Images
Features
- 2700K and 6000K T5 tubes
- color temperature control
- DMX control via 516 converter
- Slim designed fixture
Specifications
Physical
Length: 1190 mm
Width: 63 mm
Height: 88 mm
Weight: 3.8 kg
Dynamic Effects
Color temperature control: 2700 - 6500 K continuous mixing
Control and Programming
Control options: Analog 1-10 V
Control via 516 Converter: 16 channels
Dimmer channels required per independently controlled Cyclo group: 2
Number of Cyclos per group (fixtures wired in series): 1-10
Construction
Housing: Mild steel
Color(s): White (NCS 0402-G06-Y)
Reflector(s): High specular 99.9% aluminum
Protection rating: IP20
Connections
AC power input: Quick connectors
0-10 V analog: Quick connectors
Typical Power and Current
230 V, 50 Hz: 64 W, 0.28 A
Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:
Included Items
Osram T5 FH 28 W/827 HE 2700 K warm white tube: 97020000
Osram T5 FH 28 W/865 HE 6500 K daylight white tube: 97020002
Accessories
Martin 516 II DMX to 0-10 V Converter: 90758225
Spare Parts
Osram T5 FH 28 W/827 HE 2700 K warm white tube: 97020000
Osram T5 FH 28 W/865 HE 6500 K daylight white tube: 97020002
Ordering Information
Cyclo 02: 90550020
Downloads
| Size | ||||
Hints And Tips | ||||
Optimizing Cyclo Tube Lifetimes
version A,
updated: May 2018
|
||||
|
Running Cyclos at Very Low Ambient Temperatures
version A,
updated: May 2018
|
||||
