Cyclo Series
Discontinued

Cyclo Series
Larger Images

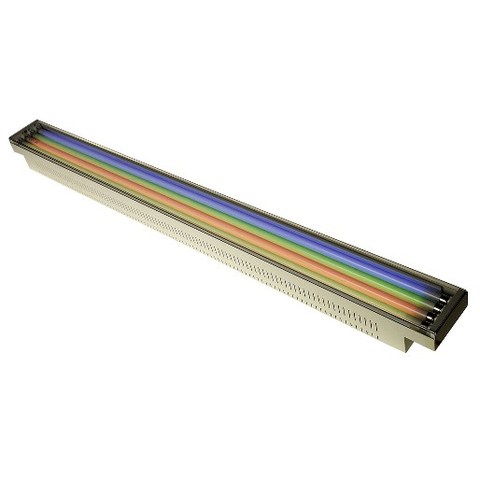

The Cyclo Series provides a simple dynamic lighting solution for stores and other commercial applications, with a fluorescent linear luminaire that uniformly washes surfaces in color and variable color temperature white light.

Features

  • 28 W T5 fluorescent tubes, 54 W (110 V version only)
  • Choice of 2, 3 or 4 tube versions
  • Long lamp life (20 000 hrs)
  • Choice of opal or clear front covers
  • 0-100% intensity control
  • Control Options: DMX or analog control versions
  • Surface mounting
  • End-user programming: no extra controller required

Specifications

Lamp Type: T5 fluorescent tubes Approved lamps: Osram T5 HE 28 W and T5 HO 54 W Average lifetime: 20 000 hours Socket: G5
Installation Orientation: Any Minimum free space: 25 mm
Electrical AC power: 198-240 V, 50/60 Hz
Thermal Maximum ambient temperature (Ta max.): 40° C Minimum ambient temperature (Ta min.): -20° C Cooling: Convection
Approvals EU safety: EN 60598-1, EN 60598-2-1 EU EMC: EN 55015, EN 60555-3
CE

Downloads

Specifications
  Version Language Size Uploaded
file type icon Cyclo 04 performance data
en version A, updated: Oct 2020
A  en  40 KB Oct 2020
file type icon Cyclo 03 performance data
en version A, updated: Oct 2020
A  en  12.3 KB Oct 2020
file type icon Cyclo 02 performance data
en version A, updated: Oct 2020
A  en  14.1 KB Oct 2020
Photometric Data
en version A, updated: May 2018
A   en    May 2018
file type icon Caractéristiques, Cyclo 03/04 DMX
fr version A, updated: Oct 2020
A  fr  34.6 KB Oct 2020
file type icon Specifiche, Cyclo 03/04 DMX
it version C, updated: Oct 2020
C  it  9.8 KB Oct 2020
file type icon Especificacione, Cyclo 03/04 DMX
es version C, updated: Oct 2020
C  es  9.17 KB Oct 2020
file type icon Specifications, Cyclo 03/04 DMX
en version C, updated: Oct 2020
C  en  9.62 KB Oct 2020
file type icon Technische Daten, Cyclo 03/04 DMX
de version C, updated: Oct 2020
C  de  15.1 KB Oct 2020
file type icon Specifications, Cyclo 03/04
en version C, updated: Oct 2020
C  en  14.2 KB Oct 2020
file type icon Technische Daten, Cyclo 03/04
de version C, updated: Oct 2020
C  de  405 KB Oct 2020
file type icon Specifications, Cyclo 02
en version C, updated: Oct 2020
C  en  7.5 KB Oct 2020
file type icon Technische Daten, Cyclo 02
de version C, updated: Oct 2020
C  de  403 KB Oct 2020
Manuals
  Version Language Size Uploaded
file type icon Bedienungsanleitungl, Cyclo 02/03/04
de version C, updated: Oct 2020
C  de  706 KB Oct 2020
file type icon User manual, Cyclo 02/03/04
en version C, updated: Oct 2020
C  en  207 KB Oct 2020
file type icon Manuale d´uso, Cyclo 02/03/04
it version C, updated: Oct 2020
C  it  187 KB Oct 2020
file type icon Manuel d´utilisationl, Cyclo 03/04 DMX
fr version A, updated: Oct 2020
A  fr  309 KB Oct 2020
file type icon User manual, Cyclo 03/04 DMX HO EU
en version A, updated: Dec 2020
A  en  492 KB Dec 2020
file type icon Manuale d´uso, Cyclo 03/04 DMX
it version C, updated: Oct 2020
C  it  453 KB Oct 2020
file type icon Manual de instruccionesl, Cyclo 03/04 DMX
es version C, updated: Oct 2020
C  es  381 KB Oct 2020
file type icon User manual, Cyclo 03/04 DMX
en version C, updated: Oct 2020
C  en  372 KB Oct 2020
file type icon Bedienungsanleitungl, Cyclo 03/04 DMX
de version C, updated: Oct 2020
C  de  274 KB Oct 2020
Illustrations
  Version Language Size Uploaded
file type icon Cyclo 04, Dimensions
en version A, updated: Oct 2020
A  en  68.7 KB Oct 2020
file type icon Cyclo 03, Dimensions
en version A, updated: Oct 2020
A  en  67.4 KB Oct 2020
file type icon Cyclo 02, Dimensions
en version A, updated: Oct 2020
A  en  70.7 KB Oct 2020
file type icon DIMS_Cyclo_03_04_A_dxf
updated: Oct 2020
    142 KB Oct 2020
file type icon DIMS_Cyclo_03_04_A_
updated: Oct 2020
    48 KB Oct 2020
file type icon Cyclo DMX 03-04 HO Dimensions (DXF)
en version A, updated: Oct 2020
A  en  139 KB Oct 2020
file type icon Cyclo DMX 03-04 HO Dimensions (PDF)
en version A, updated: Oct 2020
A  en  47.3 KB Oct 2020
Compliances
  Version Language Size Uploaded
file type icon Cyclo Series- EU Declaration of Conformity
es version A, updated: Oct 2020
A  es  48.4 KB Oct 2020
Service Notes
  Version Language Size Uploaded
file type icon Cyclo diffuser kit installation
en version A, updated: Oct 2020
A  en  403 KB Oct 2020
Hints And Tips
  Version Language Size Uploaded
Running Cyclos at Very Low Ambient Temperatures
en version A, updated: May 2018
A   en    May 2018
RJ-45 Connectors
en version A, updated: May 2018
A   en    May 2018
Optimizing Cyclo Tube Lifetimes
en version A, updated: May 2018
A   en    May 2018
Installing 54 Watt Tubes Will Damage a 28 Watt Cyclo
en version A, updated: May 2018
A   en    May 2018
