• Physical

  Width: 482.6 mm (19.0 in.)
  Height: 88.90 mm (3.50 in.) (rackmount 2U)
  Depth: 407.0 mm (16.0 in.)
  Weight: 7.0 kg (15.4 lbs.)

  Control/User Interface

  User Interface: Full HD (1920x1080) or better monitor (VGA, DVI, HDMI or DP), USB keyboard & USB mouse
  Device Status: Status indication LEDs

  HDMI Video Input

  Standard: HDMI 2.0
  Resolution: Supporting all standard resolutions up to 4096x2160 (DCI 4K)
  Framerate: Supporting frame rates up to 75fps
  Scan: Progressive & Interlaced
  EDID: Customizable via user interface
  Colour Depth: 8/10/12-bit
  Colour Sampling: RGB 4:4:4, YCbCr 4:4:4 & YCbCr 4:2:2
  Colour Formats: RGB, YCbCr 601, YCbCr 709 & YCbCr 2020

  NDI Video Input

  Standard: NDI
  Resolution: Supporting all standard resolutions up to 4096x2160 (DCI 4K)
  Framerate: Supporting frame rates up to 75fps

  Video Processing

  Controller pixel processing capacity: 1,040,000 pixels (expandable by adding P3-275s)*
  Controller fixture capacity: 6,000 fixtures (expandable by adding P3-275s)*
  Maximum workspace area: 8,847,360 pixels
  Maximum active capture area: 8,847,360 pixels
  System processing depth: 16 bits per color (48 bits per pixel)
  System latency: 2 frames
  Latency between first and last fixture: None
  Scaling: Yes, global and mixed pixel pitch
  Gamma Curve Control: Yes, adjustable
  Image Control Parameters: Hue, Saturation, Brightness, Contrast, Lowlight & Gain
  Mapping: Real-time
  Colour Temperature Control: Real-time
  Colour Space Control: Real-time
  Preview: Real-time (incoming video & mapping onto fixtures)
  *See also P3 System Controller Capacity Info Note on Downloads page

  DMX Controls

  Up to 1,024 universes of Art-Net or sACN input*
  Control of intensity and colours
  Control of colour temperature
  Merge video input with DMX controls towards fixtures
  Cross-fade or toggle between video and DMX controls
  Freeze, blackout or activate testpatterns on video engine
  Recall video presets (video settings, fixture positions and more)
  *See also P3 System Controller Capacity Info Note on Downloads page

  Motion Controls

  One universe of Art-Net, sACN or Kinesys K2 input*
  Compatible with Kinesys K2/Vector, Tait Navigator and others
  Control fixture or group position on video canvas
  Control fixture or group rotation on video canvas
  *See also P3 System Controller Capacity Info Note on Downloads page

  Visualizer Output

  Outputs the P3 Visualizer Protocol to compatible third-party (3D) visualizers via a standard network interface
  Real-time transfer of pixel data, synchronization, calibration data, fixture patch and more
  Compatible third-party visualizers: Capture 2025

  P3 Signal Protocol

  Signal type: Gigabit Ethernet
  Protocol : Proprietary Martin P3
  Hot pluggable: Yes, electrically isolated at all connections
  Cable type: Ethernet, shielded, Cat 5e or better
  Cable length: Up to 100 m between any 2 devices, extendable with Ethernet switch
  Maximum number of fixtures per daisy-chain: 50, extendable with Ethernet switch

• Construction Housing: Steel and aluminium Color: Matte black Protection rating: IP20
  Installation Mounting: 19" rackmount (2U) or free-standing Location: Indoor or outdoor protected from elements Orientation: Horizontal only
  Connections

  Power input: IEC socket with integrated power switch
  P3 data in/out: 2x etherCON socket (100/1000Mbit)
  EtherDMX Network (Art-Net, sACN and Kinesys K2/Vector): 1x etherCON socket (100/1000Mbit)
  Management Network (3rd party visualizer, remote management, syslog and webserver): 1x etherCON socket (100/1000Mbit)
  NDI Video In: 1x etherCON socket (100/1000Mbit)
  HDMI Video In: HDMI 2.0
  Peripherals and USB memory devices: 2 x USB 2.0 ports and 2x USB 3.0 ports
  User interface monitor: DisplayPort++ (compatible with adapters to DVI, HDMI and VGA, not supplied)

  Electrical

  AC power: 100-240 V AC nominal, 50/60 Hz
  Power supply unit: Auto-ranging electronic switch mode
  Typical half-cycle RMS inrush current at 230 V, 50 Hz: 28 A
  Typical earth-leakage current: 0.50 mA
  Power Factor: 0.98 @ 100 V / 120 V , 0.93 @ 208 V / 230 V / 240 V
  Max current draw: 1.90 A @ 100 V / 120 V , 0.95 A @ 208 V / 230 V / 240 V
  Typical current draw: 0.46 A @ 100 V / 120 V , 0.23 A @ 208 V / 230 V / 240 V *
  Power Consumption
  Maximum: 190 W
  Typical: 46 W *
  Idle: 30 W *
  * Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
  Typical: machine running at full P3, Art-Net/sACN and Video Input capacity.
  Idle: no showfile loaded.

  Thermal Cooling: Filtered forced air (temperature-controlled fans) Maximum ambient temperature (Ta max.): 50° C (122° F) Minimum ambient temperature (Ta min.): 5° C (41° F) Typical heat dissipation (calculated, +/- 10%): 157 BTU/hr.
  Environmental RoHS: Compliant REACH: Compliant WEEE: Compliant Proposition 65: Compliant
  Approvals EU safety: EN 62368-1 EU EMC: EN 55032, EN 55035, EN 61000-3-2, EN 61000-3-3 US safety: UL 62368-1 Canadian safety: CSA C22.2 No. 62368-1 Australia/NZ: RCM United Kingdom: UKCA India: BIS (pending)
  Included Items

  Safety Guide
  Quick Start Guide
  EU-type power cable with Schuko connector
  US-type power cable
  UK-type power cable

  Related Items

  Martin P3-175 System Controller: P/N MAR-90721100
  Martin P3-PC System Controller: Free download from www.martin.com

  Ordering Information

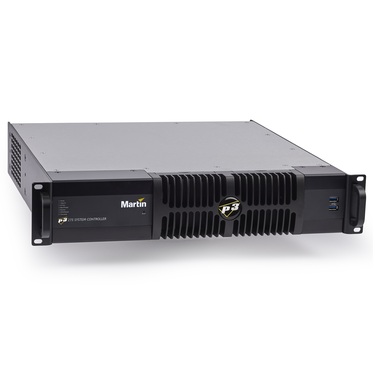

  Martin P3-275 System Controller: P/N MAR-90721101

•
  24. oktober 2023

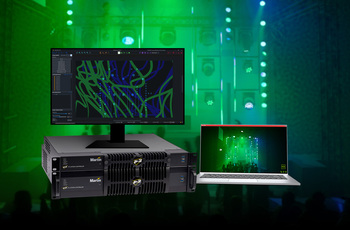

  Martin Introduces New P3 System Control Hardware and Significantly Enhanced Software Update
