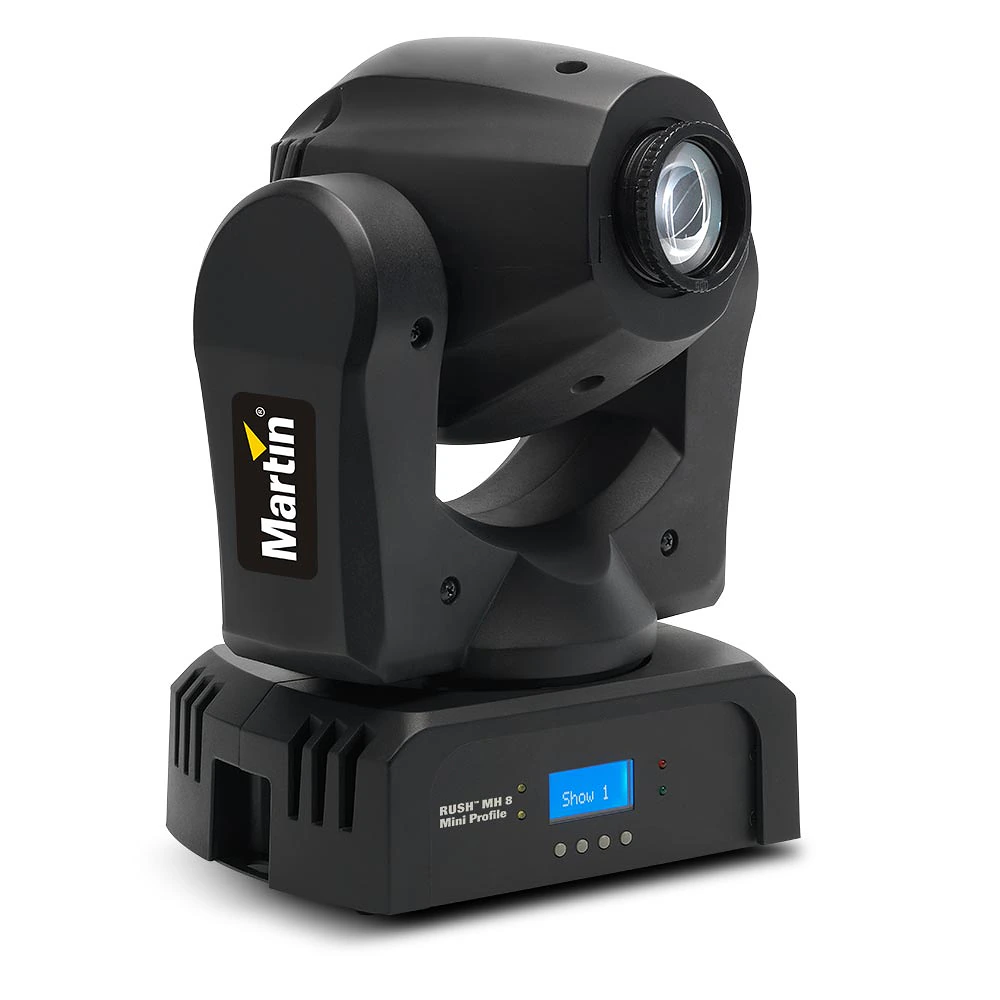

RUSH MH 8 Mini Profile
Udgået

Større billeder

RUSH MH 8 Mini Profile er Martin Professional's mindste moving head til dato med super skarpe optikker og et imponerende output, der overgår sin klasse. Høj hastighed pan og tilt med separate farve- og gobo-hjul giver designere maksimal fleksibilitet fra loungebaren til det højenergetiske dansegulv, og alt inden for en overkommelig prisklasse.

MH 8 Mini Profile bruger den seneste 18 W hvid LED-teknologi, der leverer super skarpe optikker med over 800 lumen via en 14° strålevinkel. Otte varierede gobos og otte levende farver er tilgængelige, med elektronisk strobe/dimning, manuel fokus og høj hastighed pan og tilt. De øjenfaldende effekter kan styres via DMX eller synkroniseres til et musikbeat via lydtrigger. Det kompakte armatuur vejer kun 4,5 kg.

Super skarpe optikker
Høj output 18 W hvid LED
Separate farve- og gobo-hjul

Videoer

Funktioner

Super sharp optics
Crisp, flat gobo projection (class-leading in product category)
Compact size and low weight
Latest generation 18 W LED with over 800 lumens (class-leading in product category)
Separate color and gobo wheels
Gives maximum flexibility to designers

Flere detaljer

PhysicalLength: 157 mm (6.1 in.)Width: 237 mm (9.3 in.)Height: 327 mm (12.9 in.)Weight: 4.5 kg (9.9 lbs.)

Dynamic EffectsColor wheel: 8 colors plus open, variable and random rotationGobo wheel: 8 static gobos plus open, variable and random rotationStrobe: Variable from 3 - 20 Hz, pulse effects and random strobeElectronic dimming: 0 - 100%, four dimming curve optionsPan: 540°Tilt: 230°

Control and ProgrammingControl options: DMX, 4 stand-alone shows, master/client DMX channels: 10Stand-alone trigger: Auto, musicDMX compliance: USITT DMX512/1990Interface: Control panel with backlit LCD display

OpticsLight source: 18 W OSRAM LE UW Q8WP LEDMinimum LED lifetime: 50 000 hours (to >70% luminous output)*Beam angle: 14°Focus: Manual*Figure obtained under manufacturer's test conditions

ConstructionColor: BlackHousing: High-impact flame-retardant thermoplasticIP rating: IP 20

InstallationMounting points: Bracket for rigging clampLocation: Dry location only, must be fastened to surface or structureOrientation: Vertical (head down if suspended)Minimum distance to illuminated surfaces: 200 mm (8 in.)Minimum distance to combustible materials: 100 mm (4 in.)Minimum clearance around fans and vents: 100 mm (4 in.)

ConnectionsAC power input: IECDMX data in/out: 3-pin and 5-pin locking XLR

ElectricalAC power: 100-240 V nominal, 50/60 HzPower supply unit: Auto-ranging electronic switch modeFuse: T 2.0 A

Typical Power and Current120 V, 60 Hz: 52 W, 0.8 A230 V, 50 Hz: 50 W, 0.5 ATypical half-cycle RMS inrush current: 6.4 AMeasurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.

ThermalCooling: Forced air (temperature-regulated, low noise)Maximum ambient temperature (Ta max.): 40° C (104° F)Minimum ambient temperature (Ta min.): 0° C (32° F)Total heat dissipation (calculated, +/- 10%, at full intensity, full white): 180 BTU/hr.

ApprovalsEU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493EU EMC: EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-4-2, EN 61547US safety: UL 1573US EMC: CFR Title 47 Part 15 Class ACanadian safety: CSA C22.2 No. 166Canadian EMC: ICES-003 Class AAustralia/NZ (pending): RCM

Included ItemsPower cable, 1.9 m (6.3 ft.) without mains plugPower cable, 1.9 m (6.3 ft.) with US plugBracket for rigging clamp attachment

AccessoriesInstallation hardwareG-clamp: P/N 91602003Half-coupler clamp: P/N 91602005Quick-trigger clamp: P/N 91602007Safety cable, safe working load, 50 kg (110 lbs.): P/N 91604003

Related ItemsRUSH™ Software Uploader 1: P/N 91611399

Ordering InformationRUSH™ MH 8 Mini Profile in cardboard box: P/N 90280110

Downloads

Specifications

	Sprog	Størrelse	Uploadet
RUSH MH 8 Mini Profile Spec Sheet-English opdateret: jul 2018		339 kB	jul 2018

Manuals

	Version	Sprog	Størrelse	Uploadet
RUSH MH 8 Mini Profile - Manuel d'utilisation version A, opdateret: okt 2020	A		1,02 MB	okt 2020
RUSH MH 8 Mini Profile - User Manual version A, opdateret: okt 2020	A		1,03 MB	okt 2020
RUSH MH 8 Mini Profile - Bedienungsanleitung version A, opdateret: okt 2020	A		944 kB	okt 2020

Illustrations

	Version	Sprog	Størrelse	Uploadet
RUSH MH 8 - Dimensions 2D (PDF) version A, opdateret: okt 2020	A		226 kB	okt 2020
RUSH MH 8 - Dimensions 2D (DXF) version A, opdateret: okt 2020	A		6,87 MB	okt 2020

Symbols

	Version	Sprog	Størrelse	Uploadet
Vectorworks Symbols version 4.6, opdateret: jan 2026	4.6		249 MB	jan 2026

CAD Drawings

	Version	Sprog	Størrelse	Uploadet
RUSH MH 8 - Dimensions (3DS) version A, opdateret: okt 2020	A		4,78 MB	okt 2020
RUSH MH 8 - Dimensions 2D version A, opdateret: okt 2020	A		2,02 MB	okt 2020

Compliances

	Version	Sprog	Størrelse	Uploadet
RUSH MH 8 Mini Profile - ETL Listing Verification version A, opdateret: okt 2020	A		379 kB	okt 2020
RUSH MH 8 Mini Profile - EU Declaration of Conformity version A, opdateret: okt 2020	A		149 kB	okt 2020

Software

	Version	Størrelse	Uploadet
RUSH MH 8 Mini Profile Software version 1.1, udgivet: jan 2018	1.1	95 kB	jan 2018

Service Notes

	Version	Sprog	Størrelse	Uploadet
3D Partsfinder - Opening using Solid Works Composer Player version 4, opdateret: okt 2020	4		743 kB	okt 2020

Tech Notes

	Størrelse	Uploadet
Avoiding damage from sunlight and other light sources opdateret: sep 2017		sep 2017

Hints and Tips

	Version	Sprog	Størrelse	Uploadet
Avoiding damage from sunlight and other light sources version B, opdateret: maj 2018	B			maj 2018

Firmware

	Version	Størrelse	Uploadet
RUSH MH 8 Mini Profile - Firmware version 1.1, opdateret: jul 2026	1.1		jul 2026
