Martin RUSH PAR 1 RGBW

Larger Images

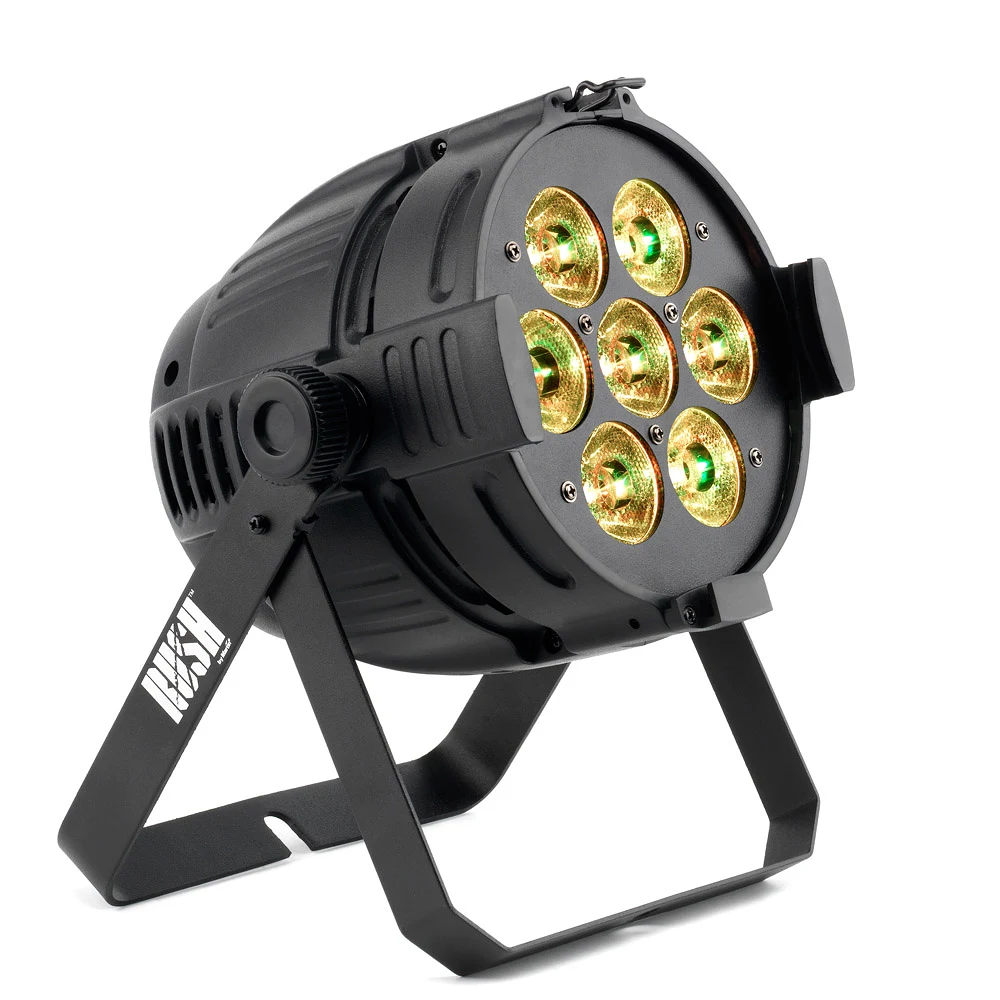

The RUSH PAR 1 RGBW is a bright LED PAR Can with premixed RGBW color mixing. It offers electronic dimming and strobe and comes with a flexible bracket for floor or truss mounting.

Features

Bright LED PAR Can
Premixed RGBW color mixing
17° one-tenth peak angle
Electronic dimming and strobe
Flexible bracket – floor or truss-mounted
5-pin XLR

Specifications

Physical Length: 260 mm (10.3 in.) Width: 195 mm (7.7 in.) Height: 293 mm (11.6 in.) Weight: 3.6 kg (8.0 lbs.)

Dynamic Effects Color mixing: RGBW Color selection: 32 color presets Electronic dimming: 0 - 100% Strobe and pulse effects: Variable speed and action, random strobe Electronic shutter effect: Instant open and blackout

Control and Programming DMX channels: 5/7 Control options: DMX, stand-alone DMX address setting: Control panel with LED display White balance control: RGB adjustment Standalone programming: Control panel with LED display Standalone trigger options: Music trig, auto trig Protocol: USITT DMX512/1990

Optics Light source: 7 x 10 W RGBW Cree MC-E LEDs Minimum LED lifetime: 50,000 hours (to >70% luminous output)* *Figure obtained under manufacturer's test conditions.

Construction Housing: High-impact flame-retardant thermoplastic Color: Black Protection rating: IP20

Installation Mounting: Adjustable bracket, surface or truss mount Location: Indoor use only Orientation: Any

Connections AC power in, thru: Neutrik PowerCon DMX data in, thru: 5-pin XLR
Electrical AC power: 100-240 V nominal, 50/60 Hz Typical total power consumption: 78 W Power consumption figures are typical, not maximum. Allow for +/-10% variation.

Typical Power and Current 110 V, 60 Hz: 1.1 A, 78 W 230 V, 50 Hz: 0.7 A, 78 W Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.

Thermal Cooling: Forced air (temperature-regulated, low noise) Total heat dissipation (calculated, +/- 10%): 270 BTU/hr. (at full intensity, full white) Maximum ambient temperature (Ta max.): 40° C (104° F) Minimum ambient temperature (Ta min.): 0° C (32° F)

Approvals EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493 EU EMC: EN 55015, EN 55103-1, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547 US safety: UL 1573 US EMC: 47 CFR Part 15 Class A Canadian safety: CSA C22.2 No. 166 Canadian EMC: ICES-003 Class A Australia/NZ: C-TICK N4241

Included Items
Power cable 1.5 m
Mounting bracket

Related Items Martin™ RDM 5.5 Splitter: P/N 90758150 Martin Companion Cable: P/N 91616091 Martin Companion Software Suite (including firmware uploader): Free download from www.martin.com

Accessories Power connectors:
Power Connector PowerCON Male: P/N 91611795
Power Connector PowerCON Female : P/N 91611794
Cables, 16 A, for connection to power in chains:
Power relay cable 3 x 2.5 mm2, H07RN-F POWCON-POWCON 1.2 m (3.9 ft.): P/N 91611798
Power relay cable 3 x 14 AWG, SJOOW POWCON-POWCON 1.2m (3.9 ft.): P/N 91610175
Power relay cable 3 x 2.5 mm2, H07RN-F POWCON-POWCON 2.5m (8.2 ft.): P/N 91611799
Power relay cable 3 x 14 AWG, SJOOW POWCON-POWCON 2.5m (8.2 ft.): P/N 91610176
Cables, 16 A, for power input:
Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 1.5 m (4.9 ft.): P/N 91611800
Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 1.5 m (4.9 ft.): P/N 91610177
Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 5.0 m (16.4 ft.): P/N 91611801
Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 5.0 m (16.4 ft.): P/N 91610178
(H07RN-F are European approved cables, SJOOW are US approved cables)
Installation hardware:
G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
Quick trigger clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
Half-coupler clamp: P/N 91602005
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007

Ordering Information RUSH PAR 1 RGBW™ in cardboard box: P/N 90480000

Downloads

	Version	Language	Size	Uploaded
Specifications
RUSH PAR 1 RGBW Spec Sheet-English updated: Jul 2018			489 KB	Jul 2018
Manuals
RUSH PAR 1 RGBW - Manuel d’utilisation version C, updated: May 2018	C		694 KB	May 2018
RUSH PAR 1 RGBW - User Manual version E, updated: May 2018	E		727 KB	May 2018
RUSH PAR 1 RGBW - Bedienungsanleitung version C, updated: May 2018	C		1.25 MB	May 2018
Illustrations
RUSH PAR 1 RGBW - Dimensions (PDF) version A, updated: May 2018	A		652 KB	May 2018
RUSH PAR 1 RGBW - Dimensions (2D Dwg) version A, updated: May 2018	A		1.36 MB	May 2018
Symbols
Vectorworks Symbols version 3.6, updated: Aug 2023	3.6		339 MB	Aug 2023
CAD Drawings
RUSH PAR 1 RGBW - (3D DWG) version A, updated: May 2018	A		2.83 MB	May 2018
RUSH PAR 1 RGBW - (3DS) version A, updated: May 2018	A		1.82 MB	May 2018
Compliances
RUSH PAR 1 RGBW - EU Declaration of Conformity version B, updated: Mar 2019	B		650 KB	Mar 2019
RUSH PAR 1 RGBW - ETL Listing Certificate version A, updated: May 2018	A		170 KB	May 2018
Service Notes
3D Partsfinder - Opening using Solid Works Composer Player version 4, updated: Oct 2020	4		743 KB	Oct 2020
Tech Notes
Avoiding damage from sunlight and other light sources updated: Sep 2017				Sep 2017
Hints And Tips
Avoiding damage from sunlight and other light sources version B, updated: May 2018	B			May 2018
Firmware
RUSH PAR 1 RGBW - Firmware updated: Jul 2020	1.3			Jul 2020
RUSH PAR 1 RGBW - Firmware version 1.3, updated: Nov 2023	1.3			Nov 2023
