Cyclo 04 Wallwasher (discontinued)

Cyclo 04 Wallwasher
Larger Images

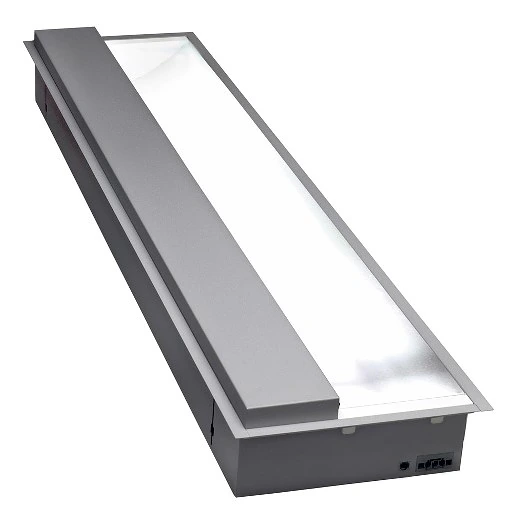

The Cyclo 04 Wallwasher is a recessed fluorescent wallwasher with RGB color mixing that generates both white and colored light. Suited to a wide range of commercial applications, it also provides an interesting solution for the work environment by applying dynamic light in recreation areas and conference rooms.

Features

  • 28 W T5 fluorescent tubes
  • Long lamp life (20 000 hrs)
  • RGB + W color mixing
  • Even color distribution with no dark zones
  • 0-100% intensity control
  • 0-10 V analog control (DMX with 512-II Converter)
  • Versatile as floor, ceiling, or wallwasher

Specifications

Physical Length: 1210 mm Width: 290 mm Height: 94 mm Weight: 9 kg
Dynamic Effects Color mixing: RGBW Red: 0 - 100% Green: 0 - 100% Blue: 0 - 100% Cool white (4000 K): 0 - 100%
Control and Programming Control options: Analog 1-10 V Control via 516 Converter: 16 channels Dimmer channels required per independently controlled Cyclo group: 4 Number of Cyclos per group (fixtures wired in series): 1-10
Lamp Type: T5 fluorescent tubes Approved lamps: Osram T5 HE 28 W Average lifetime: 20 000 hours Socket: G5
Installation Indoor orientation: Any (ceiling panel or wall recommended) Minimum free space: 25 mm
Connections AC power input: Quick connectors 0-10 V analog: Quick connectors
Electrical AC power: 198-240 V, 50/60 Hz
Typical Power and Current 230 V, 50 Hz: 128 W, 0.6 A Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:
Thermal Maximum ambient temperature (Ta max.): 40° C Minimum ambient temperature (Ta min.): -20° C Cooling: Convection Total heat dissipation (calculated, +/- 10%): 440 BTU/hr.
Approvals EU safety: EN 60598-1, EN 60598-2-2 EU EMC: EN 55015, EN 60555-3
CE
Included Items Osram T5 FH 28 W/60 HE red tube: 97020003 Osram T5 FH 28 W/66 HE green tube: 97020004 Osram T5 FH 28 W/67 HE blue tube: 97020005 Osram T5 FH 28 W/840 HE 4000 K cool white tube: 97020001 User manual:
Accessories Martin 516 II DMX to 0-10 V Converter: 90758225 Osram T5 FH 28 W/827 HE 2700 K warm white tube: 97020000 Osram T5 FH 28 W/865 HE 6500 K daylight white tube: 97020002
Spare Parts Osram T5 FH 28 W/840 HE 4000 K cool white tube: 97020001 Osram T5 FH 28 W/60 HE red tube: 97020003 Osram T5 FH 28 W/66 HE green tube: 97020004 Osram T5 FH 28 W/67 HE blue tube: 97020005
Ordering Information Cyclo 04 Wallwasher: 90550030
