Detonator (discontinued)

Detonator
Larger Images

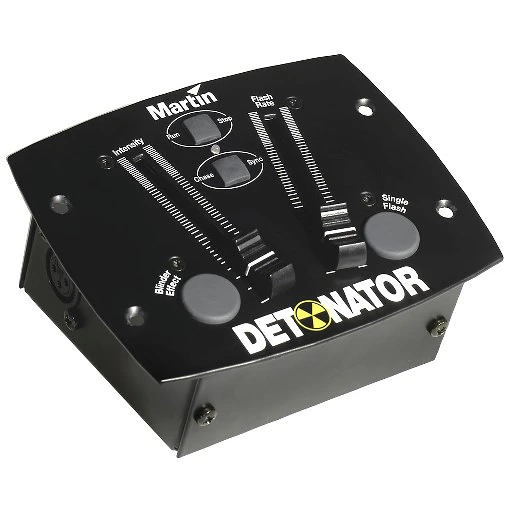

The Detonator is an optional, dedicated remote control tool for easy command of the Atomic 3000 DMX strobe's flash rate and intensity. It includes “blinder effect” and “single flash” detonator buttons as well as a chase/synchronization toggle switch. Easy to set up and operate, the Atomic Detonator requires no external power source.

Features

  • Dedicated remote control for Atomic 3000 DMX strobe
  • Fader-controlled flash rate and intensity
  • Single button for Detonator blinder effect
  • Separate button for single flash and flash sync
  • Chase effect operation with multiple units
  • No external power necessary
  • Easy set-up and operation

Specifications

Physical Length: 142 mm (5.6 in.) Width: 113 mm (4.5 in.) Height: 75 mm (3.0 in.) Weight: 0.7 kg (1.6 lbs.)
Playback Run/stop toggle Strobe rate: 0 - 25 Hz (50 Hz mains), 0 - 30 Hz (60 Hz mains) Intensity: 0 - 100% Chase/sync toggle for use with multiple fixtures Single flash Flash synchronization Blinder effect: Triggering with variable intensity
System integration Compatible with original Atomic 3000 DMX (not Atomic 3000 LED)
Construction Housing: Steel Color(s): Black
Connections DC power input: 3 volt drawn from master fixture via control cable Control signal output: 3-pin locking XLR
Approvals EU safety: EN 60950 EU EMC: EN 55103-1, EN 55103-2
CE
Included Items 5 m data cable, 3-pin XLR: P/N 11820008
Ordering Information Detonator, Atomic Remote Control: P/N 90760020

Downloads

  Version Language Size Uploaded
Manuals
file type icon Bedienungsanleitung
de version B, updated: Oct 2020
de  1.04 MB Oct 2020
file type icon Detonator - User manual
en version B, updated: Aug 2020
en  1.03 MB Aug 2020
Compliances
file type icon EU Declaration of Conformity
es version A, updated: Oct 2020
es  711 KB Oct 2020
Hints And Tips
Electrical safety test equipment
en version B, updated: May 2018
B   en    May 2018

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.
