Exterior Wash 300

Outdoor rated RGBW color mixing wash light

Exterior Wash 300
Larger Images

Limited quantity available - please contact your dealer for information

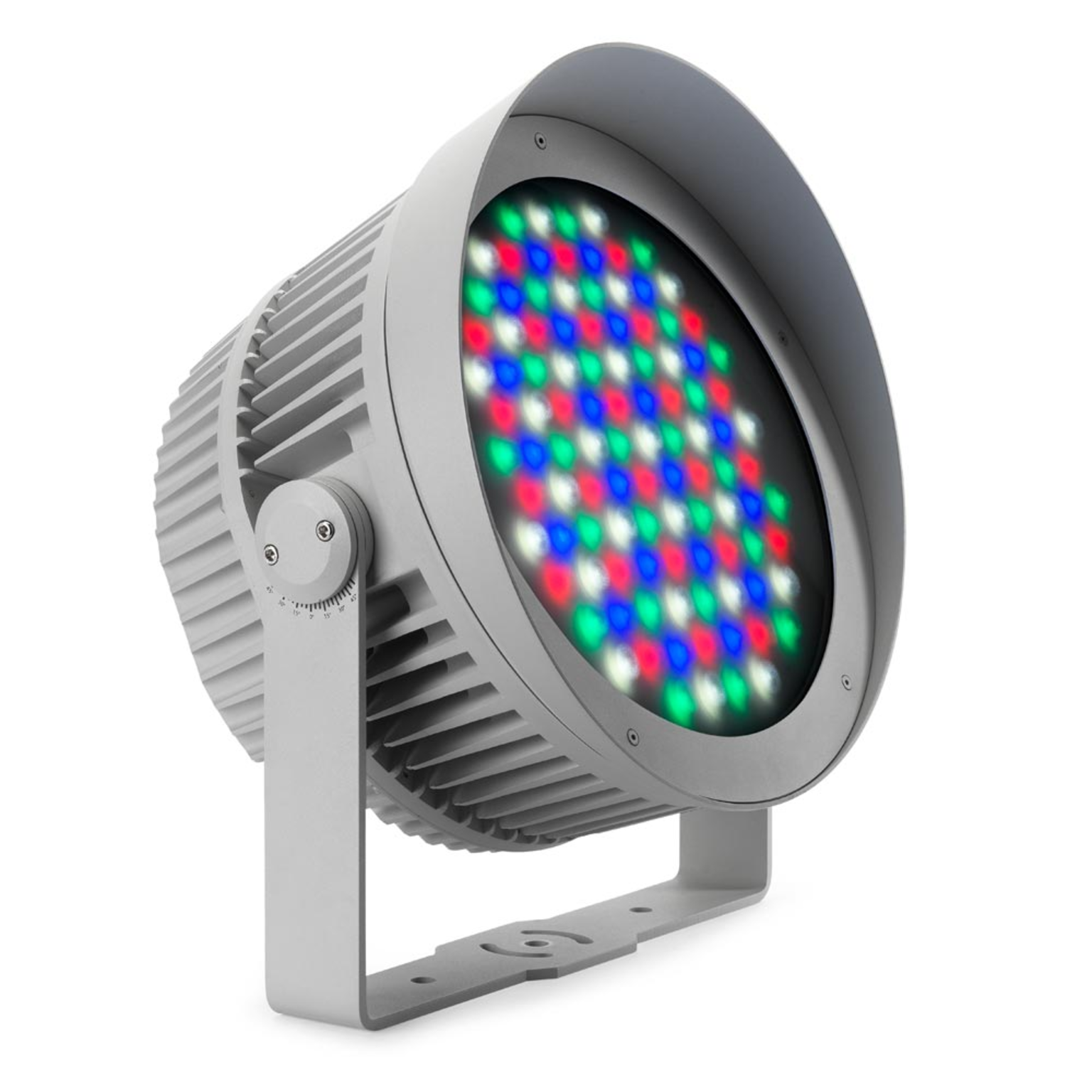

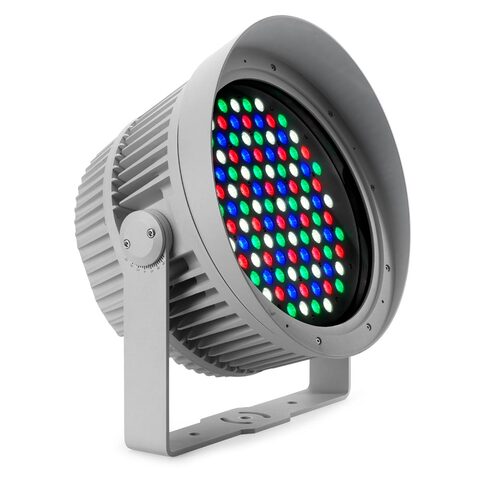

Exterior Wash™ 300 is a powerful, compact and energy-efficient LED lighting fixture designed to illuminate large structures, building facades and bridges. A discreet, optional snoot integrates seamlessly with the slick design of the fixtures. It has built-in display for ease-of-use, a wide selection of beam angles and is fully IP-rated for permanent outdoor use.

The Exterior Wash 300 is designed for narrow beam applications and is based on separate LEDs for red, green, blue and white

Learn more about our product verification and reliability

  • Narrow beam configuration with 6 beam angle options
  • Functional and discreet optional snoot which integrates with the design of the fixtures
  • Control via DMX, RDM and OLED display

Videos





Features

  • Powerful single color R,G,B,W LEDs
  • Up to 10.300 lumens at full white (RGBW)
  • Six different beam angle options
  • Internal power and control (DMX, RDM and OLED display)
  • Rugged IP66 housing
  • 0 – 100% intensity control

Specifications

  • Physical Length: 283 mm (11.2 in.) Width: 404 mm (15.9 in.) Height: 439 mm (17.3 in.) Weight: 19.0 kg (42.0 lbs.)
    Dynamic Effects Intensity: 0 - 100% Color mixing: RGBW
    Control and Programming Control systems: DMX, RDM Stand-alone control: Up to 20 scenes with global fade/hold times Setting, addressing, standalone programming: Control panel with OLED display DMX channels: 3-5 depending DMX mode Receiver: RS-485 DMX compliance: ANSI/ESTA E1.20 Firmware update: Serial upload via DMX link
    Optics Light source: 26 x R, 28 x G, 22 x B and 28 x W single-color LEDs Minimum LED lifetime: 50,000 hours (to >70% luminous output)* LED manufacturer: Cree Beam Angle Options:

    No diffuser: 7.5°
    Narrow diffuser: 11.5°
    Medium diffuser: 25°
    Wide diffuser: 41°
    Very wide diffuser: 59°
    Asymmetric diffuser: 65° x 14.5°

    Binning: Tight color and flux binning Calibration: Full Gamut Color Calibration *Figure obtained under manufacturer's test conditions
    Photometric Data CRI (Color Rendering Index) : > 70 CCT: 6500 K (White LED) Total luminous output: 10300 lumens*

    * All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.

    Construction Housing: Cast aluminum Color: Light grey (white, black or other colors available on request) Ingress protection rating: IP66 Surface treatment: Anodized and electrostatic powder-coated Effective Projected Area (EPA): 0.14 m² including snoot Impact resistance: IK08 (with control panel display cover plate installed) Corrosion resistance: C5-M (very high corrosivity / marine, ISO 12944) Vibration resistance: 1.0g, Sinusoidal (IEC 60068-2-6)
    0,7g RMS Random (IEC 60068-2-64)
    Installation Mounting: Adjustable yoke Orientation: Any Minimum distance to illuminated surfaces: 0.2 m (0.6 ft.)
    Connections Power connection: 1.8 m (5.9 ft.) cable tail without connector Power input cable type, EU models: H05RN-F 300/500V, 3 x 0.75 mm2, Ø 7 mm Power input cable type, US models: SJOW 18AWG, 300V, WL F1, Ø 8 mm Data connection: 1.8 m (5.9 ft.) open ended 5-conductor combined input + output cable tail All cable entries: IP68 cable gland
  • Electrical AC power: 100 - 240 / 277 V nominal, 50/60 Hz Power supply unit: Integrated, auto-sensing multi-voltage Power Consumption: 6 W (steady state, all LEDs at zero intensity) Typical half-cycle RMS inrush current: 10.9 A Maximum total power consumption: 280 W Surge protection: 4 KV Max earth leakage: 0.25 mA
    Typical Power and Current 100 V, 60 Hz: 2.6 A, 252 W, PF 0.99 120 V, 60 Hz: 2.1 A, 250 W, PF 0.99 230 V, 50 Hz: 1.1 A, 242 W, PF 0.97 277 V, 60 Hz: 1.0 A, 242 W, PF 0.94 Measurements made with fixture in steady state at nominal voltage, ambient temperature (Ta) 20° C (68° F), all LEDs at full intensity. Allow for a deviation of +/- 10%.
    Thermal Cooling: Convection Maximum ambient temperature (Ta max.): 45° C (113° F)* Minimum ambient temperature (Ta min.): -30° C (-22° F)** Maximum surface temperature, steady state, at 40° C ambient: 70° C (158° F) Total heat dissipation (calculated, +/- 10%): 945 BTU/hr

    *Above this temperature, the fixture regulates output to protect from overheating
    **Power must be maintained below -20° C (-4° F)

    Environmental RoHS: Compliant REACH: Compliant WEEE: Compliant Proposition 65: Compliant Efficacy (max output): 43 lm/W LWR*: 542 lm/kg (245 lm/lb)

    *LWR = Lumen-to-Weight Ratio

    Approvals Global CB Certification/IECEE: IEC 60598-2-5 (IEC 60598-1) EU safety: EN60598-2-5 (EN60598-1), EN62471, EN62493, EN60598-2-1 EU EMC: EN55015, EN61547, EN61000-3-2, EN6100-3-3, EN61000-4-2, EN6100-4-4, EN6100-4-5 US safety: ANSI/UL 1598 US EMC: 47 CFR Part 15 Class A Canadian safety: CSA C.22.2 No. 250 Australia/NZ: RCM India: BIS
    Included Items Cover plate for control panel
    Related Items Martin Companion Cable: P/N 91616091
    Accessories Exterior Wash 300 Series, narrow diffuser kit: P/N 91610155 Exterior Wash 300 Series, medium diffuser kit: P/N 91610156 Exterior Wash 300 Series, wide diffuser kit: P/N 91610157 Exterior Wash 300 Series, very wide diffuser kit: P/N 91610158 Exterior Wash 300 Series, asymmetric diffuser kit: P/N 91610159 Exterior Wash 300 Series, glare shield / snoot: P/N 91611735 Exterior Wash 300 Honeycomb Louvre: P/N 91611858
    Ordering Information Exterior Wash 300, 7°, EU, aluminum: P/N 90507070 Exterior Wash 300, 7°, US, aluminum: P/N 90507071

Downloads

  Version Language Size Uploaded
Specifications
file type icon Exterior Wash 300 Spec Sheet-English
en version B, updated: Nov 2018
en  994 KB Nov 2018
file type icon Exterior Wash System Diagrams
en version B, updated: Oct 2020
en  295 KB Oct 2020
Manuals
file type icon Exterior Wash 300 Series - User Manual
en version L, updated: Dec 2020
en  3.08 MB Dec 2020
file type icon Exterior Wash 300 Serie - Bedienungsanleitung
de version A, updated: Oct 2020
de  949 KB Oct 2020
file type icon Exterior Wash 300 Series - Manuel d'utilisation
fr version B, updated: Oct 2020
fr  704 KB Oct 2020
Brochures
file type icon Pro Install Overview Brochure
en updated: Oct 2023
  en  23.1 MB Oct 2023
Photometrics
file type icon Exterior Wash 300 - Photometrics files
en version A, updated: Mar 2024
en  635 KB Mar 2024
Illustrations
file type icon Exterior Wash 300 Series (no-snoot) - 2D dimensions (DWG)
en version A, updated: Oct 2020
en  10.9 MB Oct 2020
file type icon Exterior Wash 300 Series (no-snoot) - 2D dimensions (PDF)
en version A, updated: Oct 2020
en  2.59 MB Oct 2020
file type icon Exterior Wash 300 Series (With-snoot) - 2D dimensions (PDF)
en version A, updated: Oct 2020
en  3.28 MB Oct 2020
file type icon Exterior Wash 300 Series (With-snoot) - 2D dimensions (DWG)
en version A, updated: Oct 2020
en  16.4 MB Oct 2020
Symbols
file type icon AutoCAD 2D Symbols
en version 2.2, updated: Mar 2024
2.2  en  3.74 MB Mar 2024
file type icon AutoCAD 3D Symbols
en version 2.2, updated: Mar 2024
2.2  en  14.3 MB Mar 2024
file type icon Vectorworks Symbols
en version 3.9, updated: Mar 2024
3.9  en  373 MB Mar 2024
CAD Drawings
file type icon Exterior Wash Series 3D (3DS-STEP-DWG)
en version A, updated: May 2018
en  56.5 MB May 2018
Compliances
file type icon Exterior Wash 300 Series - EU Declaration of Conformity
en version A, updated: Oct 2020
en  95 KB Oct 2020
file type icon Exterior Wash Series - ETL Listing Verification
en version B, updated: May 2018
en  349 KB May 2018
file type icon Exterior Wash Series - Product Verification and Reliability Report
version C, updated: May 2018
  407 KB May 2018
Service Notes
file type icon 3D Partsfinder - Opening using Solid Works Composer Player
version 4, updated: Oct 2020
  743 KB Oct 2020
file type icon Exterior products - Performing a vacuum test - Tech note
en version H, updated: Oct 2020
en  1020 KB Oct 2020
EW series Incorrect warning print
updated: May 2018
      May 2018
Tech Notes
file type icon EW-Series UV Warning Printing
updated: Jan 2018
    Jan 2018
Firmware
platform icon Exterior Wash 300 - Firmware
version 2.1.0, updated: Mar 2024
2.1.0     Mar 2024
