FiberSource Q150 (discontinued)

FiberSource Q150
Larger Images

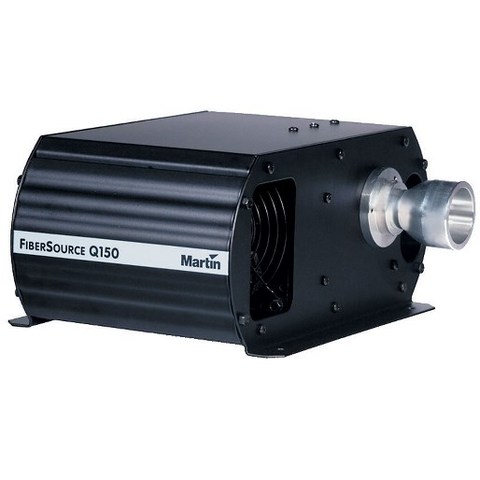

The FiberSource Q150 is a dedicated light generator for fiber optic applications which can accept up to 300 flexible 1 mm fibers, either side or end emitting. A 6000 hour 150W lamp produces a bright white light source.

Videos





















Features

  • 6000 hour 150W lamp included, produces a bright white light source.
  • Accepts up to 300 flexible 1 mm fibers, either side or end emitting.
  • Colored light with the insertion of a standard 52 mm dichroic filter.
  • Compatible with all major fiber manufacturers.
  • Special low noise version available for use in controlled ambient temperature environments

Specifications

Physical Length: 230 mm Width: 317 mm Height: 139 mm Weight: 5 kg
Lamp Type: 150 W metal halide Approved lamps: Osram HQI-R 150 Socket: Separate connector for integral lamp wires Control: Remote on/off
Construction Housing: Steel and aluminum Finish: Electrostatic powder-coated Color: Black (RAL 9005) Protection rating: IP20
Installation Orientation: Horizontal, or vertical with lamp horizontal Minimum distance to combustible materials: 0.1 m Minimum clearance around fan and air vents: 0.1 m
Connections Power connection: 3-pin IEC male socket
Electrical AC power: 220/230/240/250 V, 50/60 Hz Main fuse: 5 AT (slow blow)
Typical Power and Current 220 V, 60 Hz: 180 W, 1.0 A 230 V, 50 Hz: 180 W, 0.9 A Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:
Thermal Maximum ambient temperature (Ta max.): 40° C Maximum surface temperature, steady state, Ta=40° C: 65° C Cooling: Forced air cooling system Total heat dissipation (calculated, +/- 10%): 615 BTU/hr.
Approvals EU safety: EN 60598-2-17 + Corr. A2 EU EMC: EN 55 015, EN 55 103-1, EN 61 547
CE
Included Items Osram HQI-R 150 lamp: 97010101 1.5 m power cable, 3-pin IEC and Schuko power plug: 11501011 2 m power cable, 3-pin IEC and Edison connectors: 11501501
Accessories Fiber adaptor, 75-350 pcs. (25 pcs. interval) Ø 1 mm fiber, D= 30 mm: 91611035 10 m Light Fiber LF120HL, Ø 12 mm: 91611070 20 m Light Fiber LF120HL, Ø 12 mm: 91611071 60 m Light Fiber LF120HL, Ø 12 mm: 91611072 Optional color filters: See user manual
Spare Parts Osram HQI-R 150 lamp: 97010101 5.0 AT main fuse: 05020018
Ordering Information FiberSource Q150, 220 V, 60 Hz: 90520300 FiberSource Q150, 230 V, 50 Hz: 90520200 FiberSource Q150, 250 V, 50 Hz: 90520202

Downloads

  Version Language Size Uploaded
Specifications
file type icon Technische Daten
de version B, updated: May 2018
de  13.3 KB May 2018
Manuals
file type icon FiberSource Q150 - User manual
en version B, updated: May 2018
en  250 KB May 2018
file type icon Manuel d'utilisation
fr version B, updated: May 2018
fr  156 KB May 2018
file type icon Bedienungsanleitung
de version B, updated: May 2018
de  153 KB May 2018
Illustrations
file type icon Dimensions (DXF)
en version A, updated: May 2018
en  226 KB May 2018
file type icon Dimensions
en version A, updated: May 2018
en  54.1 KB May 2018
Compliances
file type icon ELP PAR - EU Declaration of Conformity
en version A, updated: May 2018
en  48.4 KB May 2018
Service Notes
CPFC Capacitor Replacement Recommendation
en version B, updated: May 2018
B   en    May 2018
file type icon Fiber Adaptor Kit
en version B, updated: May 2018
en  537 KB May 2018
Hints And Tips
Inserting the Fiber Adapter
en version A, updated: May 2018
A   en    May 2018
Discharge Lighting Shutdown Guidelines
en version A, updated: May 2018
A   en    May 2018
file type icon Philips CDM 150 SA/R Not Approved For Use
en version A, updated: Oct 2020
en  43.4 KB Oct 2020
