MAC 101 CT (discontinued)

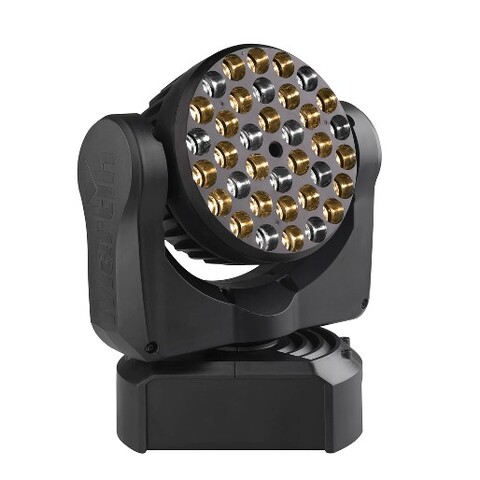

MAC 101 CT
Larger Images

The ultra-compact MAC 101 LED moving head wash is available in three white light versions that expand its use to applications where high quality, pure white light is needed. The MAC 101 CT incorporates both cold and warm LEDs instead of RGB for a better white light quality and greater output. Color temperature calibrated to ensure visual consistency across fixtures, the MAC 101 CT allows for easy changes in color temperature from crisp cold looks to warm shades, and features simple intensity control.

  • High quality white LED light
  • Ideal for highlighting skin tones, textiles or set pieces
  • Variable color temperature

Features

  • High quality white LED light
  • Ideal for highlighting skin tones, textiles or set pieces
  • Variable color temperature
  • Tight and punchy beam effects, long throw, modern ACL replacement
  • Multiple field angle options for a perfect wash via optional diffusers
  • Incredibly fast and precise movement
  • Ultra-compact, low weight design (3.7 kg)
  • Less than 125 watt total power requirement

Specifications

Physical Length: 241 mm across yoke Width: 241 mm across yoke Height: 304 mm Weight: 3.7 kg
Dynamic Effects Color temperature control: Variable 2800 - 6200 K Shutter effect: Electronic, with pulse and random effects Electronic dimming: 0 - 100%, four dimming curve options Pan: 540° Tilt: 240° Pan and tilt speed: Adjustable via onboard control panel and DMX
Control and Programming Control options: CTC, individual cold and warm white intensity RDM: Implemented Control resolution: 8-bit, with 16-bit control of pan & tilt DMX channels: 10 Setting and addressing: Control panel with backlit graphic display Protocol: USITT DMX512-A, ANSI/ESTA E1.20 RDM Transceiver: RS-485 Fixture software update: Via DMX with Martin™ USB Duo DMX Interface Box
Optics Light source: Cree XP-E high power emitters Minimum LED lifetime: 50 000 hours (to >70% luminous output)* LED refresh rate: 1220 Hz *Figure obtained under manufacturer´s test conditions:
Construction Color: Black or white Housing: High-impact flame-retardant thermoplastic Protection rating: IP20
Installation Mounting points: One M12 threaded hole for rigging clamp Location: Indoor use only, must be fastened to surface or structure Orientation: Any Minimum distance to combustible materials: 100 mm from head, no minimum distance from base Minimum distance to illuminated surfaces: 200 mm
Connections AC power input: Neutrik PowerCon AC power throughput: Neutrik PowerCon DMX data in/out: 5-pin locking XLR
Electrical AC power: 100-240 V nominal, 50/60 Hz Maximum total power consumption: 123 W Power supply unit: Auto-ranging electronic switch mode Main fuse: 5 AT (slow blow) Typical power consumption, all effects static, zero light output: <25 W
Typical Power and Current 100 V, 50 Hz: 122 W, 1.3 A, PF 0.991 120 V, 60 Hz: 121 W, 1.1 A, PF 0.987 208 V, 60 Hz: 123 W, 0.7 A, PF 0.938 230 V, 50 Hz: 123 W, 0.6 A, PF 0.915 240 V, 50 Hz: 123 W, 0.6 A, PF 0.900 PF = power factor: Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.:
Thermal Cooling: Forced air (temperature-regulated, low noise, user-definable levels) Maximum ambient temperature (Ta max.): 40° C Minimum ambient temperature (Ta min.): 5° C Total heat dissipation (calculated, +/- 10%): 420 BTU/hr.
Approvals EU safety: EN 60598-2-17, EN 62471 EU EMC: EN 55103-1, EN 55103-2, EN 55015, EN 61547 US safety: UL 1573 US EMC: FCC Part 15 Class A Canadian safety: CSA E598-2-17 Canadian EMC: ICES-003 Class A Australia/NZ: C-TICK N4241
CE ETL C US Intertek
Included Items M12 bolt suitable for use with Martin rigging clamps: User manual: 35000246
Accessories 3 m power cable, 12 AWG, SJT, with PowerCon NAC3FCA power input connector: 05342804 Neutrik PowerCon NAC3FCA power input connector, cable mount, blue: 05342804 Neutrik PowerCon NAC3FCB power output connector, cable mount, light grey: 05342805 Set of eight narrow diffusers for MAC 101: 91616023 Set of eight wide diffusers for MAC 101: 91616018 Set of 4 top hats for MAC 101: 91611358 Set of 5 quick-mount surface mounting brackets for MAC 101: 91606017 G-clamp: 91602003 Quick trigger clamp: 91602007 Safety cable, safe working load 50 kg: 91604003 8-unit flightcase for MAC 101™: 91515010 Half-coupler (tube) clamp: 91602005
Related Items Martin USB Duo™ DMX Interface Box: 90703010 Martin RDM 5.5 Splitter™: 90758150
Ordering Information MAC 101 CT™ in cardboard box: 90231620 MAC 101 CT™ in 8-unit flightcase: 90231625

Downloads

  Version Language Size Uploaded
Manuals
file type icon MAC 101 Serie - Bedienungsanleitung
de version G, updated: May 2018
de  793 KB May 2018
file type icon MAC 101 Series - User Manual
en version G, updated: May 2018
en  880 KB May 2018
file type icon Série MAC 101 - Manuel d´utilisation
fr version G, updated: May 2018
fr  1020 KB May 2018
CAD Drawings
file type icon MAC 101 - Head Horizontal (3DS)
en version A, updated: May 2018
en  2.17 MB May 2018
file type icon MAC 101 - Head Vertical (3DS)
en version A, updated: May 2018
en  2.3 MB May 2018
Compliances
file type icon MAC 101 / Aura / Aura XB - ETL Authorization to Mark
en version D, updated: May 2018
en  621 KB May 2018
file type icon MAC 101 - EU Declaration of Conformity
en version B, updated: May 2018
en  311 KB May 2018
Software
platform icon MAC101 CT_Main CPU software
version 1.0.0, updated: May 2018
1.0.0     87.4 KB May 2018
Service Notes
Installing MAC 101 Series diffuser filters
en version A, updated: May 2018
A   en    May 2018
file type icon MAC 101 / Aura / Aura XB - Mounting Bracket Installation
en version B, updated: May 2018
en  441 KB May 2018
file type icon 3D Partsfinder - Opening using Solid Works Composer Player
version 4, updated: Oct 2020
  743 KB Oct 2020
Hints And Tips
Avoiding damage from sunlight and other light sources
en version B, updated: May 2018
B   en    May 2018
Firmware
platform icon MAC 101 CT - Firmware
version 1.0.0, updated: Aug 2023
1.0.0     Aug 2023
