Mania EFX500 (discontinued)

Larger Images

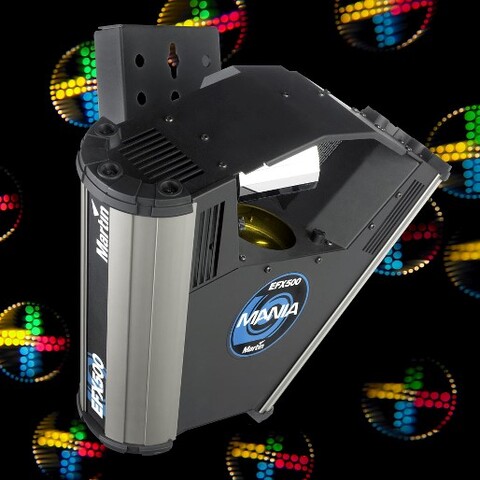

The Mania EFX500 is a powerful, “full house” 250 W halogen effect that kicks out a dizzying array of razor sharp effects and patterns.

Features

  • 250 W halogen lamp
  • 1000 hour lamp included
  • Strobe effect with gobo wheel
  • Rotating and swiveling mirror drum
  • Manual focus
  • DMX, stand alone (music or auto-trig) and master/slave function
  • Continuous operation - no cool down time needed
  • 12 pre-programmed macros for fast start-up
  • 11 gobos plus blackout
  • All major safety approvals CE, ETL and CETL
  • Rigorously tested for total reliability

Specifications

Physical Length: 410 mm (16.2 in.) Width: 500 mm (19.7 in.) Height: 230 mm (9.1 in.) Weight: 12.5 kg (27.6 lbs.) All dimensions and weights include the supplied mounting plate.:
Dynamic Effects Motorized rotating parabolic mirror dish: Gobo wheel: 11 colored gobos plus blackout Motorized mirror drum: 180° pan (swivel) and 360° tilt (continuous rotation) Electronic dimming: 0 - 100% Shutter: Strobe effect variable up to 8 Hz
Control and Programming Control options: DMX, stand-alone, synchronized (master/slave) DMX channels: 7/9 DMX address setting: Onboard control panel with 3-digit display Macro programs selectable via DMX: 12 Stand-alone trigger options: Music trig, auto trig (both selectable via control panel or via DMX) Music trig sensitivity: Electronically adjustable Protocol: USITT DMX512/1990 Receiver: RS-485 Firmware update: Serial upload via DMX link
Lamp Type: 250 W, 24 V ELC halogen Approved lamps: Philips ELC 10H 250 W (1000 hrs.) Socket: G5.3
Optics Manual focus: 2 m - 20 m
Construction Housing: Steel and aluminum
Installation Mounting points: Adjustable mounting bracket Orientation: Any
Connections AC power input: 3-pin IEC male socket DMX data in/out: 3-pin locking XLR
Electrical AC power: Switch-selectable 110-120 V, 60 Hz / 220-240 V, 50 Hz Main fuse: 3.15 AT (slow blow)
Typical Power and Current 110 V, 60 Hz: 229 W, 2.1 A, PF 0.997 115 V, 60 Hz: 248 W, 2.2 A, PF 0.997 120 V, 60 Hz: 264 W, 2.2 A, PF 0.997 220 V, 50 Hz: 229 W, 1.1 A, PF 0.995 230 V, 50 Hz: 247 W, 1.1 A, PF 0.995 240 V, 50 Hz: 265 W, 1.2 A, PF 0.994 Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:
Thermal Cooling: Forced air Maximum ambient temperature (Ta max.): 40° C Maximum surface temperature, steady state, Ta=40° C: 100° C Total heat dissipation (calculated, +/- 10%): 900 BTU/hr.
Approvals EU safety: EN 60598-1, EN 60598-2-17 EU EMC: EN 55015, EN 61000-3-2, EN 61000-3-3, EN 61547 US safety: UL 1573 Canadian safety: CSA C22.2 No. 166
CE ETL C US Intertek
Included Items Philips ELC 10H 250 W 1000 hour lamp: 97000111 Adjustable mounting bracket: 23812650 5 m data cable, 3-pin XLR: 11820008 2 m power cable, 18 AWG, with US power plug (UL approved): 11501501 3 m EU power cable, 3 x 1 mm2, IEC, Schuko mains plug: 11501017 3 m EU power cable, 3 x 1 mm2, IEC, no mains plug: 11501013 User manual: 35000168
Accessories G-clamp: 91602003 Half-coupler clamp: 91602005 DMX termination plug, 3-pin male XLR: 91613017 Safety cable, safe working load 50 kg: 91604003
Spare Parts Philips ELC 10H 250 W 1000 hour lamp: 97000111 3.15 AT 5x20mm main fuse: 05020043
Ordering Information Mania EFX500, 115/230 V, 50/60 Hz: 90430050
