Martin Mania SCX500

Larger Images

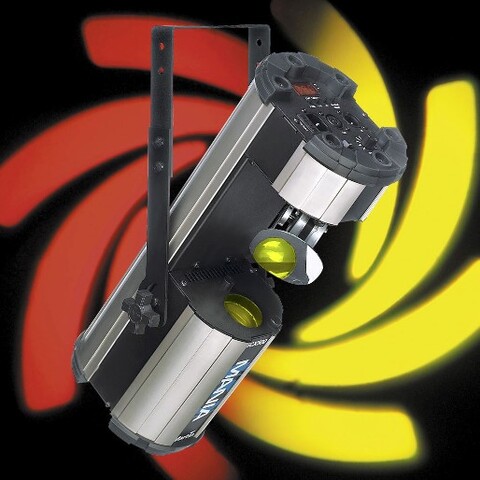

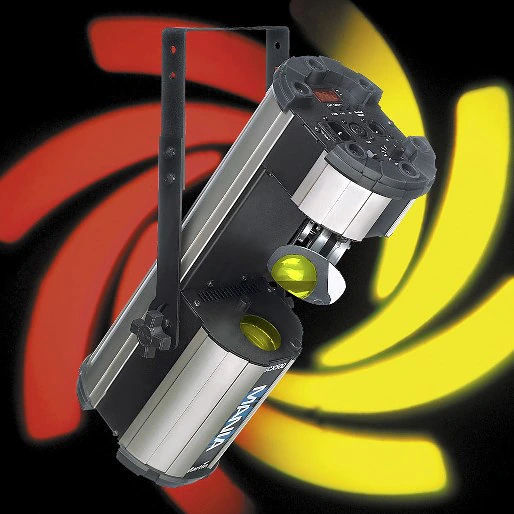

The Mania SCX500 is a powerful yet compact 150 W halogen scanner with separate color and gobo wheels for a broad range of effects.

Features

150 W halogen lamp
500 hour lamp included
15 solid colors plus 5 multi colors
15 gobos plus blackout
Strobe effect with gobo wheel
High-speed mirror
Manual focus
DMX, stand alone (music or auto-trig) and host/client function
Continuous operation - no cool down time needed
12 pre-programmed macros for fast start-up
All major safety approvals CE, ETL and CETL
Rigorously tested for total reliability

Specifications

Physical Length: 442 mm (17.4 in.) Width: 200 mm (7.9 in.) Height: 178 mm (7.0 in.) Height: 364 mm (14.4 in.) including bracket Weight: 6.7 kg (14.8 lbs.) including bracket

Dynamic Effects Color wheel: 14 single colors + 5 multi-colors + open, full and split color selection Gobo wheel: 16 gobos Dimmer: 0 - 100% Motorized mirror: 180° pan and 72° tilt

Control and Programming Control options: DMX, stand-alone, synchronized (host/client) DMX channels: 8/6 DMX address setting: Onboard control panel with 3-digit display Macro programs selectable via DMX: 12 Stand-alone trigger options: Auto trig (selectable via control panel or via DMX), music trig Stand-alone programming: Onboard control panel with 3-digit display Protocol: USITT DMX512/1990 Receiver: RS-485 Firmware update: Serial upload via DMX link

Lamp Type: 150 W, 15 V MR16 halogen Fitted as standard: Philips EFR/5H JCR H5 Socket: GZ 6.35

Optics Beam angle: 15° Manual focus: 2 m - 20 m

Construction Housing: Steel and aluminum

Installation Mounting points: Adjustable bracket, mounting plate Orientation: Any

Connections AC power input: 3-pin IEC male socket DMX data in/out: 3-pin locking XLR

Electrical AC power (US models): 110-120 V nominal, 60 Hz AC power (EU models): 220-240 V nominal, 50 Hz Main fuse (110-120 V power): 3.15 AT (slow blow) Main fuse (220-240 V power): 2 AT (slow blow)

Typical Power and Current US model: 110 V, 60 Hz: 138 W, 1.27 A 115 V, 60 Hz: 150 W, 1.30 A 120 V, 60 Hz: 159 W, 1.35 A EU model: 220 V, 50 Hz: 144 W, 0.66 A 230 V, 50 Hz: 154 W, 0.66 A 240 V, 50 Hz: 164 W, 0.68 A Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:

Thermal Cooling: Forced air Maximum ambient temperature (Ta max.): 40° C Total heat dissipation (calculated, +/- 10%): 512 BTU/hr.

Approvals EU safety (EU model): EN 60598-2-17 EU EMC (EU model): EN 55015, EN 61000, EN 61547 US safety (US model): UL 1573 Canadian safety (US model): CSA C22.2 No. 166

Included Items Philips EFR/5H JCR 15 V, 150 W H5 halogen lamp: 97000110 Adjustable U-bracket: 55430301 Mounting plate: 21060490 5 m data cable, 3-pin XLR: 11820008 2 m US power cable, 3 x 18 AWG, with UL approved US power plug (US model): 11501501 3 m EU power cable, 3 x 1 mm², IEC, Schuko mains plug (EU model): 11501017 3 m EU power cable, 3 x 1 mm², IEC, no mains plug (EU model): 11501013 User manual: 35000157

Accessories G-clamp: 91602003 Half-coupler clamp: 91602005 DMX termination plug, 3-pin male XLR: 91613017 Safety cable, safe working load 50 kg: 91604003

Spare Parts Philips EFR/5H JCR 15 V, 150 W H5 halogen lamp: 97000110 3.15 AT main fuse (US model, 110-120 V): 05020013 2 AT main fuse (EU model, 220-240 V): 05020009

Ordering Information Mania SCX500, US model, 110-120 V, 60 Hz: 90430081 Mania SCX500, EU model, 220-240 V, 50 Hz: 90430080
