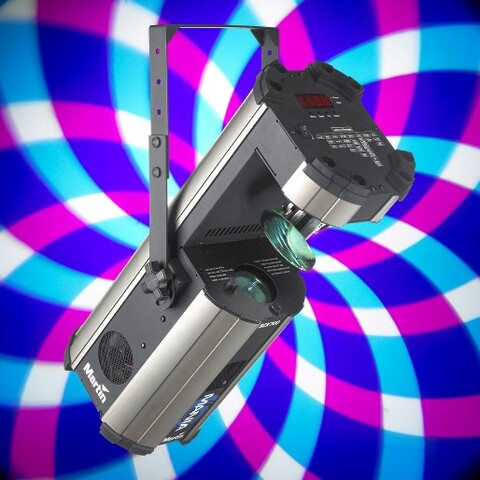

Mania SCX700 (discontinued)

Larger Images

The SCX700 is a powerful 150 W discharge lamp scanner boasting the highest quality optical system for maximum light output and truly high-definition image quality.

Features

  • 150 W discharge lamp
  • Long lamp life (6000 hrs)
  • 9 interchangeable colors plus open
  • 7 interchangeable indexable rotating gobos plus open (3 glass 4 metal)
  • Separate shutter for strobe effect
  • High-speed mirror
  • Manual focus
  • DMX, stand alone (music or auto-trig) and master/slave function
  • Continuous operation - no cool down time needed
  • 12 effect plus 12 pan/tilt pre-programmed macros for fast start-up
  • All major safety approvals CE, ETL and CETL
  • Rigorously tested for total reliability

Specifications

Physical Length: 525 mm (20.7 in.) Width: 240 mm (9.5 in.) Height: 203 mm (8.0 in.) Height: 408 mm (16.1 in.) including bracket Weight: 13 kg including bracket
Dynamic Effects Color wheel: 9 interchangeable colors + open, full and split color selection Rotating gobo wheel: 7 interchangeable rotating gobos (4 metal, 3 coated glass), gobo selection, continuous rotation and shake Mechanical dimmer/shutter: 0 - 100% continuous dimming, strobe effects, music triggered shutter, instant open & blackout Motorized mirror: 198° pan and 72° tilt
Control and Programming Control options: DMX, stand-alone, synchronized (master/slave) DMX channels: 6/10 DMX address setting: Onboard control panel with 4-digit display Stand-alone trigger options: Music trig (selectable via control panel or via DMX), auto trig Protocol: USITT DMX512/1990 Receiver: RS-485 Firmware update: Serial upload via DMX link
Lamp Type: 150 W discharge Approved lamps: Philips MasterColor CDM-SA/T 150, Philipa MSD 150/2 Socket: G12
Optics Beam angle: 18.3° Manual focus: 2 m - 20 m
Construction Housing: Steel and aluminum
Gobos Outside diameter: 22.5 mm + 0/- 0.3 mm Maximum image diameter: 17 mm
Installation Mounting points: Adjustable bracket Orientation: Any
Connections AC power input: 3-pin IEC male socket DMX data in/out: 3-pin locking XLR
Electrical AC power: 110-120 V, 60 Hz (US model) / switch-selectable 220-240 V, 50 Hz (EU model) Main fuse: 3.15 AT slow blow (US model), 2 AT slow blow (EU model)
Typical Power and Current US model: 110 V, 60 Hz: 194 W, 1.9 A, PF 0.950 120 V, 60 Hz: 215 W, 2.0 A, PF 0.905 EU model: 220 V, 50 Hz: 193 W, 1.0 A, PF 0.955 230 V, 50 Hz: 208 W, 1.0 A, PF 0.942 240 V, 50 Hz: 214 W, 1.0 A, PF 0.945 Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:
Thermal Cooling: Forced air Maximum ambient temperature (Ta max.): 40° C Maximum surface temperature, steady state, Ta=40° C: 80° C Total heat dissipation (calculated, +/- 10% at 110 V, 60 Hz / 230 V, 50 Hz): 670 / 710 BTU/hr.
Approvals EU safety: EN 60598-1, EN 60598-2-17 EU EMC: EN 55015, EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3, EN 61547 US safety: UL 1573 Canadian safety: CSA C22.2 No. 166
CE ETL C US Intertek
Included Items Philips CDM-SA/T 150 W lamp: 97010111 Adjustable U-bracket: 55430322 5 mm Allen key: 50520615 5 m data cable, 3-pin XLR: 11820008 2 m US power cable, 3 x 18 AWG, with UL approved US power plug (US model): 11501501 3 m EU power cable, 3 x 1 mm2, IEC, Schuko mains plug (EU model): 11501017 3 m EU power cable, 3 x 1 mm2, IEC, no mains plug (EU model): 11501013 User manual: 35000169
Accessories Philips MSD 150/2 lamp: 97010117 G-clamp: 91602003 Half-coupler clamp: 91602005 DMX termination plug, 3-pin male XLR: 91613017 Safety cable, safe working load 50 kg: 91604003
Spare Parts Philips CDM-SA/T 150 W lamp: 97010111 3.15 AT 5x20mm main fuse (US models): 05020043 2 AT 5x20mm main fuse (EU models): 05020009
Ordering Information Mania SCX 700 US model, 110-120 V, 60 Hz: 90430085 Mania SCX 700 EU model, 220-240 V, 50 Hz: 90430084
