PDE Junction Box Active

POWER AND DATA INPUT FOR THE PDE CABLING SYSTEM

Larger Images

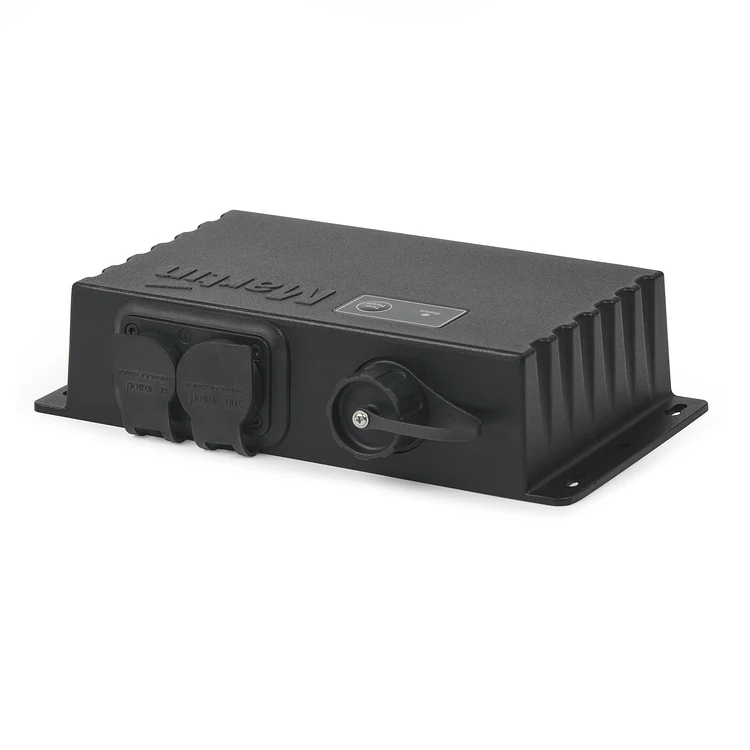

The Martin PDE Junction Box Active merges power, DMX and Ethernet signals into a single connector and cable system, as used by the Martin VDO Atomic family of fixtures.

The unit also features a DMX-thru and Ethernet-thru port, supported by the internal RDM-compliant DMX splitter and 3-port Ethernet switch. The multi-color status LED gives a clear indication of the protocol being received, as it is compatible with DMX, Art-Net, sACN and Martin P3. And, the convenient test button allows all connected fixtures to be tested at once for easy system checking during installation.

The box is fully IP65 rated for outdoor use and features a robust metal housing. The flanges on the side allow for mounting to any surface, while the M10 threaded hole allows for the attachment of a rigging clamp.

Features

  • powerCON TRUE1 TOP power in & thru
  • XLR 5 TOP DMX in & thru (build-in DMX/RDM splitter)
  • etherCON TOP Ethernet in & thru (build-in gigabit switch with fail-safe bypass)
  • Martin PDE Hybrid output
  • IP65 rated
  • Status LED to indicate received protocol
  • Pushbutton to recall test patterns on all attached fixtures
  • Robust metal housing
  • Wall or truss-mountable

Specifications

  • Physical Length: 215 mm (8.5 in.) (incl. mounting flanges) Width: 115 mm (4.5 in.) Height: 51 mm (2.0 in.) Weight: 1 kg (2.2 lbs.)
    Control and Programming Control Protocols: DMX, RDM, Art-Net, RDM over Art-Net, sACN and P3 Protocol detection: Automatic Fixture Identification: User-settable ID number DMX compliance: USITT DMX512-A RDM compliance: ANSI/ESTA E1.20 Art-Net Compliance: Art-Net 1, 2, 3 and 4; including RDM over Art-Net sACN Compliance: ANSI E1.31 - 2016 Martin P3 Compliance: P3 System Controller Software 5.1.0 or newer DMX/RDM Transceiver IN/THRU: Opto-Isolated RS-485 DMX/RDM Transceiver OUT: Opto-Isolated RS-485 Firmware update: via DMX using Martin Companion or via Ethernet using P3 System Controller Configuration: RDM, RDM over Art-Net or P3 Ethernet Transceiver THRU: 100/1000Mbit (with fail-safe bypass to Ethernet IN) Ethernet Transceiver IN: 100/1000Mbit (with fail-safe bypass to Ethernet THRU) Ethernet Transceiver OUT: 10/100Mbit
    Control/User Interface Device status: Multi-color status LED Fixture Test: Pushbutton to call up test pattern on fixtures connected to PDE output
    Construction Housing: Aluminum Color: Black Protection rating: IP65 RoHS: Compliant REACH: Compliant
    Installation Location: indoor or temporary outdoor use Orientation: Any Wallmount: Using mounting flanges Trussmount: Using half-coupler clamp in M10 threaded hole, max. bolt length 22 mm
    Connections

    AC power input: Neutrik powerCON TRUE1 TOP (IP65)
    AC power thru: Neutrik powerCON TRUE1 TOP (IP65)
    Ethernet input: Neutrik etherCON TOP (IP65)
    Ethernet thru: Neutrik etherCON TOP (IP65)
    DMX input: Neutrik XLR 5-pin Male TOP (IP65)
    DMX thru: Neutrik XLR 5-pin Female TOP (IP65)
    AC Power, DMX and Network out: PDE hybrid connector (IP65)
    All connections hot plugging compatible

  • Electrical AC power: 100-240 V AC nominal, 50/60 Hz Power supply unit: Auto-ranging electronic switch mode Maximum power consumption: 6 W Typical half-cycle RMS inrush current at 230 V, 50 Hz: 1.5 A Typical earth-leakage current: 0.25 mA
    Typical Power and Current 100 V, 60 Hz: 5.1 W, 0.089 A, PF 0.58 120 V, 60 Hz: 5.1 W, 0.078 A. PF 0.56 208 V, 60 Hz: 5.5 W, 0.048 A, PF 0.55 230 V, 50 Hz: 5.7 W, 0.046 A, PF 0.55 240 V, 50 Hz: 5.9 W, 0.046 A, PF 0.55 Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%. PF = power factor.
    Thermal Cooling: Convection Maximum ambient temperature (Ta max.): 40° C Minimum ambient temperature (Ta min.): 0° C Maximum total heat dissipation, calculated, +/- 10%: 20 BTU/hr
    Approvals EU safety: EN 61347-2-11, EN 62493 EU EMC: EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547 US safety: UL 1573 US EMC: 47 CRF Chapter 15 Class B Canadian safety: CSA 22.2 No. 166 Canadian EMC: ICES-003 Class B, ICES-005 Class B Australia/NZ: RCM Global CB Certification/IECEE: IEC 61347-2-11 United Kingdom: UKCA
    Accessories

    Mechanical Accessories
    Super Lightweight Half Coupler Rigging Clamp, black: P/N 91602018

    Pre-Assembled Hybrid PDE Cables
    Power+Data Cable Rental PDE-PDE 1m: P/N 91616001
    Power+Data Cable Rental PDE-PDE 2.5m: P/N 91616002
    Power+Data Cable Rental PDE-PDE 5m: P/N 91616003
    Power+Data Cable Rental PDE-PDE 10m: P/N 91616004
    Power+Data Cable Rental PDE-PDE 25m: P/N 91616005

    Bulk Hybrid PDE Cable and Connectors
    Power+Data Connector PDE Male: P/N 91611701
    Power+Data Connector PDE Female: P/N 91611702
    Power+Data Cable Power-DMX-Ethernet Rental 100m: P/N 91616006

    Powercables
    Power Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1, 1.5 m (4.9 ft.): P/N 91611797
    Power Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1, 5 m (16.4 ft.): P/N 91611786
    Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1, 1.5 m (4.9 ft.): P/N 91610173
    Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1, 5 m (16.4 ft.): P/N 91610174
    Power Relay Cable, H07RN-F, 2.5 mm², TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91611784
    Power Relay Cable, H07RN-F, 2.5 mm², TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91611785
    Power Relay Cable, H07RN-F, 2.5 mm², TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91611796
    Power Relay Cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91610170
    Power Relay Cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91610171
    Power Relay Cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91610172
    Cable Connector, Neutrik PowerCON TRUE1 Female: P/N 91611789HU
    Cable Connector, Neutrik PowerCON TRUE1 Male: P/N 91611788HU

    Related Items

    Passive Junction Box Power-DMX-Ethernet to PDE: P/N 91610001
    BreakIn Cable Power-DMX-Ethernet to PDE: P/N MAR-91700000
    BreakOut Cable PDE to Power-DMX-Ethernet: P/N MAR-91700001
    Martin Companion Cable (for firmware update over DMX): P/N 91616091
    VDO Atomic Dot CLD in cardboard: P/N 90357701
    VDO Atomic Dot WRM in cardboard: P/N 90357702
    VDO Atomic Bold in cardboard: P/N MAR-90357703

    Ordering Information Active Junction Box Power-DMX-Ethernet to PDE: P/N MAR-91700002
