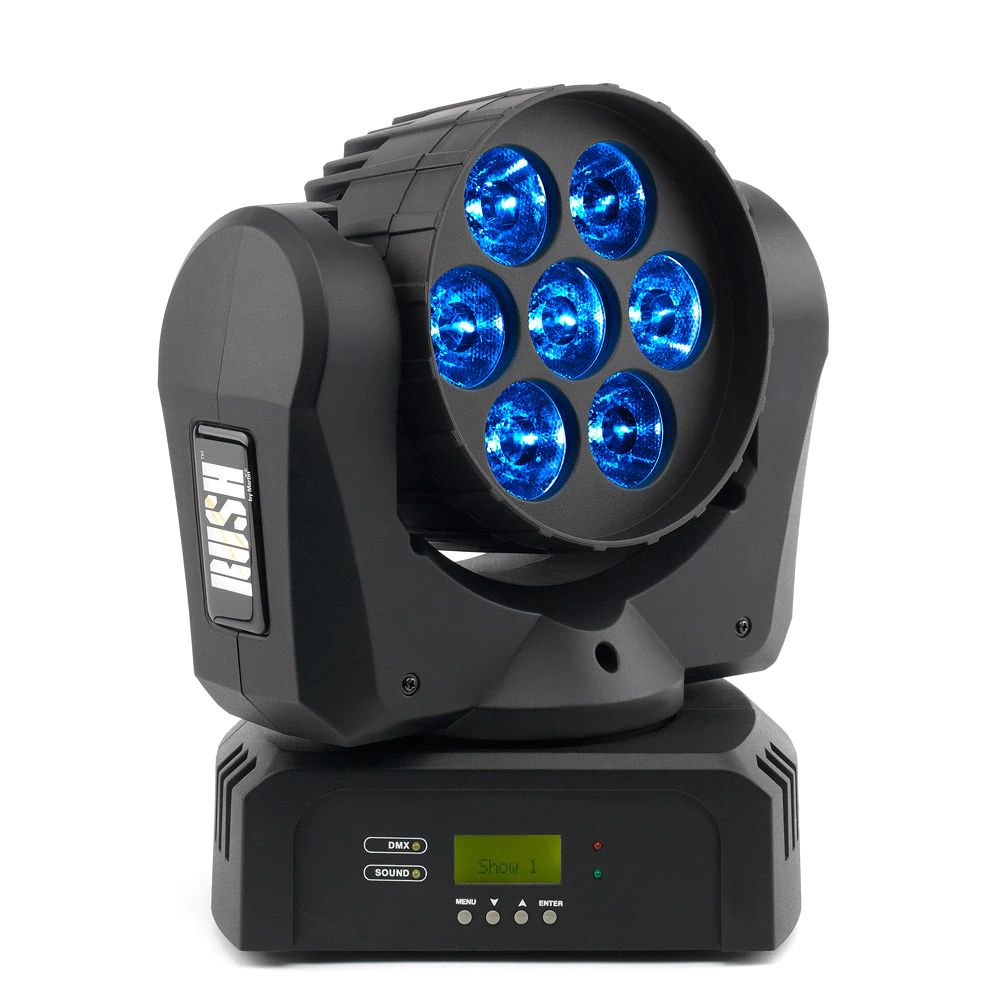

RUSH MH 2 Wash (discontinued)

Larger Images

Compact yet powerful, this fast and agile LED wash light moving head features RGBW color mixing. Unique wash beam effects are possible with auto trig shows and music trig sound activation.

Videos





Features

  • LED wash light moving head
  • Compact yet powerful
  • RGBW color mixing
  • DMX, music trig and auto trig operation
  • 17° one-tenth peak angle
  • Extremely fast and agile
  • Electronic dimming and strobe
  • 3 & 5 pin XLR

Specifications

  • Physical Length: 258 mm (10.2 in.) Width: 156 mm (6.2 in.) Height: 305 mm (12.0 in.) Weight: 5.7 kg (12.6 lbs.)
    Dynamic Effects Electronic shutter effect: Strobe effect, pulse effects, instant open and blackout Electronic dimming: 0 - 100%, four dimming curve options Color mixing: RGBW Electronic 'color wheel' effect: 33 LEE-referenced colors plus white, variable-speed color-wheel rotation effect and random color Pan: 540° Tilt: 180°
    Control and Programming Control options: DMX, stand-alone Stand-alone options: 4 pre-programmed shows Setting and addressing: Control panel with LCD display White balance control: RGB adjustment DMX channels: 12 Standalone trigger options: Music trig, auto trig Standalone memory: 20 scenes Protocol: USITT DMX512/1990
    Optics Light source: 7 x 10 W RGBW Cree MC-E LEDs Minimum LED lifetime: 50,000 hours (to >70% luminous output)* *Figure obtained under manufacturer's test conditions.
    Construction Housing: High-impact flame-retardant thermoplastic Color: Black Protection rating: IP20
    Installation Mounting points: Hex bolts Location: Indoor use only, must be fastened to surface or structure Orientation: Any
    Connections AC power in, thru: Neutrik PowerCon DMX in/out: 3-pin and 5-pin locking XLR
  • Electrical AC power: 100-240 V nominal, 50/60 Hz Typical total power consumption: 125 W Power consumption figures are typical, not maximum. Allow for +/-10% variation.
    Typical Power and Current 110 V, 60 Hz: 1.9 A, 125 W 230 V, 50 Hz: 1.0 A, 121 W Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.
    Thermal Cooling: Forced air (temperature-regulated, low noise) Maximum ambient temperature (Ta max.): 40° C (104° F) Minimum ambient temperature (Ta min.): 0° C (32° F) Total heat dissipation (calculated, +/- 10%): 430 BTU/hr. (at full intensity, full white)
    Approvals EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493 EU EMC: EN 55015, EN 55103-1, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547 US safety: UL 1573 US EMC: 47 CFR Part 15 Class A Canadian safety: CSA C22.2 No. 166 Canadian EMC: ICES-003 Class A Australia/NZ: C-TICK N4241
    Included Items Bracket for rigging clamp attachment: P/N 50480564 Power cable 1.5 m
    Related Items RUSH® Software Uploader 1: P/N 91611399
    Ordering Information RUSH MH 2 Wash™ in cardboard box: P/N 90280020

Downloads

  Version Language Size Uploaded
Specifications
RUSH MH 2 Wash Spec Sheet-English
en updated: Oct 23, 2020
  en  497 KB Oct 23, 2020
Manuals
RUSH MH 2 Wash - Manuel d´utilisation
fr version D, updated: Oct 23, 2020
fr  675 KB Oct 23, 2020
RUSH MH 2 Wash - User Manual
en version G, updated: Oct 23, 2020
en  629 KB Oct 23, 2020
RUSH MH 2 Wash - Bedienungsanleitung
de version D, updated: Oct 23, 2020
de  947 KB Oct 23, 2020
Illustrations
RUSH MH 2 Wash - Dimensions (2D Dwg)
en version A, updated: Oct 23, 2020
en  5.5 MB Oct 23, 2020
RUSH MH 2 Wash - Dimensions (PDF)
en version A, updated: Oct 23, 2020
en  2.25 MB Oct 23, 2020
Symbols
Vectorworks Symbols
en version 2.9, updated: Oct 22, 2020
2.9  en  373 MB Oct 22, 2020
CAD Drawings
RUSH MH 2 Wash - Horizontal (3DS)
en version A, updated: Oct 23, 2020
en  2.59 MB Oct 23, 2020
RUSH MH 2 Wash - Horizontal (3D DWG)
en version A, updated: Oct 23, 2020
en  4.11 MB Oct 23, 2020
RUSH MH 2 Wash - Vertical (3DS)
en version A, updated: Oct 23, 2020
en  2.59 MB Oct 23, 2020
RUSH MH 2 Wash - Vertical (3D DWG)
en version A, updated: Oct 23, 2020
en  4.07 MB Oct 23, 2020
Compliances
RUSH MH 2 Wash - EU Declaration of Conformity
en version B, updated: May 18, 2018
en  42 KB May 18, 2018
RUSH MH 2 Wash - ETL Listing Certificate
en version A, updated: May 18, 2018
en  170 KB May 18, 2018
Software
RUSH MH 2 -Software
en version 2.4, updated: Oct 22, 2020
2.4  en  93 KB Oct 22, 2020
RUSH MH 2 - Software
en version 2,5, updated: Oct 22, 2020
2,5  en  259 KB Oct 22, 2020
RUSH Uploader DMX-Tools
en version 1,1, updated: Oct 22, 2020
1,1  en  1.22 MB Oct 22, 2020
Service Notes
    Sep 22, 2017
Dead DMX and dead keyboard
en version A, updated: May 18, 2018
en  386 KB May 18, 2018
  743 KB Oct 22, 2020
Tech Notes
    Sep 22, 2017
Hints And Tips
Avoiding damage from sunlight and other light sources
en version B, updated: May 22, 2018
B   en    May 22, 2018
Firmware
RUSH MH 2 Wash - Firmware
version 2.5, updated: Oct 15, 2020
2.5     Oct 15, 2020
