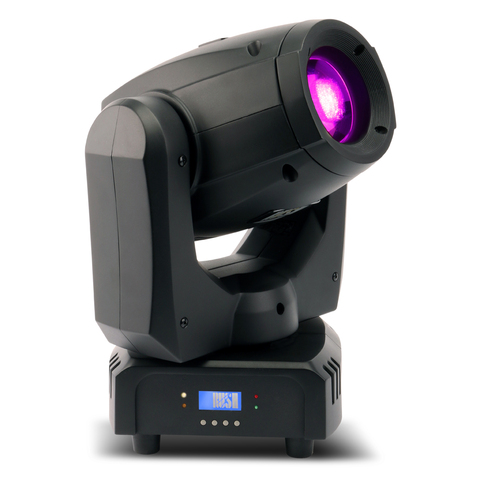

Martin RUSH MH 5 Profile

Physical Length: 290 mm (11.5 in.) Width: 187 mm (7.4 in.) Height: 416 mm (16.4 in.) Weight: 9 kg (19.9 lbs.)

Dynamic Effects Color wheel 1: 8 colors plus open, rotation with variable direction and speed Color wheel 2: 8 colors (incl. 1 x UV, 2 x CTC) plus open, rotation with variable direction and speed Rotating gobo wheel: 6 gobos plus open, wheel rotation and gobo rotation Static gobo wheel: 7 gobos plus open, wheel rotation and shake Prism: Indexing and rotation with variable direction and speed Electronic dimming: 0 - 100%, four dimming curve options Electronic shutter effect: Strobe effect, pulse effects, instant open and blackout Pan: 540° Tilt: 270° Pan and tilt speed: Adjustable via onboard control panel and DMX Focus: Motorized

Control and Programming Control options: DMX, stand-alone DMX channels: 16 Setting and addressing: Control panel with backlit LCD display Standalone trigger options: Music trig, auto trig Standalone sequences: 4 pre-programmed shows Music trig sensitivity: Adjustable Protocol: USITT DMX512/1990

Optics Light source: 75 W LED engine Minimum LED lifetime: 50,000 hours (to >70% luminous output)* Beam angle: 16° (one-tenth peak), 14° (half-peak) *Figure obtained under manufacturer's test conditions.

Photometric Data
* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.

Construction Housing: High-impact flame-retardant thermoplastic Color: Black Protection rating: IP20

Gobos Rotating gobo size: 24 mm (0.94 in.) Rotating gobo image size: 20 mm (0.79 in.)

Installation Mounting: One quarter-turn bracket for rigging clamp Location: Indoor use only, must be fastened to surface or structure Orientation: Any

Connections AC power in, thru: Neutrik PowerCon DMX data in/out: 3-pin and 5-pin locking XLR
Electrical AC power: 100-240 V nominal, 50/60 Hz Typical total power consumption: 165 W Power consumption figures are typical, not maximum. Allow for +/-10% variation.

Typical Power and Current 100 V, 60 Hz: 1.7 A, 165 W 230 V, 50 Hz: 0.8 A, 157 W Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.

Thermal Cooling: Forced air (temperature-regulated, low noise) Maximum ambient temperature (Ta max.): 40° C (104° F) Minimum ambient temperature (Ta min.): 0° C (32° F) Total heat dissipation (calculated, +/- 10%): 565 BTU/hr. (at full intensity, full white)

Environmental RoHS: Compliant REACH: Compliant WEEE: Compliant Proposition 65: Compliant

Approvals EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493 EU EMC: EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547 US safety: UL 1573 US EMC: 47 CFR Part 15 Class A Canadian safety: CSA C22.2 No. 166 Canadian EMC: ICES-003 Class A Australia/NZ: C-TICK N4241

Included Items Power cable, 1.5 m, without mains plug

Related Items Martin Companion Cable: P/N 91616091 Martin Companion Software Suite (including firmware uploader): Free download from www.martin.com

Accessories Power connectors:
Power Connector PowerCON Male: P/N 91611795
Power Connector PowerCON Female : P/N 91611794
Cables, 16 A, for connection to power in chains:
Power relay cable 3 x 2.5 mm2, H07RN-F POWCON-POWCON 1.2 m (3.9 ft.): P/N 91611798
Power relay cable 3 x 14 AWG, SJOOW POWCON-POWCON 1.2m (3.9 ft.): P/N 91610175
Power relay cable 3 x 2.5 mm2, H07RN-F POWCON-POWCON 2.5m (8.2 ft.): P/N 91611799
Power relay cable 3 x 14 AWG, SJOOW POWCON-POWCON 2.5m (8.2 ft.): P/N 91610176
Cables, 16 A, for power input:
Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 1.5 m (4.9 ft.): P/N 91611800
Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 1.5 m (4.9 ft.): P/N 91610177
Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 5.0 m (16.4 ft.): P/N 91611801
Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 5.0 m (16.4 ft.): P/N 91610178
(H07RN-F are European approved cables, SJOOW are US approved cables)
Installation hardware:
G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
Quick trigger clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
Half-coupler clamp: P/N 91602005
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007

Ordering Information RUSH MH 5 Profile™ in cardboard box: P/N 90280040
