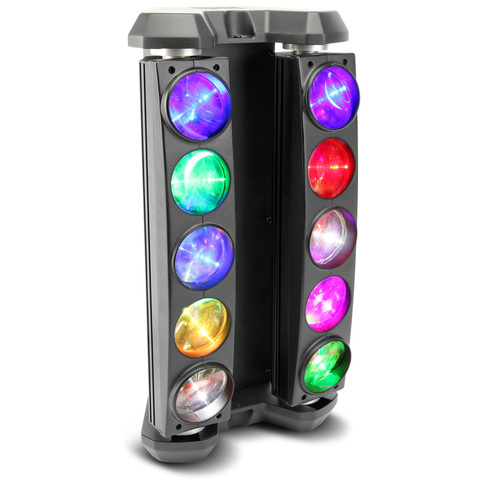

RUSH Multibeam 2 (discontinued)

Larger Images

The RUSH Multibeam 2 is a versatile effect light featuring two moveable LED bars each with 5 individually controllable narrow beams for powerful mid-air effects. It punches out 10 intense and narrow long-throw beams and features electronic dimming and strobe effect. Multibeam 2 comes with preprogrammed macros for easy effects, master / client function as well as DMX or sound activation.

  • Powerful and intense multibeam effect
  • 10 individually controllable 10 W RGBW LEDs
  • Two individually controllable bars

Features

  • Powerful and intense multi-beam effect
  • Two moveable bars with narrow long-throw beams
  • 10 individually controllable 10 W RGBW LEDs
  • Electronic dimming and variable strobe
  • Master / client function
  • Preprogrammed macros
  • DMX or sound activated
  • 3 & 5 pin XLR

Specifications

PhysicalLength: 473 mm (18.7 in.)Width: 248 mm (9.8 in.)Height: 164 mm (6.5 in.)Weight: 9.5 kg 21.0 lbs.)
Dynamic EffectsColor mixing: RGBWColor selection: 32 color presetsElectronic 'shutter' effect: Strobe effect, pulse effects, instant open and blackoutPre-programmed effects: 12 pre-programmed macros with adjustable speedElectronic dimming: 0 - 100%
Control and ProgrammingControl options: DMX, stand-alone, master/client DMX channels: 44Stand-alone trigger options: Music trig, auto trigSetting and addressing: Control panel with LCD displayProtocol: USITT DMX512/1990
OpticsLight source: 10 x 10 W RGBW Cree XM-L LEDsMinimum LED lifetime: 50 000 hours (to >70% luminous output)*Beam angle: *Figure obtained under manufacturer's test conditions
ConstructionColor: BlackHousing: High-impact flame-retardant thermoplasticProtection rating: IP20
InstallationMounting points: Two quarter-turn brackets for rigging clampsLocation: Indoor use only, must be fastened to surface or structureOrientation: Any
ConnectionsAC power in/thru: Neutrik PowerConDMX data in/out: 3-pin and 5-pin locking XLR
ElectricalAC power: 100-240 V nominal, 50/60 HzTypical total power consumption: 130 WPower consumption figures are typical, not maximum. Allow for +/-10% variation.
ThermalCooling: Forced air (temperature-regulated, low noise)Maximum ambient temperature (Ta max.): 40° C (104° F)Minimum ambient temperature (Ta min.): 0° C (32° F)Total heat dissipation (calculated, +/- 10%, at full intensity, full white): 450 BTU/hr.
ApprovalsEU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493EU EMC: EN 55015, EN 55103-1, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547US safety: UL 1573US EMC: 47 CFR Part 15 Class AAustralia/NZ: C-TICK N4241

Included ItemsPower cable 1.5 m
AccessoriesCables, 16 A, for connection to power in chainsPower input cable, 14 AWG, UL, SJT, 1.5 mm2, H05VV-F, with PowerCon input connector, 3 m (9.8 ft.): P/N 11541508Power relay cable, 14 AWG, UL, SJT, 1.5 mm2, H05VV-F, with PowerCon connectors, 1.4 m (4.6 ft.): P/N 11541509Power relay cable, 14 AWG, UL, SJT, 1.5 mm2, H05VV-F, with PowerCon connectors, 2.25 m (7.4 ft.): P/N 11541510Power relay cable, 14 AWG, UL, SJT, 1.5 mm2, H05VV-F, with PowerCon connectors, 3.25 m (10.7 ft.): P/N 11541511Power connectorsNeutrik PowerCon NAC3FCA power input connector, cable mount, blue: P/N 05342804Neutrik PowerCon NAC3FCB power output connector, cable mount, light grey: P/N 05342805Installation hardwareHalf-coupler clamp: P/N 91602005G-clamp (suspension vertically downwards only): P/N 91602003Quick-trigger clamp (suspension vertically downwards only):P/N 91602007
Related ItemsRUSH™ Software Uploader 1: P/N 91611399
Ordering InformationRUSH Multibeam 2™ in cardboard box: P/N 90480030

Downloads

  Version Language Size Uploaded
Specifications
RUSH Multibeam 2 Spec Sheet-English
en updated: Jul 09, 2018
  en  519 KB Jul 09, 2018
Manuals
RUSH Multibeam 2 - Manuel d'utilisation
fr version C, updated: May 18, 2018
fr  987 KB May 18, 2018
RUSH Multibeam 2 - User Manual
en version F, updated: Jun 30, 2020
en  1.21 MB Jun 30, 2020
RUSH Multibeam 2 - Bedienungsanleitung
de version C, updated: May 18, 2018
de  2.36 MB May 18, 2018
Illustrations
RUSH Multibeam Dimensions (PDF)
en version A, updated: May 18, 2018
en  753 KB May 18, 2018
RUSH Multibeam 2 Dimensions (DWG)
en version A, updated: May 18, 2018
en  1.32 MB May 18, 2018
3D Symbols
Vectorworks Symbols
en version 2.8, updated: Mar 05, 2020
2.8  en  265 MB Mar 05, 2020
Compliances
RUSH Multibeam 2 - ETL Listing Verification
en version A, updated: May 18, 2018
en  598 KB May 18, 2018
RUSH Multibeam 2 - EU Declaration of Conformity
en version A, updated: May 18, 2018
en  44.6 KB May 18, 2018
Software
RUSH Multibeam 2 - Software
en version V1.0, updated: May 12, 2018
V1.0  en  51.5 KB May 12, 2018
RUSH Uploader DMX - Tool
en version 1.1, updated: Aug 07, 2018
1.1  en  1.18 MB Aug 07, 2018
Service Procedures
Multibeam 2 Maintenance schedule
updated: May 18, 2018
    99.1 KB May 18, 2018
Service Notes
3D Partsfinder - Opening using Solid Works Composer Player
version 4, updated: Feb 13, 2020
  743 KB Feb 13, 2020
Tech Notes
Avoiding damage from sunlight and other light sources
updated: Sep 22, 2017
    Sep 22, 2017
Hints And Tips
Avoiding damage from sunlight and other light sources
en version B, updated: May 22, 2018
B   en    May 22, 2018
