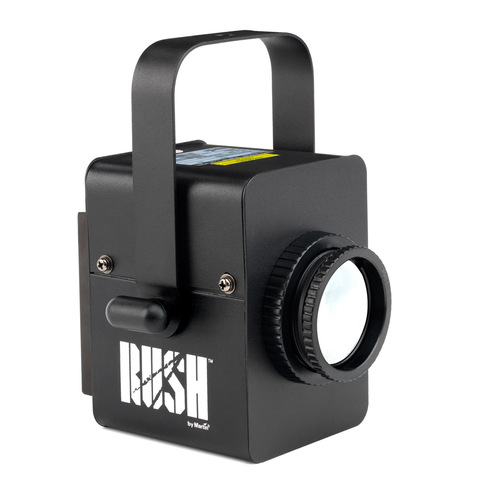

RUSH Pin 1 CW (discontinued)

Larger Images

This bright white-LED pin spot comes with two beam options for greater flexibility of coverage. Totally silent with an easy-to-adjust bracket, it works as the ideal mirror ball spot light or decorative table spot.

Features

  • Bright white LED pin spot
  • 2 beam options
  • Flexible, adjustable bracket
  • Ideal mirror ball spot or table spot
  • Totally silent

Specifications

PhysicalLength: 142 mm (5.6 in.)Width: 159 mm (6.3 in.)Height: 184 mm (7.3 in.)Weight: 1.1 kg (2.5 lbs.)
OpticsLight source: 10 W Cree multi-chip cool white LEDBeam angle: 7° or 11°Minimum LED lifetime: 50 000 hours (to >70% luminous output)**Figure obtained under manufacturer's test conditions
ConstructionHousing: SteelColor(s): BlackProtection rating: IP20
InstallationMounting: Adjustable bracket, surface or truss mountOrientation: AnyLocation: Indoor use only
ConnectionsAC power input: 1.5 m cable tail w/o power plug
ElectricalAC power: 100-240 V nominal, 50/60 HzTypical total power consumption: 10 WPower consumption figures are typical, not maximum. Allow for +/-10% variation.
Typical Power and Current110 V, 60 Hz: 0.15 A, 10 W230 V, 50 Hz: 0.1 A, 10 WMeasurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.
ThermalCooling: ConvectionMaximum ambient temperature (Ta max.): 40° C (104° F)Minimum ambient temperature (Ta min.): 0° C (32° F)Total heat dissipation (calculated, +/-10%, at full intensity): 35 BTU/hr.
ApprovalsEU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493EU EMC: EN 55015, EN 55103-1, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547US EMC: FCC Part 15 Class ACanadian EMC: ICES-003 Class AAustralia/NZ: C-TICK N4241

Included ItemsMounting bracket
Ordering InformationRUSH Pin 1 CW™ in cardboard box: P/N 90480010

Downloads

  Version Language Size Uploaded
Specifications
RUSH Pin 1 CW Spec Sheet-English
en updated: Jul 09, 2018
  en  359 KB Jul 09, 2018
Manuals
Manuel d´utilisation
fr version B, updated: May 18, 2018
fr  113 KB May 18, 2018
User manual
en version B, updated: May 18, 2018
en  286 KB May 18, 2018
Bedienungsanleitung
de version B, updated: May 18, 2018
de  372 KB May 18, 2018
Illustrations
RUSH Pin 1 CW - Dimensions (PDF)
en version A, updated: May 18, 2018
en  540 KB May 18, 2018
RUSH Pin 1 CW - Dimensions (2D Dwg)
en version A, updated: May 18, 2018
en  1.14 MB May 18, 2018
3D Symbols
Vectorworks Symbols
en version 2.8, updated: Mar 05, 2020
2.8  en  265 MB Mar 05, 2020
CAD Drawings
RUSH PIN 1 CW, 3D (DWG)
en version A, updated: May 18, 2018
en  1.55 MB May 18, 2018
Compliances
RUSH Pin 1 CW - EU Declaration of Conformity
en version A, updated: May 18, 2018
en  37.7 KB May 18, 2018
Tech Notes
Avoiding damage from sunlight and other light sources
updated: Sep 22, 2017
    Sep 22, 2017
Hints And Tips
Avoiding damage from sunlight and other light sources
en version B, updated: May 22, 2018
B   en    May 22, 2018
