Stage Cyclo (discontinued)

Stage Cyclo
Larger Images

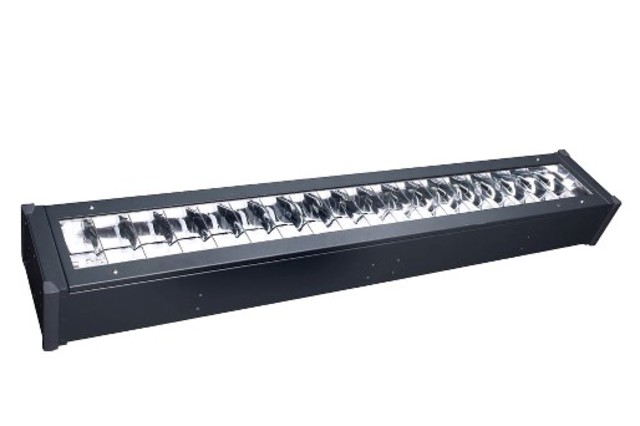

The Stage Cyclo is an RGB, fluorescent color-changing luminaire that provides soft, even illumination for stage applications. Simple to use, powerfully bright and absolutely noiseless, the Stage Cyclo is also ideal for TV studio and theater sets.

Features

  • High output 54 W T5 fluorescent tubes in red, green, blue and white
  • Long lamp life (20 000 hrs)
  • RGB + W color mixing
  • 0-100% intensity control
  • High optical performance: uniform distribution of light and color
  • Silent operation
  • Choice of frost lenses and barndoor accessories
  • 3 and 5 pin XLR and RJ45 sockets
  • Versatile mounting options
  • Tough construction, easy to handle

Specifications

Physical Length: 1272 mm Width: 209 mm Height: 135 mm Weight: 10.5 kg
Dynamic Effects Color mixing: RGBW Red: 0 - 100% Green: 0 - 100% Blue: 0 - 100% Cool daylight white (6500 K): 0 - 100%
Control and Programming Control options: DMX, stand-alone, synchronized (host/client) DMX channels: 4 DMX address setting: DIP switch Stand-alone and host/client programming: DIP switch Protocol: USITT DMX512/1990 Receiver: RS-485
Lamp Type: T5 fluorescent tubes Approved lamps: Osram FQ 54 W HO Average lifetime: 20 000 hours Socket: G5
Construction Housing: Steel with rubber corner protectors Color(s): Gunmetal Front cover: Scratch-resistant polycarbonate Reflector(s): High specular 99.9% aluminum Protection rating: IP20
Installation Mounting points: 1/4-turn locks on top, bottom, back and sides Retractable & adjustable support rods for floor or surface mounting: Orientation: Any Minimum free space: 25 mm
Connections AC power input: Neutrik PowerCon DMX data in/out: 3-pin and 5-pin locking XLR, RJ-45
Electrical AC power: US model 100-120 V nominal, 60 Hz, EU model 208-240 V nominal, 50/60 Hz Main fuse: US model 2.5 AT, EU model 2.0 AT (both slow blow)
Typical Power and Current 100 V, 60 Hz: 218 W, 2.2 A, PF 0.998 120 V, 60 Hz: 235 W, 2.0 A, PF 0.999 208 V, 60 Hz: 235 W, 1.2 A, PF 0.993 230 V, 50 Hz: 234 W, 1.1 A, PF 0.988 240 V, 50 Hz: 233 W, 1.0 A, PF 0.986 Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:
Thermal Cooling: Convection Maximum ambient temperature (Ta max.): 40° C Minimum ambient temperature (Ta min.): -20° C Total heat dissipation (calculated, +/- 10%): 740 BTU/hr.
Approvals US safety: UL 1573 Canadian safety: CSA C22.2 No. 166 EU safety: EN 60598-1, EN 60598-2-17 EU EMC: EN 55015, EN 60555-3
CE ETL C US Intertek
Included Items Osram T5 FQ 54 W/60 HO red tube: 97020006 Osram T5 FQ 54 W/66 HO green tube: 97020007 Osram T5 FQ 54 W/67 HO blue tube: 97020008 Osram T5 FQ 54 W/865 HO 6500 K daylight white tube: 97020011 User manual: 35000167
Accessories Adjustable mounting bracket: 91611206 Barndoors Kit: 91611234 Osram T5 FQ 54 W/827 HO 2700 K warm white tube: 97020009 Osram T5 FQ 54 W/840 HO 4000 K cool white tube: 97020010 DMX termination plug, 3-pin male XLR: 91613017 DMX termination plug, RJ-45: 91613028 Omega bracket: 91602001
Spare Parts 2 AT main fuse: 05020009 2.5 AT main fuse: 05020010 Osram T5 FQ 54 W/60 HO red tube: 97020006 Osram T5 FQ 54 W/66 HO green tube: 97020007 Osram T5 FQ 54 W/67 HO blue tube: 97020008 Osram T5 FQ 54 W/865 HO 6500 K daylight white tube: 97020011
Ordering Information Stage Cyclo EU model (208-240 V): 90350000 Stage Cyclo US model (100-120 V): 90350100
