VC-Grid 30

Creative LED Video tile with 30mm pixel pitch

Larger Images

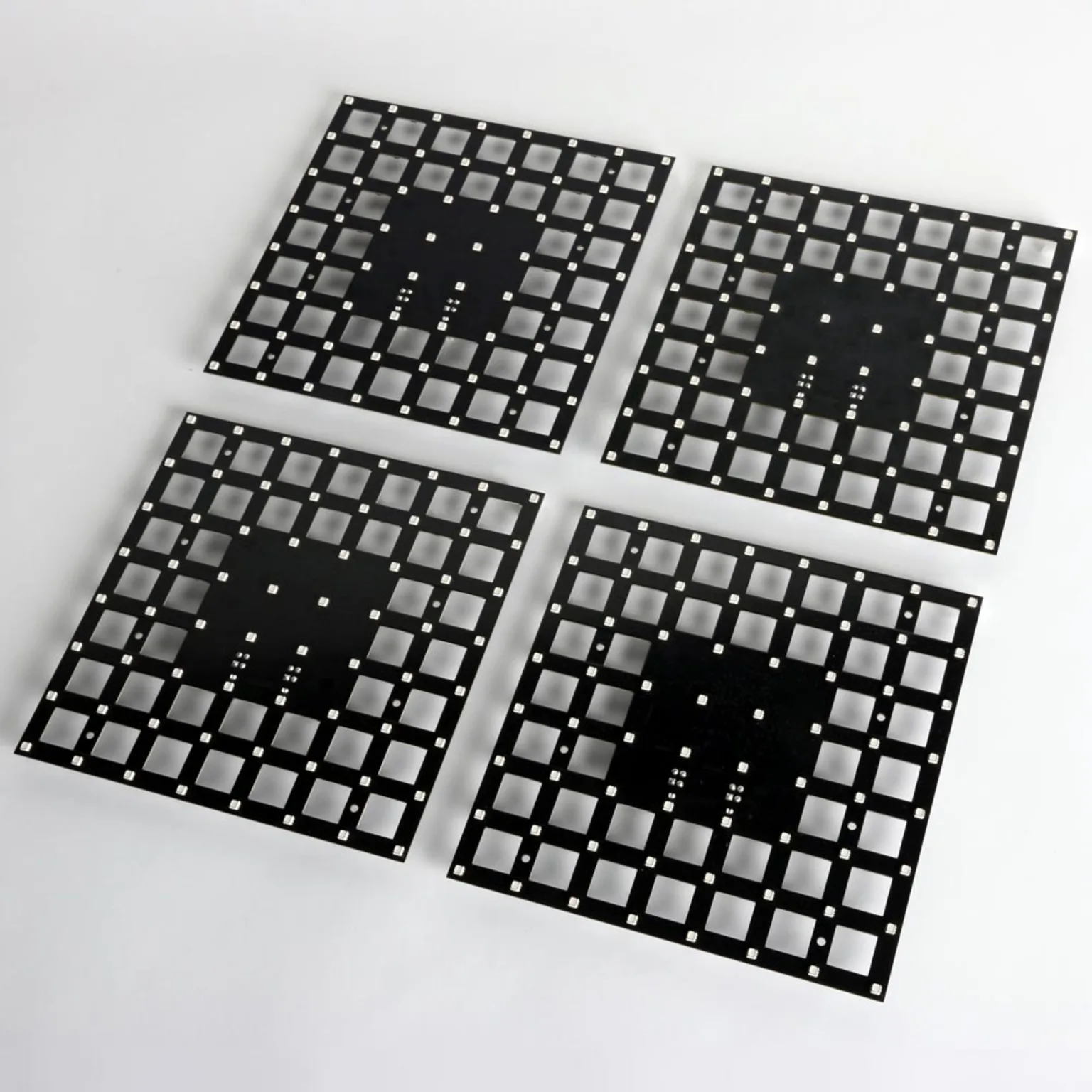

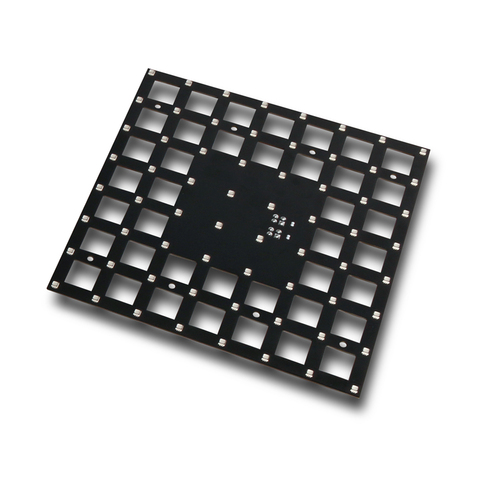

The VC-Grid 30 is a small, 240 x 240 mm LED video module with a 30 mm pixel pitch. Useful in creating customized LED video solutions with maximum artistic flexibility and a minimum of effort, the VC-Grid’s compact size makes it extremely suitable for integration into stage designs, set elements, creative ceilings, lobbies and much more. Used with or without a front diffuser, multiple VC-Grids can be combined in a countless variety of ways for ultimate design freedom. A combined power/data cable allows VC-Grids to be daisy-chained for easy setup and less cabling.

  • Wide range of pixel pitches to suit every application
  • Easy cabling, mapping and configuration
  • Bright and fully calibrated for optimal consistency

Videos

Perfect white light with Martin Creative LED solutions



Mixing P3 Video and DMX for Creative Control—P3 lifehack#6



P3 Directly from Green Hippo Media Server—P3 lifehack#5



P3 Live Preview and Flexible Video Mapping—P3 lifehack#3



Fast Deployment of Pre-Made Map on P3—P3 lifehack#2



Features

  • 64 individually controllable pixels
  • 30 mm pixel pitch
  • 2750 nits of brightness
  • High-quality 16-bit per color image processing technology
  • Pixel-level brightness and color calibration for optimal image quality
  • P3/DMX controllable (automatic protocol detection)
  • Intuitive mapping and addressing via P3 System Controller
  • Combined power/data input (single cable for power and data input)
  • Combined power/data thru (to daisy-chain up to 12 VC-Grid 30s)
  • Supported by integrated power and data processor (P3 PowerPort 1500) and simple cabling system

Specifications

  • Physical Length: 240 mm (9.5 in.) * Width: 240 mm (9.5 in.) * Height: 15 mm (0.6 in.) Weight: 157 g (0.35 lbs.) *Including 20 mm (0.8 in.) board-to-board gap
    Control and Programming Control options: Martin P3 System Controller™ via Martin P3 PowerPort 1500™ and/or DMX Control modes: Pixel and module Control resolution: 16-bit (P3) or 8-bit (DMX) control of each color Protocol detection: Automatic Setting and addressing: P3 System Controller or RDM-compliant controller DMX channels (RGB): 192 (pixel mode) or 3 (module mode) Color and intensity calibration: Pixel-level DMX compliance: USITT DMX512-A RDM compliance: ANSI/ESTA E1.20 Firmware update: Via P3 System Controller
    Control/User Interface Device status: Multi-color visual indication Device test and reset: Pushbutton to call up local test patterns and reset device
    Optics Minimum LED lifetime: 50,000 hours (to >70% luminous output)* *Figure obtained under manufacturer's test conditions.
    Photometric Data Pixels: 64 per module Luminous intensity, calibrated mode: 2750 Nit Viewing angle: 120° x 120° Preliminary data, figures are approximate
    P3 Video Processing Color Resolution: 16 bits per color (48 bit per pixel) Color Temperature Control: 2000K-11000K Synchronization: System-wide Frame Rate: Up to 75 frames/sec Brightness Control: 0-100% (at full color resolution) Gamma Correction: Fully controllable Gamma Control: Fully controllable Color Gamut Control: Fully controllable LED aging correction: Built-in
    Construction Base: Black FR4 circuit board Transparency through module (unmasked area): 44% Protection rating: IP20 RoHS compliant
  • Installation Mounting: Mounting holes in module Orientation: Any Maximum number of VC-Grid™ 8x8 30 modules per daisy-chain: 12
    Connections Power & data input: 4-pin Molex connector Power & data thru: 4-pin Molex connector
    Electrical Nominal input voltage: 48 VDC from Martin P3 PowerPort 1500™ or external PSU Peak power consumption (at full intensity, full white): 30 W Typical power consumption (with typical video content): 10 W Figures for typical video content are indicative only and will vary.
    Thermal Cooling: Convection Maximum ambient temperature (Ta max.): 45° C Minimum ambient temperature (Ta min.): -20° C Peak heat dissipation (calculated, at full intensity, full white): 105 BTU/hr. Typical heat dissipation (calculated, with typical video content): 35 BTU/hr. Figures for typical video content are indicative only and will vary.
    Approvals EU safety: EN 60950 EU EMC: EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3 US safety: ANSI/UL 60950-1 Canadian safety: CSA C22.2 No. 60950-1
    Accessories VC-Grid 15/30/60 Mounting Frames, set of 10: P/N 91611560 Input cables:

    Power+Data Adapter XLR4-PCB, 0.25 m (0.9 ft.): P/N 91616035
    Power+Data Adapter XLR5+Power-XLR4, 0.25 m (0.9 ft.): P/N 91616037
    Power+Data Adapter XLR5+XLR4-XLR4, 0.25 m (0.8 ft.): P/N 91616038
    Power+Data Adapter XLR5+Tripi-XLR4, 0.25 m (0.9 ft.): P/N 91616039

    VC-Grid to VC-Grid link cables:

    Power+Data Cable PCB-PCB, 200 mm (7.9 in.): P/N 91616025
    Power+Data Cable PCB-PCB, 400 mm (15.8 in.): P/N 91616026
    Power+Data Cable PCB-PCB, 600 mm (23.7 in.): P/N 91616027
    Power+Data Cable PCB-PCB, 800 mm (31.5 in.): P/N 91616028
    Power+Data Cable PCB-PCB, 1000 mm (39.4 in.): P/N 91616029

    Extension cables:

    Power+Data Cable XLR4-XLR4, 1 m (3.3 ft.): P/N 91616030
    Power+Data Cable XLR4-XLR4, 2.5 m (8.2 ft.): P/N 91616031
    Power+Data Cable XLR4-XLR4, 5 m (16.4 ft.): P/N 91616032
    Power+Data Cable XLR4-XLR4, 10 m (32.8 ft.): P/N 91616033
    Power+Data Cable XLR4-XLR4, 25 m (82.1 ft.): P/N 91616034

    Output/throughput cables:

    Power+Data Adapter PCB-XLR4, 0.25 m (0.9 ft.): P/N 91616036
    Power+Data Adapter XLR4-XLR5, 0.25 m (0.9 ft.): P/N 91616040

    Cable without connectors:

    Power+Data Cable, Rental, 100 m (328.1 ft.): P/N 91616045
    Power+Data Cable, Install CMX, 100 m (328.1 ft.): P/N 91616060
    Power+Data Cable, Install LSZH, 100 m (328.1 ft.): P/N 91616017

    Related Items Martin P3™ PowerPort 1500: P/N 90721040 Martin™ IP66 PSU 240 W external power supply unit: P/N 90760330 Martin P3-050™ System Controller: P/N 90721090 Martin P3-150™ System Controller: P/N 90721015 Martin P3-300™ System Controller: P/N 90721060 Martin P3-PC™ System Controller: P/N 90721030
    Ordering Information VC-Grid™ 8x8 30 RGB: P/N 90357550 (to be ordered in multiples of 4)
