Alien 02 Spot
Discontinued

Alien 02 Spot
Larger Images

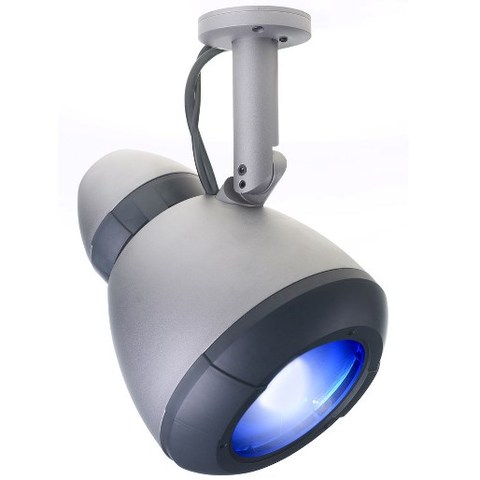

The Alien 02 is a new concept in lighting design, a programmable architectural light with full range color mixing. Modular and compact, the Alien 02 features a CDM 150 discharge lamp, full range intensity control and subtractive CMY color mixing.

Features

  • CDM-150 SA/T lamp
  • Compact and powerful
  • Easy maintenance
  • Full range intensity control
  • Full spectrum color mixing
  • Low noise operation
  • Multiple lens options
  • Remote base

Specifications

Physical Length: 312 mm + mounting arm 135 mm Width: 235 mm Weight: 3.3 kg + mounting arm 0.7 kg
Dynamic Effects Color mixing: CMY Cyan: 0 - 100% Magenta: 0 - 100% Yellow: 0 - 100% Dimmer: 0 - 100%
Control and Programming Required control hardware: 150 W Single Base or 150 W Double Base Control options: DMX, stand-alone, synchronized (host/client) DMX channels: 7 Stand-alone memory: 20 scenes Setting and addressing: Display, infrared remote Protocol: USITT DMX512/1990 Receiver: RS-485
Lamp Type: 150 W metal halide Approved lamps: Philips CDM-SA/T 150, GE CMH 150 Socket: G12 Control: Automatic and/or remote on/off
Construction Housing: Aluminum and plastic Base: Aluminum
Installation Required installation hardware: Alien 02 Spot Mounting Arm Orientation: Any Aiming: +/- 50° tilt, 360° rotation Minimum distance to combustible materials: 1 m Minimum distance to illuminated surfaces: 0.5 m Max. cable separation between lamp and Base: 16 m
Connections Power connection to Base: 1 m cable tail with 3-pin IEC male connector Control data connection to Base: 1 m cable tail with 25-pin male multi-connector
Electrical AC power: Supplied via Base unit that accepts 100/120/208/230/250 V, 50/60 Hz
Typical Power and Current One Alien 02 and one 150 W Single Base, combined: 100 V, 60 Hz: 220 W, 2.8 A 120 V, 60 Hz: 205 W, 1.8 A 208 V, 60 Hz: 190 W, 1.0 A 230 V, 50 Hz: 193 W, 0.9 A 250 V, 50 Hz: 208 W, 1.0 A Two Alien 02s and one 150 W Double Base, combined: 100 V, 60 Hz: 408 W, 4.3 A 120 V, 60 Hz: 410 W, 3.5 A 208 V, 60 Hz: 378 W, 2.0 A 230 V, 50 Hz: 393 W, 1.9 A 250 V, 50 Hz: 412 W, 1.9 A
Thermal Maximum ambient temperature (Ta max.): 40° C Maximum surface temperature, steady state, Ta=40° C: 80° C Cooling: Filtered forced air (temperature-regulated)
Typical Heat Output (calculated) One Alien 02 and one 150 W Single Base, combined: 750 BTU/hr. Two Alien 02s and one 150 W Double Base, combined: 1400 BTU/hr.
Approvals US safety: UL 153 Canadian safety: CSA C22.2 EU safety: EN 60598-2-17 + Corr. A2 EU EMC: EN 55 015, EN 55 103-1, EN 61 547
CE ETL C US Intertek
Included Items Philips CDM-SA/T 150 W lamp (installed): 97010111 3 m power cable, 3-pin IEC: 11501013
Accessories 21° Fresnel lens (gives Medium beam angle): 91610022 41° x 46° beamshaper lens: 91610023 42° Micro lens diffuser (gives Very Wide beam angle): 91610024 Barn door kit: 91611057 Glare control kit: 91611066 2 m cable extension kit: 91611051 5 m cable extension kit: 91611060 10 m cable extension kit: 91611061
Spare Parts Philips CDM-SA/T 150 W lamp: 97010111
Ordering Information Alien 02 Spot, 38°, Aluminum: 90345000 Alien 02 Spot 135 mm mounting arm: 91611048 150 W Single Base: 90724000 150 W Double Base: 90724200 Alien 02 Recessed Base, white: 90724102 Alien 02 150 W Spot for Recessed Base, white: 90345002
