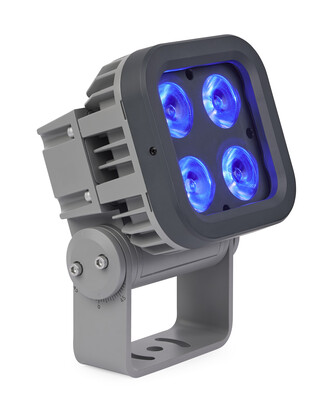

Exterior Wash Pro S QUAD

Outdoor-rated QUAD color wash light with creative control

Exterior Wash Pro S QUAD
صور أكبر

Engineered for harsh conditions and creativity, Exterior Wash Pro S QUAD provides a logical, user-friendly and versatile lighting solution designed to illuminate smaller structures, features of a building and landscaping. Featuring external micro lenses and an optional baffle snoot, this fixture provides configurable beam control. The Exterior Wash Pro S QUAD features unparalleled color performance. The factory color calibration ensures superior color consistency and provides a dedicated color temperature control channel spanning from 1000K to 12,500K, precisely following the black-body curve. The integrated color boost technology encompassing smart ratio between LED capacity and PSU capacity results in saturated and mixed colors up to three times brighter than previous models. Designed for permanent outdoor installations and backed by a 5-year warranty, this fixture meets rigorous environmental standards.

  • APPEALING DESIGN WITHIN A COHESIVE PRODUCT LINE

    Choose from four sizes and lumen output packages that accommodate with integrated baffle snoot option for added versatility.

  • PRECISE BEAM CONTROL

    Achieve precise light control and high intensity, while minimizing stray light in long-range applications, thanks to a narrow beam angle.

  • UNPARALLELED COLOR PERFORMANCE

    Aesthetically pleasing appearance with seamless color mixing and color boost for up to 3 times brighter saturated and mixed colors.

  • SOPHISTICATED COLOR CONTROL

    Includes a dedicated control channel with a user-selectable default color temperature from a warm 1000K up to a cold 12,500 Kelvin temperature, which follows the black body curve.

  • SMART CONTROL

    Easy local diagnostics and focusing using the integrated magnetic sensor. Easy configuration and stand-alone programming via Martin Companion.

  • RESPONSIBLE CHOICE

    Durable design for permanent outdoor installations, backed by a 5-year warranty, and meet rigorous environmental standards. Their compact, lightweight design minimizes environmental impact and shipping costs, they are fully repairable, and ship in full cardboard FSC-certified packaging.

featured content

APPEALING DESIGN WITHIN A COHESIVE PRODUCT LINE

Choose from four sizes and lumen output packages that accommodate with integrated baffle snoot option for added versatility.

featured content

PRECISE BEAM CONTROL

Achieve precise light control and high intensity, while minimizing stray light in long-range applications, thanks to a narrow beam angle.

featured content

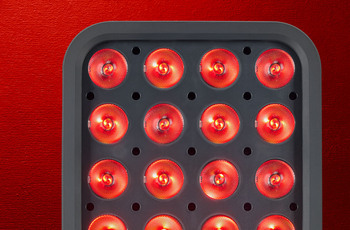

UNPARALLELED COLOR PERFORMANCE

Aesthetically pleasing appearance with seamless color mixing and color boost for up to 3 times brighter saturated and mixed colors.

featured content

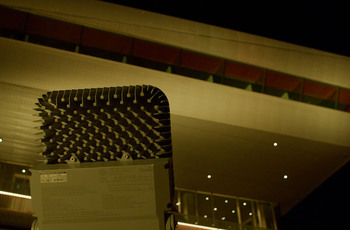

SOPHISTICATED COLOR CONTROL

Includes a dedicated control channel with a user-selectable default color temperature from a warm 1000K up to a cold 12,500 Kelvin temperature, which follows the black body curve.

featured content

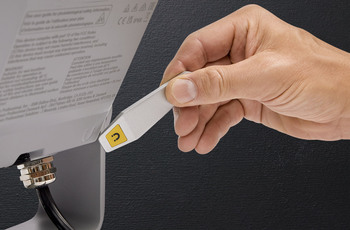

SMART CONTROL

Easy local diagnostics and focusing using the integrated magnetic sensor. Easy configuration and stand-alone programming via Martin Companion.

featured content

RESPONSIBLE CHOICE

Durable design for permanent outdoor installations, backed by a 5-year warranty, and meet rigorous environmental standards. Their compact, lightweight design minimizes environmental impact and shipping costs, they are fully repairable, and ship in full cardboard FSC-certified packaging.

الفيديوهات





الميزات

  • Logic family of four sizes and lumen packages (S, M, L, XL)
  • Compact and slim design
  • Superior color consistency based on factory calibration
  • Color boost for bright saturated and mixed colors
  • Dedicated color temperature control channel
  • Narrow beam-angle using high-power RGBW LEDs
  • Optional baffle snoot
  • Externally mounted micro lens diffusers
  • RDM and DMX control
  • Local diagnostics and focusing via magnetic sensor
  • Power and DMX IN/OUT pre-mounted cables
  • Optional Hybrid IN/Out cable solution for easy daisy-chain
  • Fully weatherized housing (IP66, IK08 and C-5 High corrosion rating)
  • Shipped in FSC certified carboard packaging
  • 5-year warranty

المواصفات

  • Physical Length: 141 mm (5.55 inch.) Width: 155 mm (6.10 inch.) Height: 236 mm (9.29 inch.) Weight: 4.4 kg (9.7 lbs)
    Dynamic Effects Strobe: Regular and random strobe (in extended mode) Intensity: 0 - 100 % continuous dimming Color mixing: RGB + CTC (Color Temperature Control) Color temperature control: 1000 K - 12500K in 50K steps
    Control and Programming Control systems: DMX, RDM User interface: Magnetic sensor for local diagnostics and focusing Stand-alone control: Up to 20 scenes with individual fade/hold times Control resolution: 8-bit DMX control of each color Dimmer Resolution: 16-bit DMX control of intensity DMX channels: 6/3/7/4 (Standard/Basic/Extended/Raw) DMX compliance: USITT DMX512/1990 RDM compliance: ANSI/ESTA E1.20 DMX/RDM Transceiver: Galvanic-isolated RS-485 Firmware update: Serial upload via DMX link
    Optics

    Light source: 4 x RGBW LEDs
    Total LED power: 160 W (4 x 40 W )
    Minimum LED lifetime: 100 000 hours (to > 70% luminous output)*
    LED manufacturer: Osram
    Binning: Tight color and flux binning
    Calibration: Full Gamut Color Calibration (1 step MacAdam ellipse)
    *Figure obtained under manufacturer's test conditions at Ta = 25° C.

    Beam Angle Options Native beam angle: 8° Narrow micro lens: 10° Medium micro lens: 16° Wide micro lens: 30° Very Wide micro lens: 54° Asymmetric micro lens: 9° x 56°
    Photometric Data CRI (Color Rendering Index) : > 70 CCT: 1000K - 12500K (Default 4000K)
    LUMINOUS OUTPUT* 2400K: 900 lm 4000K: 1200 lm 6500K: 1800 lm Full Output: 1800 lm Red: 620 lm Green: 1320 lm Blue: 470 lm * All Photometric Data measured in steady state (30 minutes warm-up time) at 25 °C ambient.
    Construction Housing: Cast Aluminum Color: Traffic grey RAL 7042 or Traffic white RAL 9016 - other colors available on request Surface treatment: Anodized and electrostatic powder-coated Protection rating: IP66 Effective Projected Area (EPA): 0.026 m² / 0.038 m² Impact resistance: IK08 Corrosion resistance: C5 High (ISO 12944-6) Vibration resistance: 1.0g, Sinusoidal (IEC 60068-2-6), 0,7g RMS Random (IEC 60068-2-64), 3.0g (ANSI C136-31)
  • Installation Mounting: Adjustable bracket Orientation: Any Minimum distance to illuminated surfaces: 0.1 m (0.3 ft.)
    Connections Power connection: 2 m (6.5 ft.) cable tail open ended Power input cable type, EU models: H07RN-F 3G 1.0 mm², 450/750V, VDE   Power input cable type, US models: PVC SJTW 3 x 1.31 mm² (16AWG) 105° C 300 V VW-1 Data connection: 2 m (6.5 ft.) open ended 6-conductor combined In/Out cable tail Hybrid power/data cables (in & thru) 8-pin custom connectors available on request
    Electrical AC power: 100 - 240 / 277 V nominal, 50/60 Hz Power supply unit: Auto-ranging electronic switch-mode Typical half-cycle RMS inrush current: 12 A Surge protection: 4 KV Max earth leakage: 0.5 mA Power factor: 0.99 @110 V / 120 V, 0.94 @208 V / 230V, 0.92 @277 V Max current draw: 0.35 A @100 V, 0.29 A @120 V, 0.15 A @230 V, 0.13 A @277 V
    Power Consumption Maximum Power Consumption: 35 W (Reduced mode 28W)* Idle: 2.0 W* * Measurements made at nominal voltage. Allow for a deviation of +/- 10%. Idle: all LEDs at zero intensity
    Thermal Cooling: Convection Maximum ambient temperature: 45° C (113° F)* Minimum ambient temperature: -30° C (-22° F)** Total heat dissipation (calculated, +/- 10%): 119 BTU/hr *Above this temperature, the fixture regulates output to protect from overheating.
    **Power must be maintained below -20° C (-4° F)
    Environmental RoHS: Compliant REACH: Compliant WEEE: Compliant Proposition 65: Compliant Packaging: FSC certified cardboard inlay and outer box Efficacy (max output): 51 lm/W LWR*: 409 lm/kg (186 lm/lb)*
    *LWR = Lumen-to-Weight Ratio
    Approvals Global CB Certification/IECEE: IEC 60598-2-5 (IEC 60598-1) EU safety: EN 60598-2-5 (EN 60598-1), EN 62493 EU EMC: EN 55015, EN 55032, EN55035, EN 61547, EN 61000-3-2, EN 61000-3-3 US safety: ANSI/UL 1598 US EMC: 47 CFR Part 15 Class B Canadian safety: CSA C22.2 No. 250.0 Canadian EMC: ICES 003(B), ICES 005(B) Australia/NZ: RCM United Kingdom: UKCA India: BIS IS 10322(Part5/section5) Korea: KS C 9832, KS C 9835
    Ordering Information - Fixtures Exterior Wash Pro S QUAD, EU, grey: P/N MAR-90590001 Exterior Wash Pro S QUAD, US, grey: P/N MAR-90590005 Exterior Wash Pro S QUAD, EU, white: P/N MAR-90590101
    Ordering Information - Accessories Micro Lens Pro S - Narrow: P/N MAR-90590026 Micro Lens Pro S - Medium: P/N MAR-90590027 Micro Lens Pro S - Wide: P/N MAR-90590028 Micro Lens Pro S - Very Wide: P/N MAR-90590029 Micro Lens Pro S - Asymmetric: P/N MAR-90590030 Baffle Snoot Pro S QUAD: P/N MAR-90590017 Hybrid PD cable tail In/Out 0.5 m, black: P/N MAR-91700020 Attachment plate for safety wire: P/N MAR-90590050 Hybrid PD cable tail In/Out 0.5 m, white: P/N MAR-91700022 Exterior Multitool: P/N MAR-90590025 Junction Box Power DMX to PD: P/N MAR-91700019
